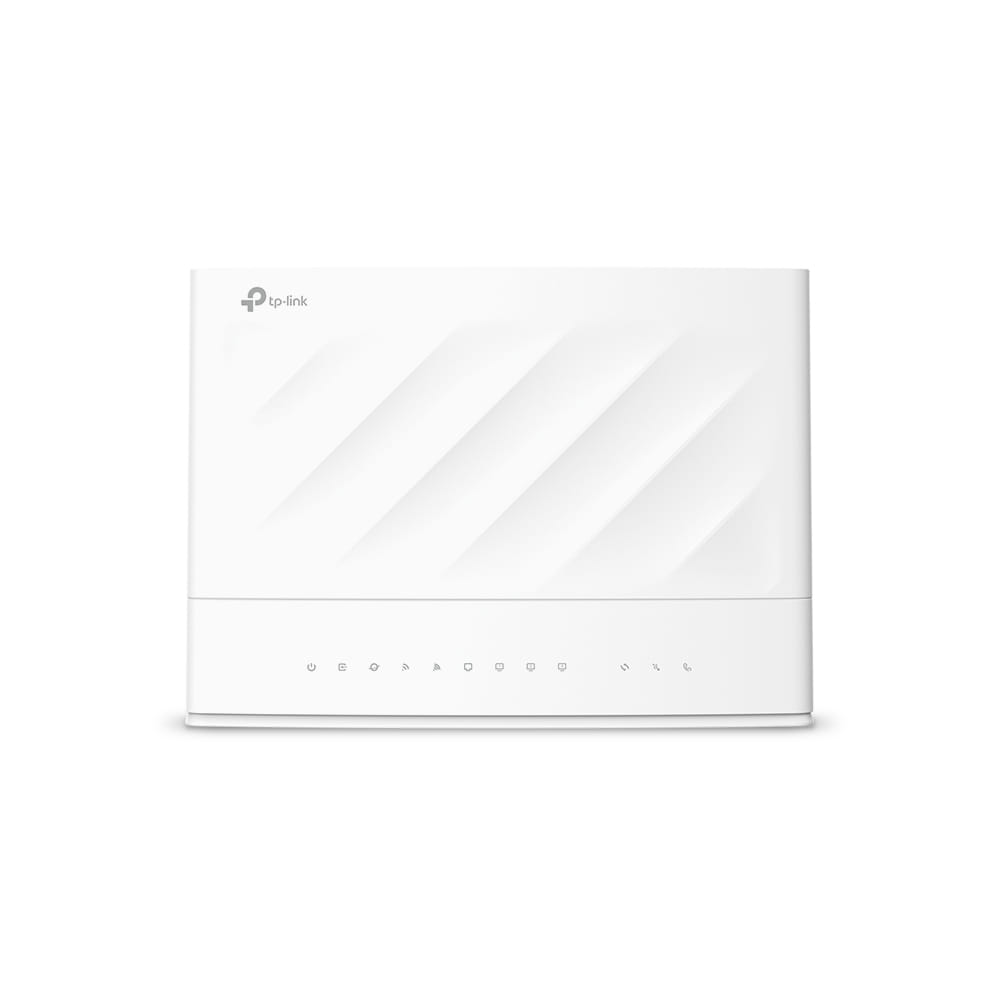

TP-Link AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL VoIP NBN Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type	RJ-11/RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.	1024-QAM

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Port forwarding
Port triggering
Dynamic DNS (DDNS)
Wireless radio
VPN tunnels quantity	16
VPN support	OpenVPN, PPTP VPN, IPSec VPN

DSL features
ADSL
ADSL2
ADSL2+
VDSL2

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
RJ-11 ports quantity	2
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Quality of Service (QoS) support
Reset button
WPS push button
MU-MIMO technology

Security
NAT functionality	NAT Forwarding

Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4, IPv6

Design
Product colour The colour e.g. red, blue, green, black, white.	White
Wall mountable The product can be mounted on (attached to ) a wall.
Indication light
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Tabletop router

Packaging content
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included
Quick installation guide

Antenna
Antenna design	Internal

Power
Power source type What the power source is.	DC
Output voltage	12 V
Output current	2 A
External power adapter

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.
Mac compatibility Product can be used with Apple Mac software and/or hardware.

Weight & dimensions
Width The measurement or extent of something from side to side.	199.7 mm
Depth The distance from the front to the back of something.	148.6 mm
Height The measurement of the product from head to foot or from base to top.	67.5 mm

Packaging data
Number of products included The number of products that are included in the package.	1 pc(s)
