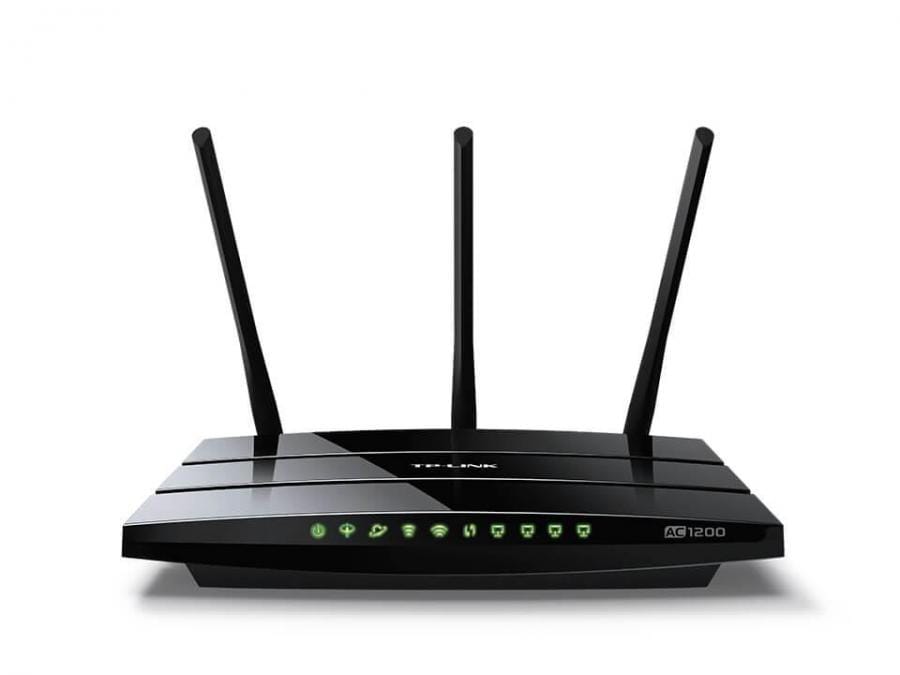

TP-Link Archer VR400 AC1200 Wireless VDSL/ADSL NBN Ready Modem Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type	RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	450 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Port forwarding
Dynamic DNS (DDNS)
Static route
VPN tunnels quantity	10
VPN Passthrough
VPN support	PTP, L2TP, IPSec Passthrough

Mobile network
3G Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV.
4G Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing.

DSL features
ADSL
ADSL2
ADSL2+
VDSL2

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	5
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
Memory card slot(s) Places where memory cards are placed inside and connected to the computer motherboard.
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Quality of Service (QoS) support
Reset button
WPS push button

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Firewall
Guest access
Access Control List (ACL)
Filtering
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
DMZ support

Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Universal Plug and Play (UPnP)
Management protocols	SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4, IPv6

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Wall mountable The product can be mounted on (attached to ) a wall.
Indication light
LED indicators	LAN,Power,WLAN
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Tabletop router

Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	External
Antennas quantity	3
Detachable antenna(s)

Features
Certification	CE, RoHS

Power
Power source type What the power source is.	AC
Output voltage	12 V
Output current	1.5 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.

Weight & dimensions
Width The measurement or extent of something from side to side.	243.5 mm
Depth The distance from the front to the back of something.	167.5 mm
Height The measurement of the product from head to foot or from base to top.	32.7 mm

Packaging data
Cables included	LAN (RJ-45)
AC adapter included
Manual
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Package type The type of product package e.g. box.	Box
