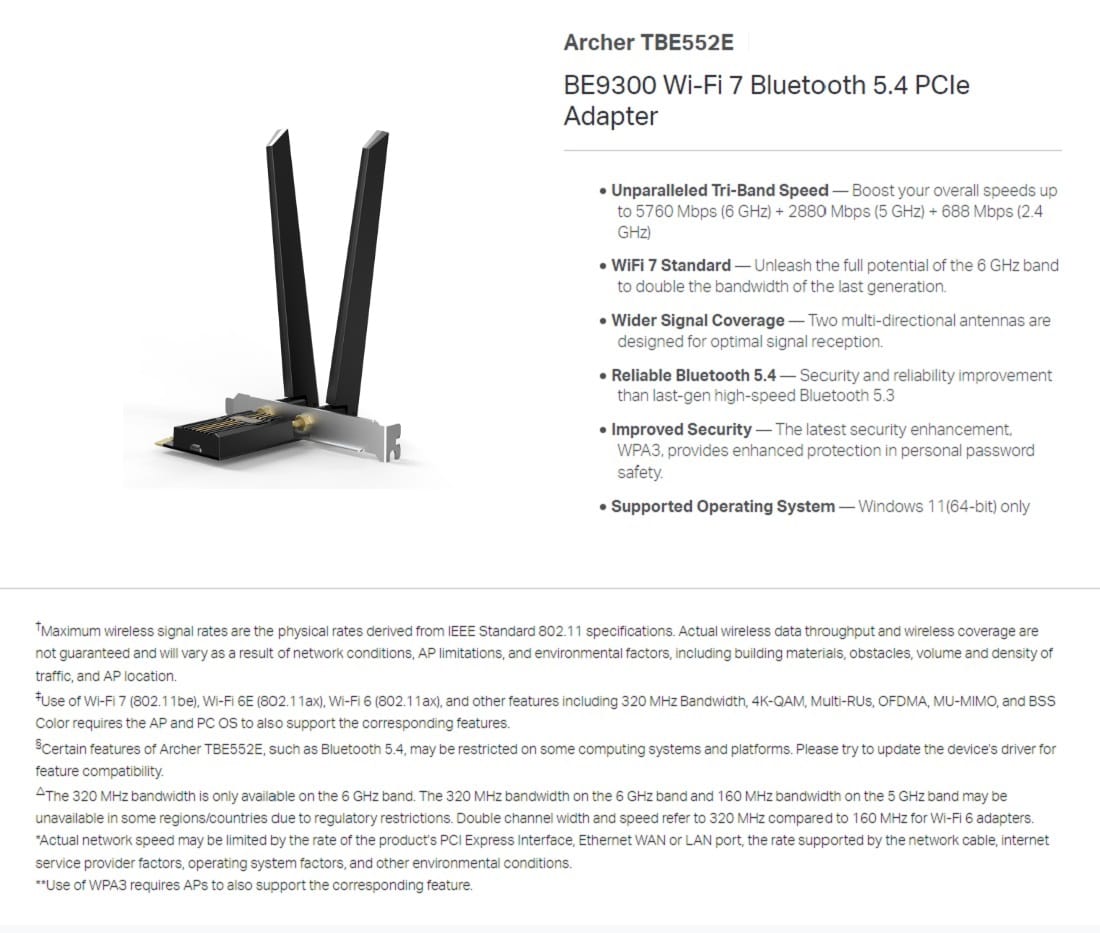

Experience lightning-fast speeds with the TP-Link Archer TBE552E BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter. Boost your speeds up to 5760 Mbps, unleash the full potential of 6 GHz band with WiFi 7 standard, and enjoy wider signal coverage with dual multi-directional antennas. Enhanced Bluetooth 5.4 security and support for Windows 11.

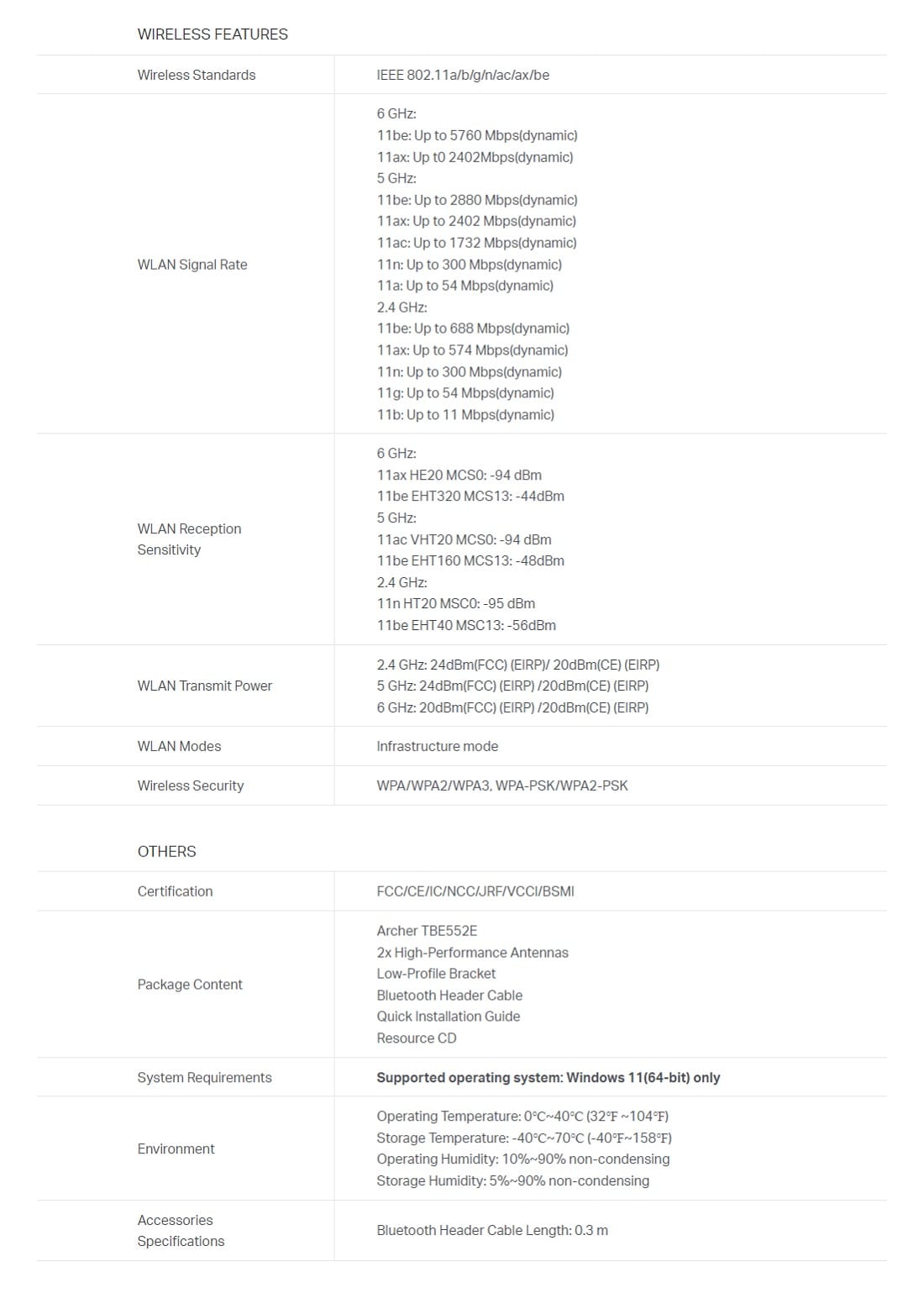

| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | WLAN / Bluetooth |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 5760 Mbit/s |
| Wi-Fi band The frequency bands the product features. | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Frequency range | 2.4 - 6 GHz |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 7 (802.11be) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rates supported | 11,54,300,574,1732,2402,688,2880 Mbit/s |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 4096-QAM |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
 |
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.4 |
| Design | |
| Component for What this product is used as a part of (component for). | PC |
| Internal The product is built in. |
 |
| Antenna |
|
| Antenna design | External |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | 2x2 |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | -95 dBi |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 20 - 24 dBm |
| Certification | FCC/CE/IC/NCC/JRF/VCCI/BSMI |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 11 x64 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Mounting brackets included |
|
| Resource CD |
|
| Quick installation guide |
|
| SKU | 822338 |
| MPN | Archer TBE552E |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
