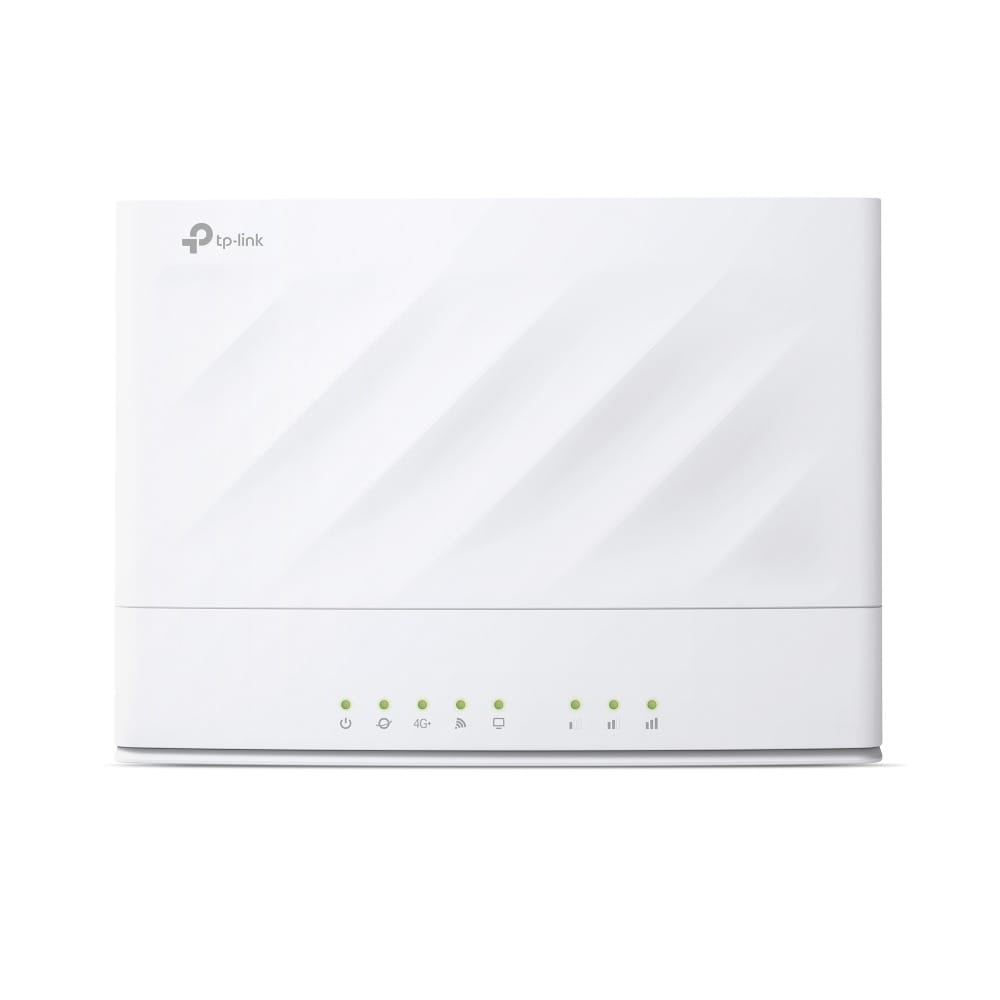

TP-Link Archer MX700 4G+ AX1500 Dual Band Wi-Fi LTE Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port triggering
Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Receiver sensitivity	5 GHz: 11a 54M: -77 dBm 11ax HE20:-64 dBm 11ax HE40: -61 dBm 11ax HE80:-59 dBm 11ac VHT20: -69 dBm 11ac VHT40: -66 dBm 11ac VHT80 : -63 dBm 11n HT20: -74 dBm 11n HT40: -71 dBm 2.4 GHz: 11g 54M: -78 dBm 11n HT20: -75 dBm 11n HT40: -72 dBm

Mobile network
Mobile network generation	4G
4G standard	LTE-TDD & LTE-FDD
3G bands supported	850,900,2100 MHz
SIM card type	NanoSIM

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
USB port The device features a socket into which a USB cable can be plugged.
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Wi-Fi Multimedia (WMM)/(WME)
Bandwidth control
Quality of Service (QoS) support
Reset button
MU-MIMO technology
Cloud-managed

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	64-bit WEP, 128-bit WEP, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Personal
Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.	IPv4 SPI Firewall, ALG, IP and MAC Address Binding, Access Control
Schedule access
System event log
DMZ support

Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Universal Plug and Play (UPnP)
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4, IPv6

Design
Product colour The colour e.g. red, blue, green, black, white.	White
Wall mountable The product can be mounted on (attached to ) a wall.
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Rack/wall router

Certificates
Compliance certificates	CE, RoHS

Packaging content
Cables included	LAN (RJ-45)
AC adapter included
Quick installation guide

Antenna
Antenna design	Internal
Antennas quantity	6

Features
Firmware upgradeable

Power
Power source type What the power source is.	DC

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.

Weight & dimensions
Width The measurement or extent of something from side to side.	199.7 mm
Depth The distance from the front to the back of something.	148.6 mm
Height The measurement of the product from head to foot or from base to top.	67.5 mm

Packaging data
Package type The type of product package e.g. box.	Box
