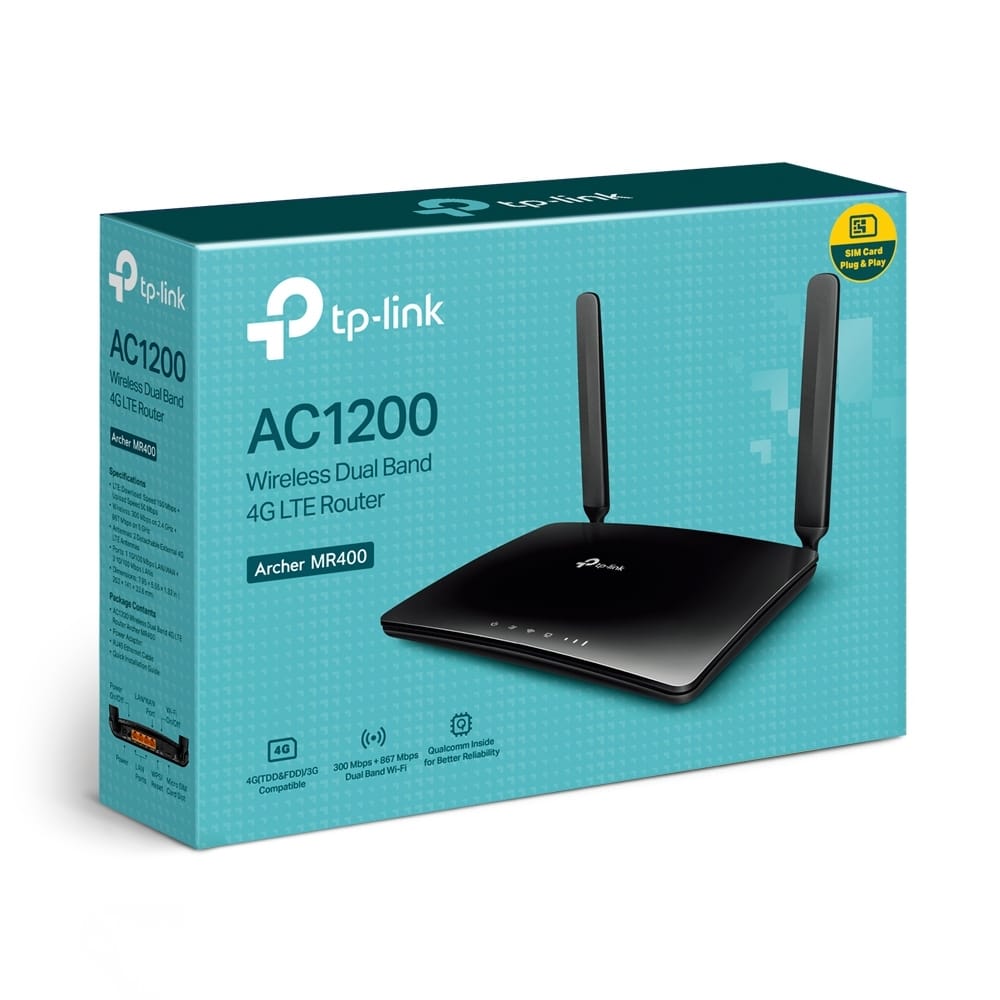

TP-Link Archer MR400 AC1200 Dual Band 4G/LTE Modem Router

Item No:
228403
MPN:
ARCHER MR400
$169.00

TP-Link Archer MR400 AC1200 Dual Band 4G/LTE Modem Router

$169.00
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 1-2 business days
Store Availability
  • 2-3 business days at Bankstown
  • 2-3 business days at Blacktown
  • 2-3 business days at Castle Hill
Shipping Estimate
300Mbps at 2.4GHz, 867Mbps at 5GHz, Wireless AC1200, 4 Port Gigabit Switch, SIM Card Slot, 3G/4G/LTE Only

TP-Link AC1200 Wireless Dual Band 4G LTE Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type RJ-45
Wireless LAN features
Wi-Fi band The frequency bands the product features. Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max) 867 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band) 450 Mbit/s
WLAN data transfer rate (second band) 867 Mbit/s
Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface. Fast Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 10,100 Mbit/s
Cabling technology Type of cable technology performance. 10/100Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Port forwarding
Dynamic DNS (DDNS)
VPN tunnels quantity 10
VPN Passthrough
VPN support PPTP, L2TP, IPSec
Receiver sensitivity 5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm
Mobile network
3G Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV.
4G Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing.
2G standards EDGE,GPRS,GSM
3G standards DC-HSPA+,HSPA,HSPA+,UMTS
4G standard LTE
GSM bands supported 850,900,1800,1900 MHz
UMTS bands supported 900,2100 MHz
4G bands supported 800,900,1800,2100,2600 MHz
Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 3
USB port The device features a socket into which a USB cable can be plugged.
Memory card slot(s) Places where memory cards are placed inside and connected to the computer motherboard.
DC-in jack The socket/plug where the DC electricity supply connects to the device.
Management features
Web-based management Using a website/web application to manage something.
Quality of Service (QoS) support
Reset button
WPS push button
Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Firewall
Guest access
Access Control List (ACL)
Stateful Packet Inspection (SPI)
DoS attack prevention
DMZ support
Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. IPv4, IPv6
Design
Product colour The colour e.g. red, blue, green, black, white. Black
Wall mountable The product can be mounted on (attached to ) a wall.
LED indicators LAN,Power,Status,WLAN
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product. Tabletop router
Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal. Internal & external
Antennas quantity 2
Detachable antenna(s)
Transmit power CE: <20dBm(2.4GHz), <23dBm(5GHz)
Features
Certification CE, RoHS
Power
Power source type What the power source is. DC
Output voltage 12 V
Output current 1.5 A
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
System requirements
Windows operating systems supported Windows vesions wich can be used with the device. Windows 10,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. macOS
Mac compatibility Product can be used with Apple Mac software and/or hardware.
Weight & dimensions
Width The measurement or extent of something from side to side. 202 mm
Depth The distance from the front to the back of something. 141 mm
Height The measurement of the product from head to foot or from base to top. 33.6 mm
Packaging data
Cables included LAN (RJ-45)
AC adapter included
Quick installation guide
Package type The type of product package e.g. box. Box
More Information
SKU 228403
MPN ARCHER MR400
Brand TP-Link
Product Condition Brand New/Unused
Modem Type 4G
Wired/Wireless Wireless
Stock Availability Available for Shipping
Warranty Period 3 Years Warranty
Warranty Contact https://www.tp-link.com/
