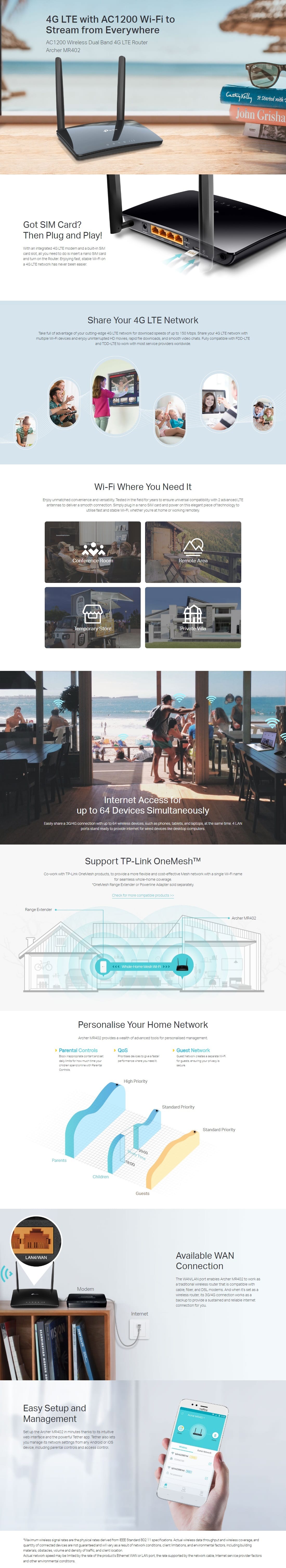

Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps; Powerful, integrated antennas provide stable wireless connections and better coverage; Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection; Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band; Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type

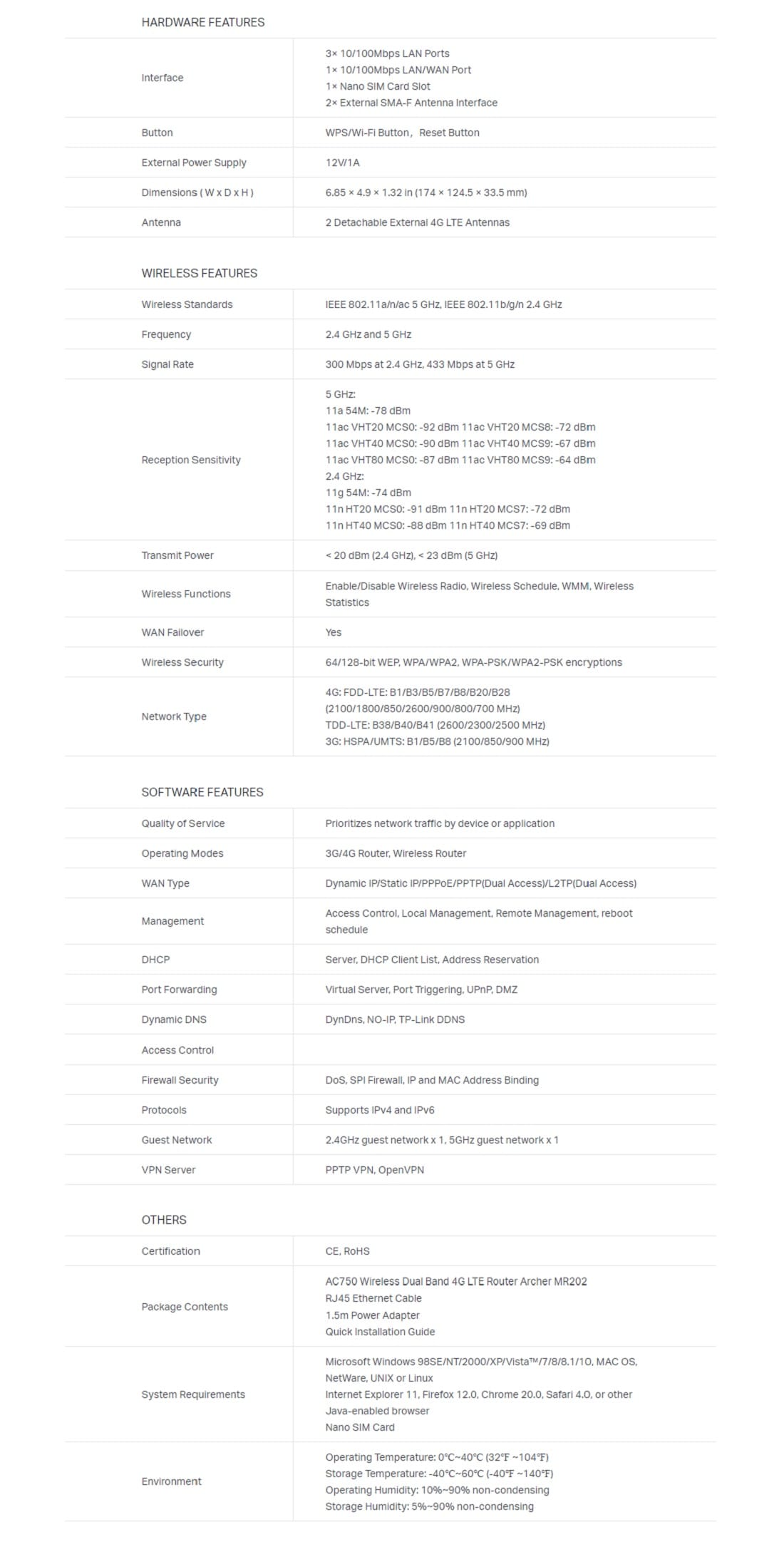

| WAN connection | |
| Ethernet WAN |
 |
| DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option. |
 |
| SIM card slot Whether the device features a SIM card slot. |
|
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 733 Mbit/s |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 433 Mbit/s |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Dynamic DNS (DDNS) |
|
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Receiver sensitivity | 5 GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm |
| Mobile network | |
| 3G standards | DC-HSPA+, HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall |
|
| Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication. | DoS, SPI Firewall, IP & MAC Address Binding |
| Protocols | |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Product type The sub-category of the product. | Tabletop router |
| Certificates | |
| Certification | CE, RoHS |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included |
|
| Quick installation guide |
|
| Antenna | |
| Antenna design | External |
| Antennas quantity | 2 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| SKU | 808635 |
| MPN | Archer MR202 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Modem Type | 4G |
| Wired/Wireless | Wireless |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
