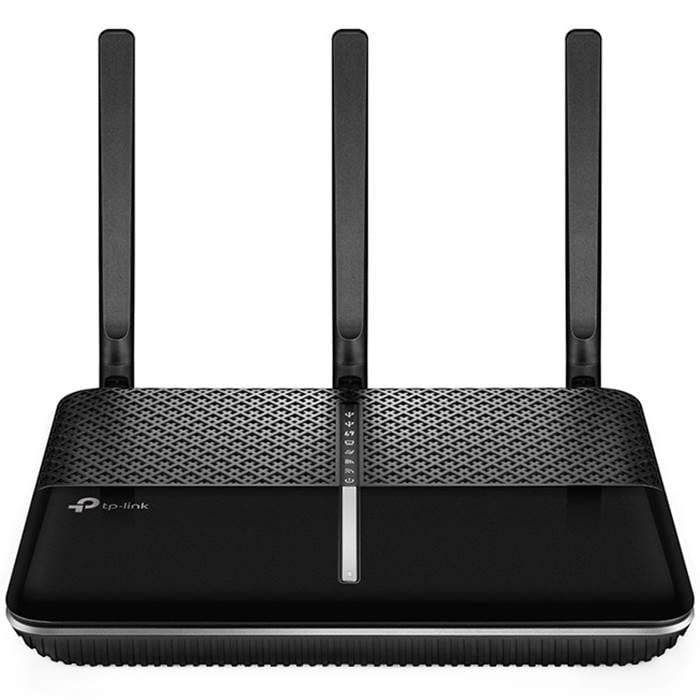

TP-Link Archer C2300 Dual-Band Wireless Gigabit Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type	RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1733 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1733 Mbit/s

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Port forwarding
Dynamic DNS (DDNS)
Receiver sensitivity	5GHz: 11ac80M MCS11: -58dBm, 11ac80M MCS0: -88dBm 11ac40M MCS11: -61dBm, 11ac40M MCS0: -91dBm 11ac20M MCS11: -63dBm, 11ac20M MCS0: -95dBm 54M: -76dBm, 6M: -95dBm 2.4GHz: 11n40M MCS9: -63dBm, 11n40M MCS0: -89dBm 11n20M MCS8: -67dBm, 11n20M MCS0: -92dBm 54M: -75dBm, 11M : -90dBm, 6M: -93dBm, 1M: -98dBm

Mobile network
3G Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV.
4G Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing.

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Quality of Service (QoS) support
Reset button
WPS push button

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	64-bit WEP,128-bit WEP,WEP,WPA,WPA-PSK,WPA2
Firewall
Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.	DoS, SPI Firewall, IP and MAC Address Binding
Guest access
Port-based Network Access Control (PNAC)
DMZ support

Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Universal Plug and Play (UPnP)
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4, IPv6

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators	LAN,Power,Status,System,WAN,WLAN
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Tabletop router

Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	External
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.	3 dBi
Detachable antenna(s)
Transmit power	2.4G≤30dBm, 5G≤30dBm

Features
Built-in processor Whether or not a processor is built into the device.
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	1800 MHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	2
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	256 MB
Flash memory	128 MB
Certification	CE, FCC, RoHS

Power
Power source type What the power source is.	DC
Output voltage	12 V
Output current	2 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 90 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	216 mm
Depth The distance from the front to the back of something.	164 mm
Height The measurement of the product from head to foot or from base to top.	36.8 mm

Packaging data
Cables included	LAN (RJ-45)
AC adapter included
Quick installation guide
Package type The type of product package e.g. box.	Box

Other features
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another.	1 Mbit/s
