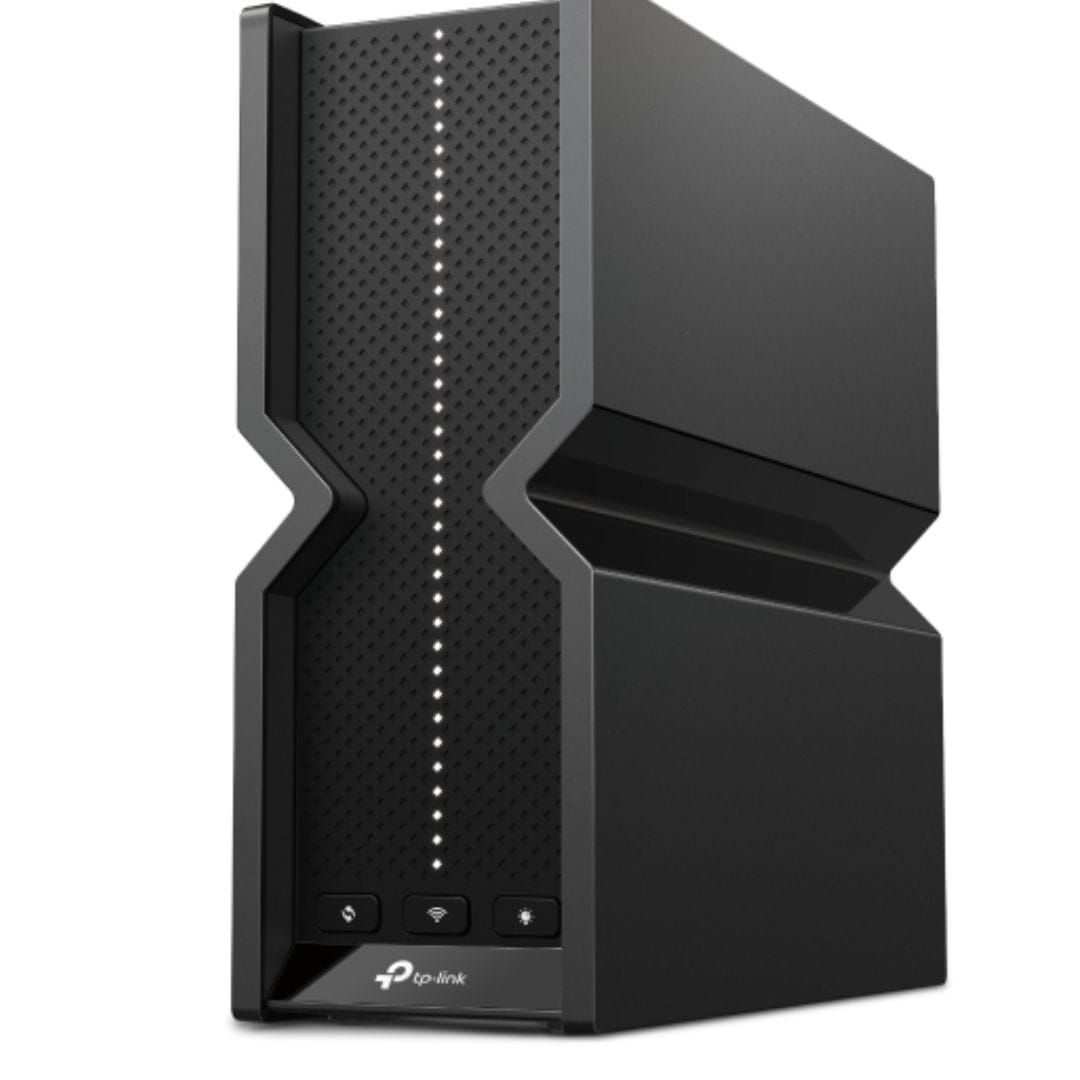

TP-Link Archer BE700 BE15000 Tri-Band WiFi7 Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type	RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)	19000 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN data transfer rate (first band)	1376 Mbit/s
WLAN data transfer rate (second band)	5760 Mbit/s
WLAN data transfer rate (third band)	11520 Mbit/s
Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.	4096-QAM, OFDMA

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Multi-Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	25000 Mbit/s
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1x
Port forwarding
Port triggering
Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Number of guest networks (6 GHz)	1
Built-in FTP server
VPN server	OpenVPN, PPTP, L2TP, WireGuard
Media server

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.	SFP+

Management features
Web-based management Using a website/web application to manage something.
Quality of Service (QoS) support
WPS push button
Intelligent Mesh technology
MU-MIMO technology

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Firewall
Guest access
Stateful Packet Inspection (SPI)
DoS attack prevention
Parental control
Filtering
DMZ support
Network address translation (NAT)

Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Universal Plug and Play (UPnP)
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Built-in display A display which is part of the product, so you do not need to attach another display.
Product type The sub-category of the product.	Tabletop router

Certificates
Certification	CE, FCC, RoHS

Packaging content
Cables included	LAN (RJ-45)
AC adapter included
Quick installation guide

Antenna
Antenna design	Internal
Antennas quantity	6

Features
Number of simultaneously connected devices (max)	100

Power
Power source type What the power source is.	AC
Output voltage	12 V
Output current	3.3 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

System requirements
Browser supported List of supported browsers for this product.	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+

Weight & dimensions
Width The measurement or extent of something from side to side.	76 mm
Depth The distance from the front to the back of something.	231.7 mm
Height The measurement of the product from head to foot or from base to top.	203 mm

Packaging data
Package type The type of product package e.g. box.	Box
Number of products included The number of products that are included in the package.	1 pc(s)
