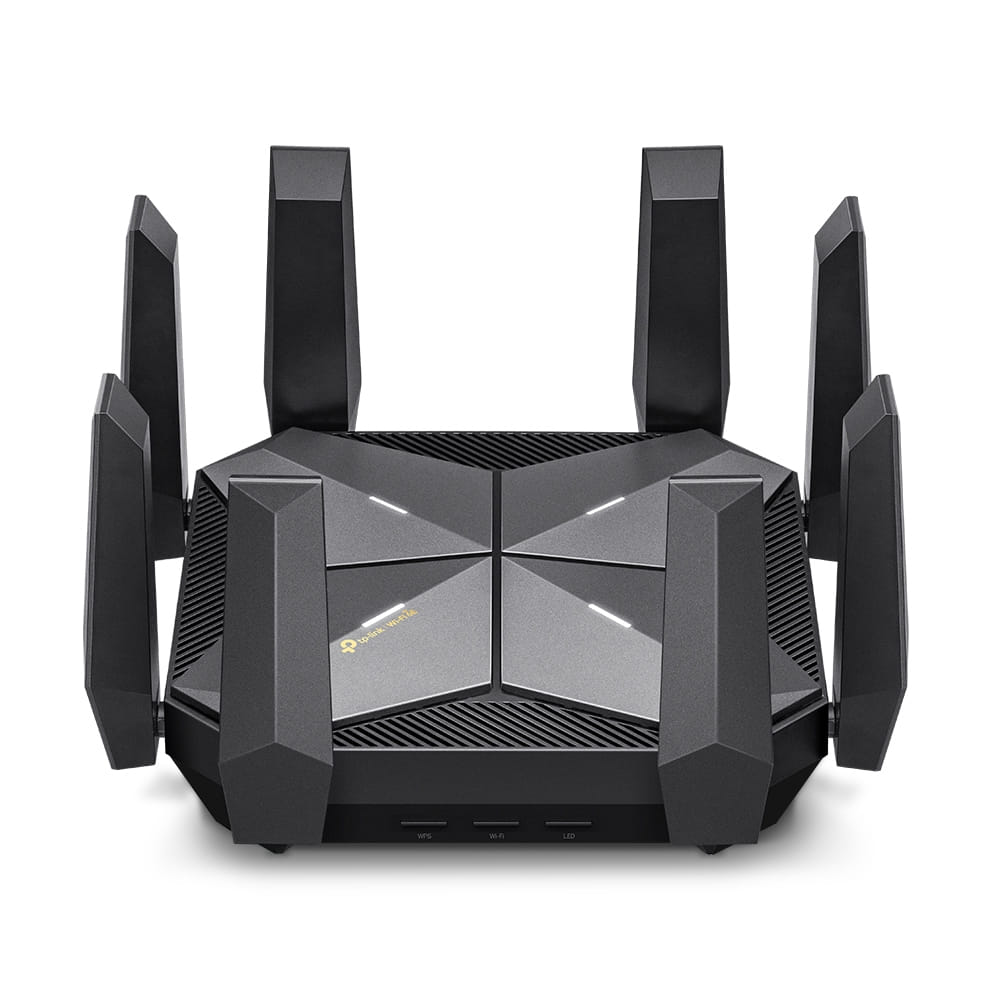

TP-Link Archer AXE300 AXE16000 Quad-Band WiFi 6E Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type	RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Quad-band (2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
WLAN data transfer rate (max)	15600 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN data transfer rate (first band)	1148 Mbit/s
WLAN data transfer rate (second band)	4804 Mbit/s
WLAN data transfer rate (third band)	4804 Mbit/s
WLAN data transfer rate (fourth band)	4804 Mbit/s

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	10 Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	2500 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n
Port forwarding
Port triggering
Dynamic DNS (DDNS)
Static route
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	2
Number of guest networks (6 GHz)	1
Support Samba (storage)
Built-in FTP server
VPN server	OpenVPN Server
Media server
VPN Passthrough
VPN support	OpenVPN Server PPTP VPN Server L2TP VPN Server

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	7
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1

Management features
Web-based management Using a website/web application to manage something.
Quality of Service (QoS) support
Wake-on-LAN ready
Reset button
WPS push button

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Firewall
Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.	SPI Firewall
Guest access
DoS attack prevention
DDoS protection
URL filtering
DMZ support
Network address translation (NAT)

Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Universal Plug and Play (UPnP)
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4, IPv6

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Wall mountable The product can be mounted on (attached to ) a wall.
LED indicators	Power
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Tabletop router

Certificates
Compliance certificates	Federal Communications Commission (FCC), RoHS

Packaging content
Cables included	LAN (RJ-45)
AC adapter included
Quick installation guide

Sustainability
Sustainability compliance

Antenna
Antenna design	External
Antennas quantity	8
Detachable antenna(s)
Transmit power	FCC: < 30 dBm (2.4 GHz), < 30 dBm (5 GHz), ≤ 25 dBm (6 GHz)

Features
Built-in processor Whether or not a processor is built into the device.
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	2000 MHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Firmware upgradeable

Power
Power source type What the power source is.	DC
Output voltage	12 V
Output current	5 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	232 mm
Depth The distance from the front to the back of something.	232 mm
Height The measurement of the product from head to foot or from base to top.	68 mm

Packaging data
Number of products included The number of products that are included in the package.	1 pc(s)
