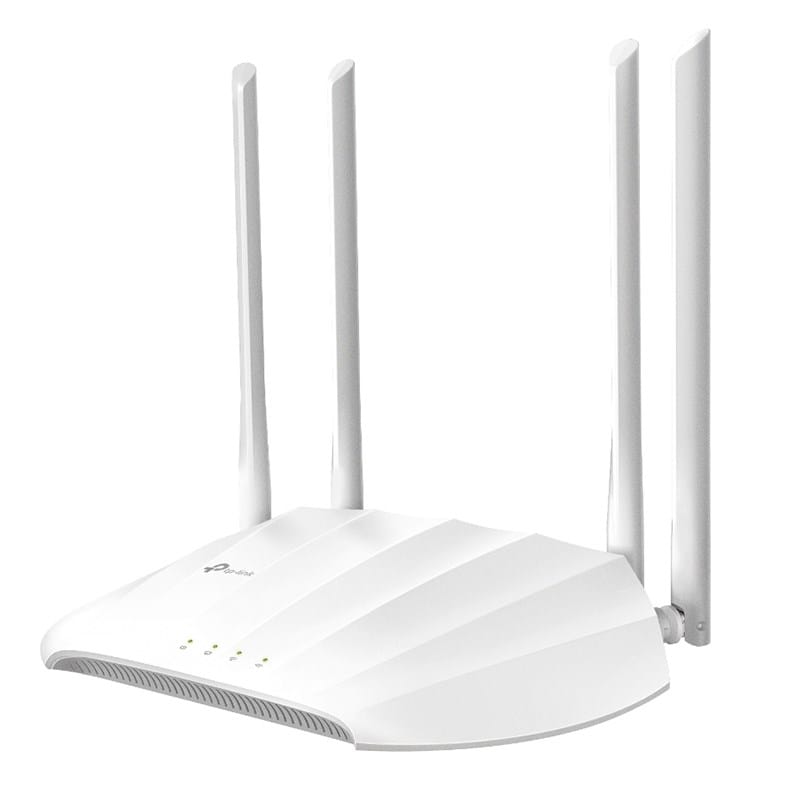

TP-Link TL-WA1201 AC1200 Wireless Access Point - Interface: 1x 10/100/1000 Mbps Ethernet Port - External Power Supply: 12V/1.5A - Wireless Standards: IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 5 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| MIMO |
|
| MIMO type | Multi User MIMO |
| Fit AP mode features | Wireless distribution system (WDS) |
| Wi-Fi Multimedia (WMM)/(WME) |
|
| Transmitting power (CE) | <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) |
| Transmitting power (FCC) | <30dBm(2.4GHz&5GHz) |
| Receiver sensitivity | 5 GHz: , 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm , 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm , 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm , 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm , , 2.4 GHz: , 11g 54Mbps: -78 dBm , 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm , 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Device type identification | DHCP options |
| Protocols | |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Firmware upgradeable |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| WAN connection A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. | Ethernet (RJ-45) |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Input voltage The voltage (V) which is required to power the product. | 12 V |
| Input current | 1.5 A |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Table |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Reset button |
|
| WPS push button |
|
| LED indicators |
|
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antennas quantity | 4 |
| Performance | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 40% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 90 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 400 mm |
| Depth The distance from the front to the back of something. | 255 mm |
| Height The measurement of the product from head to foot or from base to top. | 72 mm |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Package type The type of product package e.g. box. | Box |
| SKU | 388339 |
| MPN | TL-WA1201 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
