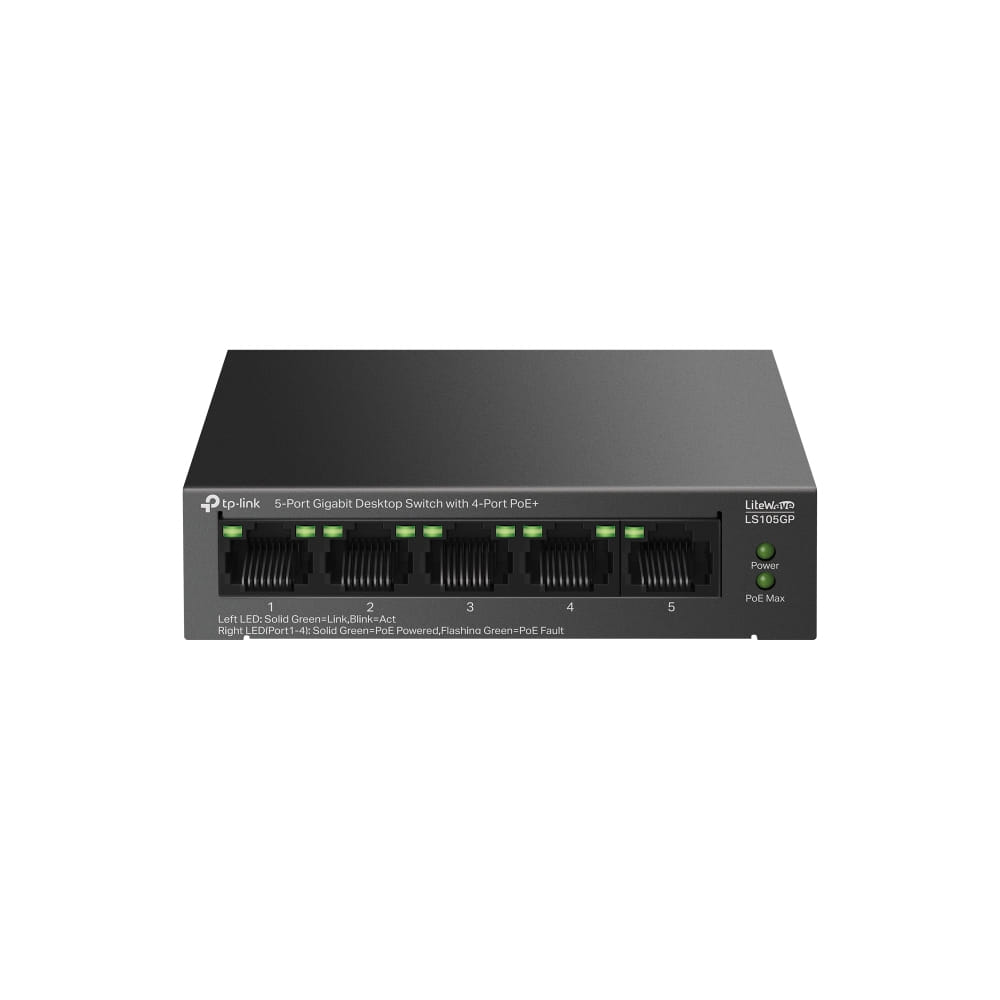

TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Overview\nThe TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Quality of Service (QoS) support |
 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 5 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Cable types supported | Cat3, Cat5e, Cat4, Cat5 |
| Flow control support |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Auto-negotiation |
|
| MAC address auto-learning supported |
|
| MAC address auto-aging supported |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 2000 entries |
| Store-and-forward |
|
| Jumbo frames | 16000 |
| Security | |
| IGMP snooping |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Certification | CE, FCC, RoHS |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC/PoE |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 220 V |
| AC input frequency | 50 Hz |
| DC input voltage | 53.5 V |
| Power consumption (max) The maximum amount of power used by the device. | 74.46 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 253.16 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 99.8 mm |
| Depth The distance from the front to the back of something. | 98 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Packaging data | |
| User guide |
|
| Package type The type of product package e.g. box. | Box |
| SKU | 803636 |
| MPN | LS105GP |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tp-link.com/ |
