- 11N speed allows for the best HD video streaming and internet calling experience
- Dual external antennas deliver enhanced reception and transmission performance
- Easy one-touch wireless security encryption with the Quick Security Setup button
- 1.5 meter USB cable enables convenient, flexible deployment
- Supports Windows XP / Vista / 7 / 8 / 8.1
What This Product Does

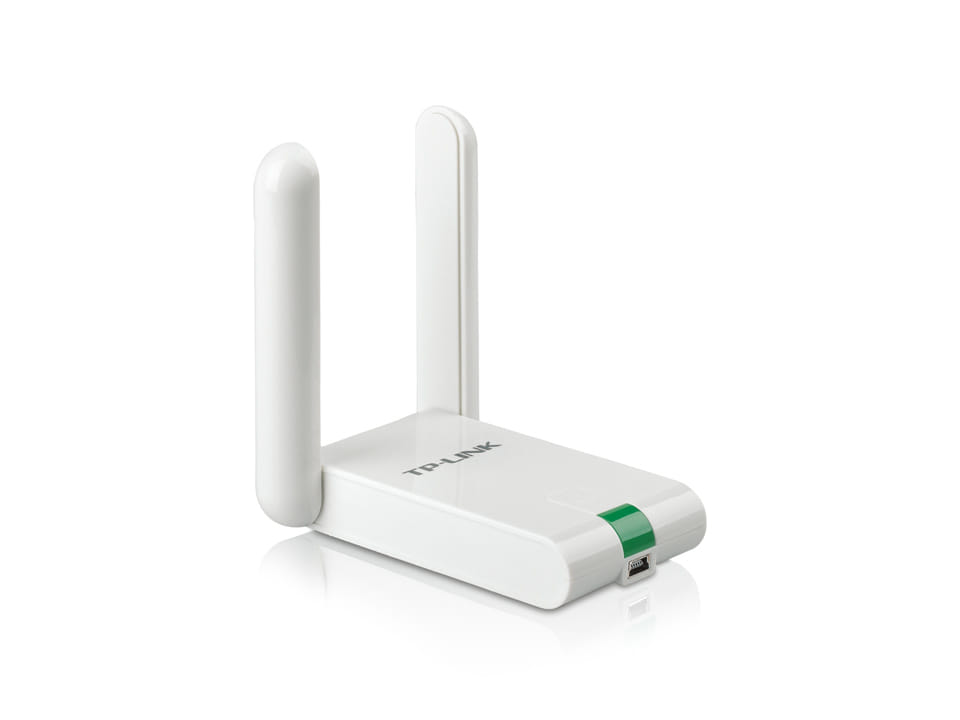

The TL-WN822N High Gain USB Adapter is a 300Mbps wireless client, which allows users to connect a desktop or notebook computer to a wireless network and access a high-speed Internet connection. It is fully interoperable with IEEE 802.11 b/g/n wireless devices, delivering speedy 11n speeds and reliable signal for lag-free online gaming, Internet calls or even HD video streaming.Dual 3dBi External Antennas
The TL-WN822N features dual 3dBi external antennas which can be rotated and adjusted in different directions to fit various environments to achieve the best signal possible, significantly better than adapters with internal antennas.One Button Security Setup
Compatible with Wi-Fi Protected Setup™ (WPS), TL-WN822N supports Quick Security Setup that allows users to simply press the "QSS" button on the device's exterior, instantly establishing a highly secured connection. Not only is it faster than normal security setups but more convenient in that users don't need to remember a password!Bundled CD for Easy to Use
The TL-WN822N comes with a CD with utility that helps users easily complete the software installation and wireless network settings, including security configurations and wireless connection, and is simple enough even for novice users.Desktop-Style Design & 1.5 Meter USB Cable
Apart from its fashionable and novel exterior, the TL-WN822N’s desktop-style design is truly beneficial for signal reception in various environments, guaranteeing smooth and stable signals. The TL-WN822N also provides a 1.5 meter USB cable, convenient for installation and flexible deployment.
| HARDWARE FEATURES | |
|---|---|
| Interface | Mini USB 2.0 |
| Button | QSS Push Button/Software |
| Dimensions ( W x D x H ) | 3.5 x 2.7 x 0.7 in. (90 x 68 x 16.8mm) |
| Antenna Type | Dual Omni Directional |
| Antenna Gain | 3dBi |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.400-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: [email protected]/* */% PER 130M: [email protected]/* */% PER 108M: [email protected]/* */% PER 54M: [email protected]/* */% PER 11M: [email protected]/* */% PER 6M: [email protected]/* */% PER 1M: [email protected]/* */% PER |
| Transmit Power | <20dBm(EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Advanced Functions | WMM |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Wireless Adapter TL-WN822N Resource CD USB Cable Quick Installation Guide 1.5m USB Cable |
| System Requirements | Windows 8.1 32/64bit, Windows 8 32/64bit, Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Host interface Interface that enables a host controller to communicate with a driver. | Mini-USB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | WLAN |
| USB ports quantity | 1 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 300 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Wi-Fi band The frequency bands the product features. | Single-band (2.4 GHz) |
| Frequency range | 2.4 - 2.4835 GHz |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 4 (802.11n) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 16-QAM,64-QAM,CCK,DBPSK,DQPSK,OFDM |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP,128-bit WEP,WPA-PSK,WPA2-PSK |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Internal The product is built in. |
 |
| Antenna |
|
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 90 mm |
| Depth The distance from the front to the back of something. | 68 mm |
| Height The measurement of the product from head to foot or from base to top. | 16.8 mm |
| SKU | 216286 |
| MPN | TL-WN822N |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Castle Hill |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
