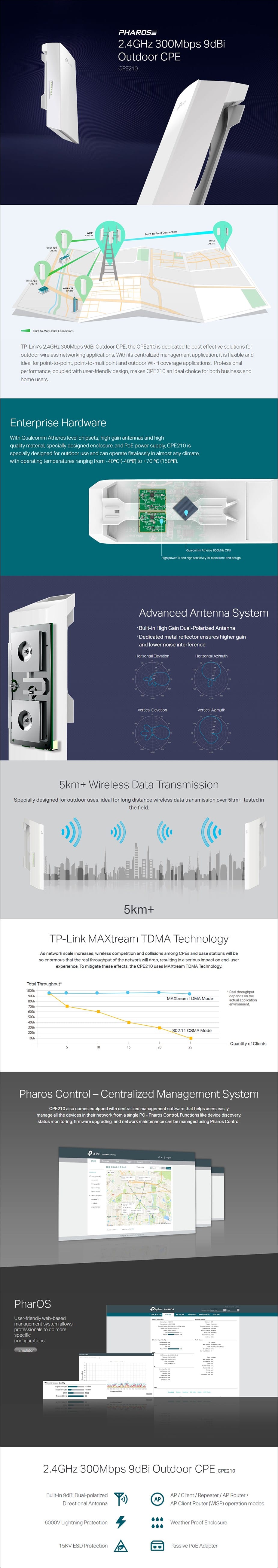

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE - Built-in 9dBi 2x2 dual-polarized directional MIMO antenna - 0 to 27dBm/500mw
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 2.483 GHz |
| Bandwidth | 2.4 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| MIMO |
|
| MIMO type | Multi User MIMO |
| Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors. | 5000 m |
| Receiver sensitivity | 802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP,128-bit WEP,152-bit WEP,SSID,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Protocols | |
| Management protocols | TDMA |
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Management platform | Pharos Control |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Input current | 0.8 A |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output voltage | 24 V |
| Output current | 1 A |
| Power consumption (max) The maximum amount of power used by the device. | 10.5 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IPX5 |
| Reset button |
|
| LED indicators |
|
| Certification | - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5 |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 9 dBi |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor model The model number for the processor in a computer. | Qualcomm Atheros |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 560 MHz |
| Flash memory | 8 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 64 MB |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 224 mm |
| Depth The distance from the front to the back of something. | 79 mm |
| Height The measurement of the product from head to foot or from base to top. | 60 mm |
| Packaging data | |
| Cables included | AC |
| Mounting kit |
|
| SKU | 270620 |
| MPN | CPE210 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
