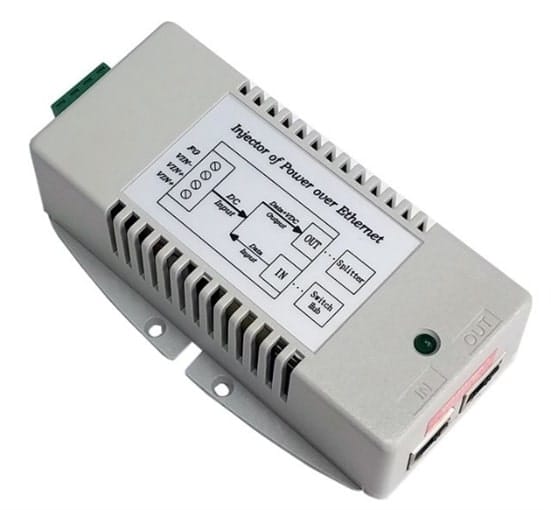

Ubiquiti Tycon Power,TP-DCDC-1224G-4P, 9-36VDC IN, 24V 24W Gigabit Passive 4pair PoE OUT. DC to DC Converter, PoE Injector, PoE Pins 1245(+),3678 (-)
Tycon Power 10-36VDC Input, 24V 4Pair Gigabit Passive PoE Output, 24W
Description:
The TP-DCDC-1224G-4P is a low cost and high efficiency solution for those requiring 24VDC 4 pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated 4 pair PoE injector to apply the power and data output to the CAT5/6 Ethernet cable. All 8 wires carry both data and PoE power. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. Input and outputs are isolated so + or " ground is OK. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and 4 pairt PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 1,2,4,5(V+) and 3,6,7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W
SKU: TP-DCDC-1224G-4P
SPEC SHEET: Click Here
USER GUIDE:Click Here
DIMENSIONAL DRAWING: Click Here
Features:
Input Voltage 9-36VDC
24V Gigabit Passive 4 Pair PoE Output
Dual Inputs for Connecting 2 Power Sources
Integrated 10/100/1000MB PoE Inserter
High Power up to 24W
Short Circuit, Over Current and Reverse/Over Voltage Protect
High Temperature Operation to 70C
Built-in Low Battery Disconnect and Surge Protection
I.T.E. Power Supply, UL Listed
Applications:
12V / 24V Battery Systems, Vehicle Applications
UBNT Airfiber-X
Wireless Access Points and Client Devices
Description:
The TP-DCDC-1224G-4P is a low cost and high efficiency solution for those requiring 24VDC 4 pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated 4 pair PoE injector to apply the power and data output to the CAT5/6 Ethernet cable. All 8 wires carry both data and PoE power. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. Input and outputs are isolated so + or " ground is OK. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and 4 pairt PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 1,2,4,5(V+) and 3,6,7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W
SKU: TP-DCDC-1224G-4P
SPEC SHEET: Click Here
USER GUIDE:Click Here
DIMENSIONAL DRAWING: Click Here
Features:
Input Voltage 9-36VDC
24V Gigabit Passive 4 Pair PoE Output
Dual Inputs for Connecting 2 Power Sources
Integrated 10/100/1000MB PoE Inserter
High Power up to 24W
Short Circuit, Over Current and Reverse/Over Voltage Protect
High Temperature Operation to 70C
Built-in Low Battery Disconnect and Surge Protection
I.T.E. Power Supply, UL Listed
Applications:
12V / 24V Battery Systems, Vehicle Applications
UBNT Airfiber-X
Wireless Access Points and Client Devices
| SKU | 759257 |
| MPN | TP-DCDC-1224G-4P |
| Brand | Ubiquiti |
| Product Condition | Brand New/Unused |
| Adapter Type | Power Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ui.com/ |
