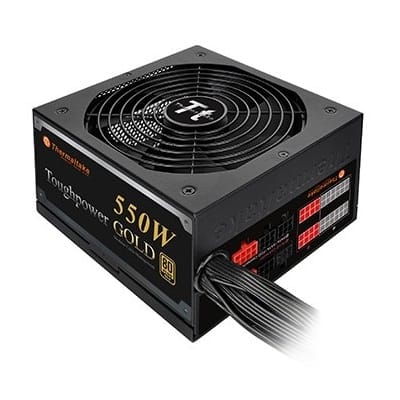

Thermaltake Toughpower 550w 80+ Gold PSU - Ultra Quiet Fan | 80 PLUS Gold-certified and Haswell-ready | High Quality Japanese Capacitor | Massive and Dedicated +12V Output | Semi Modular Cable Design | Flat Modular Cable Design
Thermaltake Toughpower 550w 80+ Gold
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 550 W |
| Peak power This is the maximum power required by the device or peak music power. | 660 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 4 - 8 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 546 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Efficiency | 92% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over voltage, Short circuit |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| EPS power connector (8-pin) |
 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (8-pin) | 1 |
| CPU power connector (4+4 pin) |
 |
| ATX Power connector (24-pin) |
|
| ATX Power connector (20-pin) |
|
| ATX power connector (20+4 pin) |
|
| Floppy drive power connector | 1 |
| Floppy disk drive connector |
|
| Cabling type | Semi-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 2.3 |
| EPS version | 2.92 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan speed | 2400 |
| Fan location | Top |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 160 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Manual |
|
| Technical details | |
| Sustainability certificates | RoHS |
| Other features | |
| Warranty card |
|
| SKU | 256914 |
| MPN | PS-TPD-0550MPCGAU-1 |
| Brand | Thermaltake |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Stock Availability | Available for Shipping |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://www.thermaltake.com.au/ |
