ATX Form Factor - 80+ Certified and Kaby Lake Ready - 256 Pre-installed Colors RGB Fan with 15 lighting modes - 10x LED Lightbulbs - Ultra Quiet 120mm Fan - High Amperage Single +12V Rail - Multiple Connectors

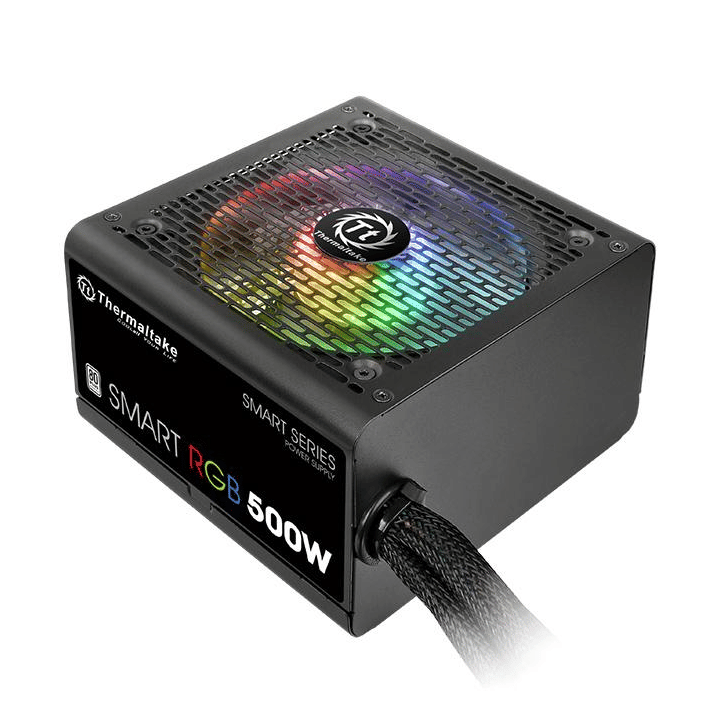

Thermaltake SMART RGB 500W 80 PLUS Power Supply - ATX Form Factor - 80+ Certified and Kaby Lake Ready - 256 Pre-installed Colors RGB Fan with 15 lighting modes - 10x LED Lightbulbs - Ultra Quiet 120mm Fan - High Amperage Single +12V Rail - Multiple Connectors
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 500 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 420 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 35 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Efficiency | 86% |
| Power Good signal delay range | 100 - 500 ms |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 55 cm |
| ATX power connector (20+4 pin) |
|
| Floppy drive power connector | 1 |
| Floppy disk drive connector |
|
| Floppy disk drive cable length | 10 cm |
| PCI Express connector |
|
| Performance | |
| 80 PLUS certification | 80 PLUS |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 2.3 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 28.1 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | CE/CB/TUV/ EAC |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan location | Top |
| Illumination The device has illumination. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Other features | |
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| SKU | 227528 |
| MPN | PS-SPR-0500NHSAWA-1 |
| Brand | Thermaltake |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | Gaming |
| Product Features | RGB |
