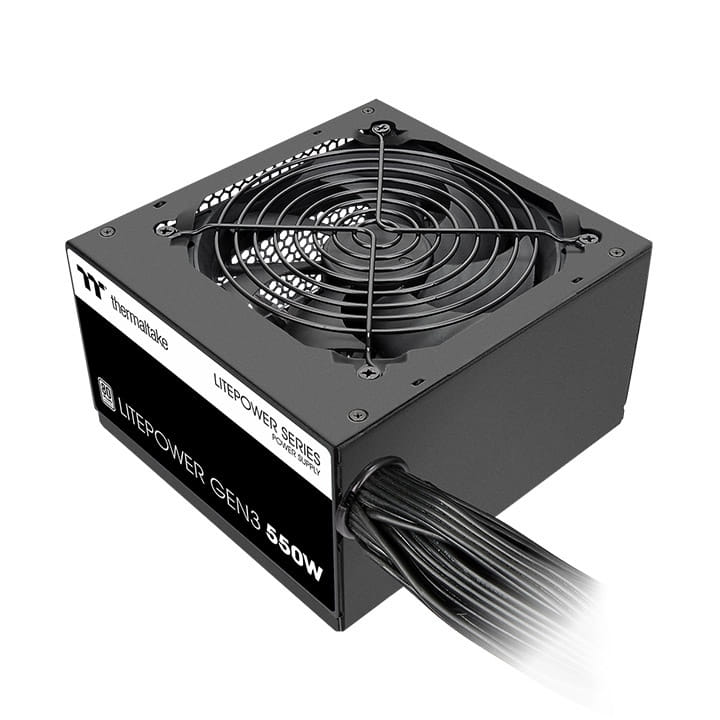

Thermaltake Litepower Gen3, 550 W, 200 - 240 V, 50 Hz, 8 A, 100 W, 549.6 W
80 PLUS® 230V EU Standard Certified APFC non-modular PSU.
The Litepower Gen3 Series
The Litepower Gen3 Series is certified by 80 PLUS 230V EU, saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An embedded Hydraulic Bearing Fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design and DC-DC design enables non-stop usage with stable and reliable performance.
Ultra Quiet 120mm Fan
The Litepower Gen3 Series adopts 120mm Hydraulic Bearing Fan to guarantee cool performance and silent operation.
80 PLUS 230V Standard Certified
The Litepower Gen3 Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® 230V Standard certified.
Multiple Connectors
The cables used for the Litepower Gen3 Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High amperage Single +12V Rail & DC to DC Design
The Litepower Gen3 Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection
To protect the hardware, the Litepower Gen3 series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
The Litepower Gen3 Series
The Litepower Gen3 Series is certified by 80 PLUS 230V EU, saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An embedded Hydraulic Bearing Fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design and DC-DC design enables non-stop usage with stable and reliable performance.
Ultra Quiet 120mm Fan
The Litepower Gen3 Series adopts 120mm Hydraulic Bearing Fan to guarantee cool performance and silent operation.
80 PLUS 230V Standard Certified
The Litepower Gen3 Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® 230V Standard certified.
Multiple Connectors
The cables used for the Litepower Gen3 Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High amperage Single +12V Rail & DC to DC Design
The Litepower Gen3 Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection
To protect the hardware, the Litepower Gen3 series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 550 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 8 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 549.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 45.8 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 17 ms |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| Peripheral (Molex) power cable length | 150,500 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) |
 |
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS |
| Purpose What the product is used for. | PC/Server |
| Bearing technology | Hydraulic |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Certification | FCC/ICES/CB/cTUVus |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| SKU | 784757 |
| MPN | PS-LTP-0550NNSAWA-A |
| Brand | Thermaltake |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.thermaltake.com.au/ |
