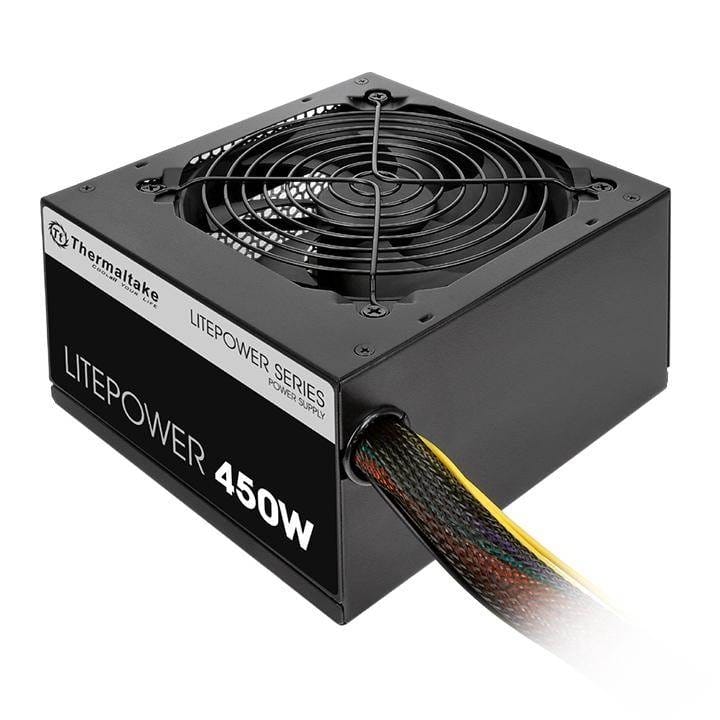

The Thermaltake Litepower GEN2 series is ideal for basic desktop systems with lower power level consumption - where efficiency, reliability and low noise is of utmost importance. The Litepower GEN2 series are built using the latest ATX 12V V2.3 standard and include a dedicated +12V rail, guaranteeing you compatibility with all the latest desktop hardware. With the inclusion of over voltage, over power and short-circuit protection - the Litepower GEN2 series sets a new benchmark in offering industry leading reliability and performance at an affordable price.
The Thermaltake Litepower GEN2 series is ideal for basic desktop systems with lower power level consumption - where efficiency, reliability and low noise is of utmost importance. The Litepower GEN2 series are built using the latest ATX 12V V2.3 standard and include a dedicated +12V rail, guaranteeing you compatibility with all the latest desktop hardware. With the inclusion of over voltage, over power and short-circuit protection - the Litepower GEN2 series sets a new benchmark in offering industry leading reliability and performance at an affordable price.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 450 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 396 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 33 A |
| Max output current (+5V) | 14 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 45 cm |
| CPU power connector (4+4 pin) |
 |
| ATX Power connector (24-pin) |
|
| Floppy disk drive connector |
|
| Floppy disk drive cable length | 15 cm |
| Cabling type | Non-Modular |
| Performance | |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 2.3 |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Certification | CE, TUV SUD, CB, EAC, RCM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan speed | 1800 |
| Fan location | Top |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| SKU | 255388 |
| MPN | PS-LTP-0450NPCNAU-2 |
| Brand | Thermaltake |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.thermaltake.com.au/ |
