Material: Copper; Pump Motor Speed: 3200 RPM; Rated Voltage: 12 V; Rated Current: 0.38A; Power Input: 4.56 W; CPU Display: Rated Voltage: 5 V; Power Input: 1.15 W; Display Type: 2.1” TFT-LCD (IPS); Display Resolution: 480x480 (RGB) px Rotation Angle: 0°~270° Interface : Micro USB to USB (9PIN)
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |

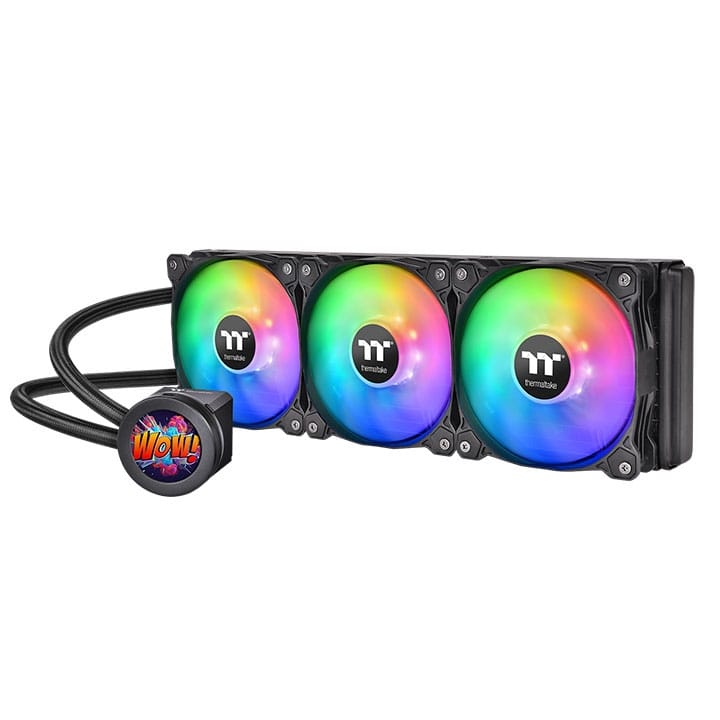

| Type Characteristics of the device. | All-in-one liquid cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2 |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 34.1 dB |
| Maximum airflow | 76.98 cfm |
| Maximum air pressure | 2.66 mmH2O |
| Fan diameter 2 | 12 cm |
| Fan 2 rotational speed (min) | 500 RPM |
| Fan 2 rotational speed (max) | 2000 RPM |
| Fan 2 noise level (high speed) | 34.1 dB |
| Fan 2 maximum airflow | 76.98 cfm |
| Fan 2 maximum air pressure | 2.66 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Fan noise level (max) | 34.1 dB |
| Pump connector | 4-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed (max) | 3200 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 2000 RPM |
| Fan static pressure | 2.66 mmH2O |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium, Copper, Rubber |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Blue, Green, Red |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Display size (HxV) | 480 x 480 mm |
| Power | |
| Rated voltage | 12 V |
| Starting voltage | 5 V |
| Fan power consumption | 4.2 W |
| Pump power consumption | 4.58 W |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.38 A |
| Pump voltage | 12 V |
| Pump current | 380 mA |
| Fan voltage | 12 V |
| Fan current | 0.35 A |
| Weight & dimensions | |
| Radiator width | 12 cm |
| Radiator depth | 39.5 cm |
| Radiator height | 2.7 cm |
| Tube length | 40 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan thickness | 2.5 cm |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
| Other features | |
| Tube material The material the tube is made of. | Rubber |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| SKU | 705269 |
| MPN | CL-W350-PL12SW-A |
| Brand | Thermaltake |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.thermaltake.com.au/ |
