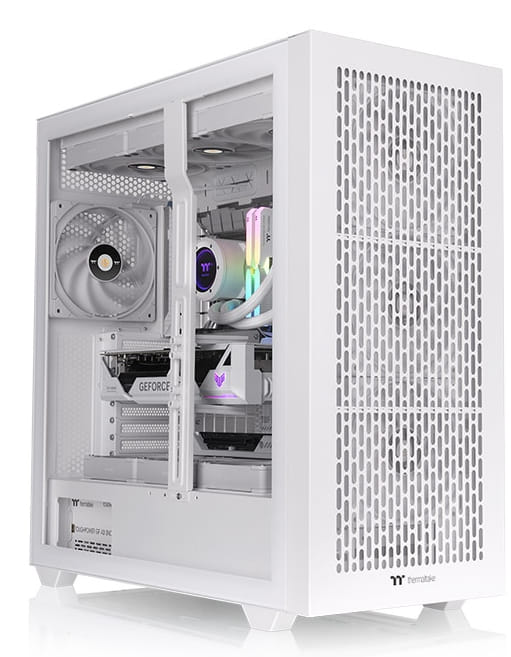

Thermaltake AX500, Full Tower, PC, White, ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB, SPCC, Steel, Tempered glass, 18,5 cm
Compatible with Hidden-Connector Motherboards
The AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.
Excellent Radiator Support
Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.
Four 140mm CT140 Fans Pre-installed
Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.
Superior Cooling Support
Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.
GPU Holder
The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.
Storage Support
Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5" or two 2.5" hard drives.
Tidy Cable Management
The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.
Superior Hardware Support
The AX500 Snow Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.
Perfect Dust Protection
The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.
Handy I/O Ports
The top I/O ports include:
- 1 x USB 3.2 Gen 2 Type-C
- 2 x USB 3.0 Type-A
- HD Audio
- Reset Button
- HDD LED
- Power Button with LED
The AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.
Excellent Radiator Support
Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.
Four 140mm CT140 Fans Pre-installed
Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.
Superior Cooling Support
Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.
GPU Holder
The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.
Storage Support
Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5" or two 2.5" hard drives.
Tidy Cable Management
The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.
Superior Hardware Support
The AX500 Snow Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.
Perfect Dust Protection
The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.
Handy I/O Ports
The top I/O ports include:
- 1 x USB 3.2 Gen 2 Type-C
- 2 x USB 3.0 Type-A
- HD Audio
- Reset Button
- HDD LED
- Power Button with LED
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | SPCC, Steel, Tempered glass |
| Form factor The shape or design of the product. | Full Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Supported motherboard form factors Design of the supported motherboards. | ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 5 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 8 |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 46 cm |
| Maximum PSU length | 20 cm |
| Ports & interfaces | |
| Audio output The type of audio output that the device produces, and the connector(s). |
 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Cooling | |
| Front fans installed | 4 x 140 mm |
| Number of front fans supported (max) | 4 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Fan speed | 0 - 1500 RPM |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360,420 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 550 mm |
| Depth The distance from the front to the back of something. | 248 mm |
| Height The measurement of the product from head to foot or from base to top. | 548 mm |
| Material thickness | 4 mm |
| SKU | 818474 |
| MPN | CA-11D-00F6WN-00 |
| Brand | Thermaltake |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.thermaltake.com.au/ |
