Thermaltake 750W Smart Pro RGB Power Supply

Name: Thermaltake 750W Smart Pro RGB Power Supply
Brand: Thermaltake
SKU: 222089
Price: 149 AUD
Availability: OutOfStock

Item No:

222089

MPN:

PS-SPR-0750FPCBAU-R

$149^.00

This product is currently not available!

Shipping Information

Store Availability

Product Summary Summary Details Details Specifications Specs Reviews Reviews

80 PLUS Bronze, 750W, Modular, Riing 14 RGB Fan, 4x PCI-E 6+2P

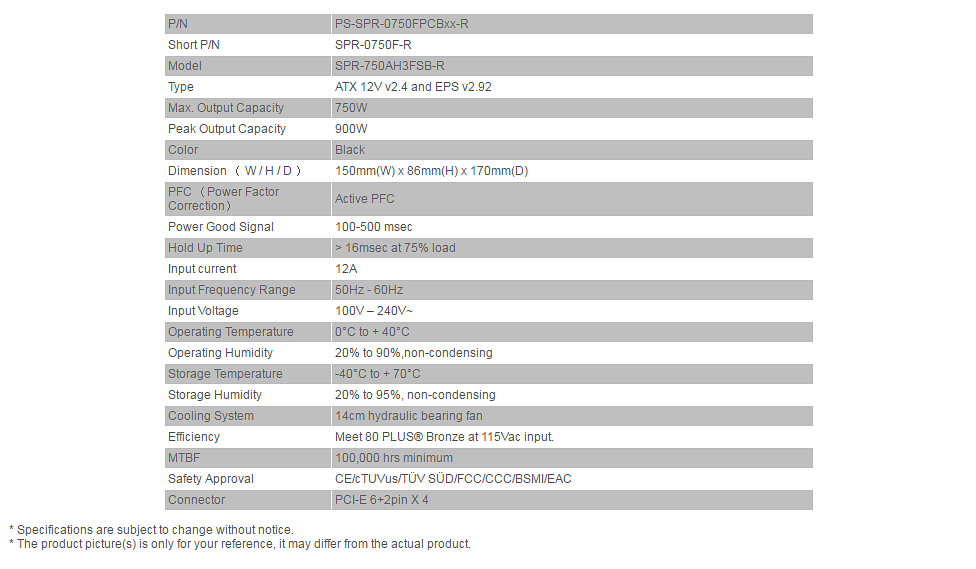

Power
Total power The total power that is needed by the device, or the total power produced by the device.	750 W
Peak power This is the maximum power required by the device or peak music power.	900 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	12 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	750 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	22 A
Max output current (+12V)	62.5 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Hold time	16 ms
Efficiency	85%
Power Good signal delay range	100 - 500 ms
Power protection features Features that protect the device against power problems e.g. overload.	Over current, Over power, Over voltage, Short circuit

Ports & interfaces
Motherboard power connector The way in which the motherboard is connected to the power supply.	24-pin ATX
Number of SATA power connectors	9
Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply.	6
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)
Floppy drive power connector	1
Floppy disk drive connector
Cabling type	Modular

Performance
80 PLUS certification	80 PLUS Bronze
Purpose What the product is used for.	PC
Power supply unit (PSU) form factor	ATX
ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3.	2.4
EPS version	2.92
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	100000 h
Safety List of regulatory safety standards for all countries in which this product has been certified.	CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Cooling type The method used to cool the device or to cool the air around the device.	Active
Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.	14 cm
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	1 fan(s)
Fan location	Top
Illumination The device has illumination.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	20 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	150 mm
Depth The distance from the front to the back of something.	170 mm
Height The measurement of the product from head to foot or from base to top.	86 mm

Packaging data
Package type The type of product package e.g. box.	Box

Other features
Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly.	Multi
Manual
