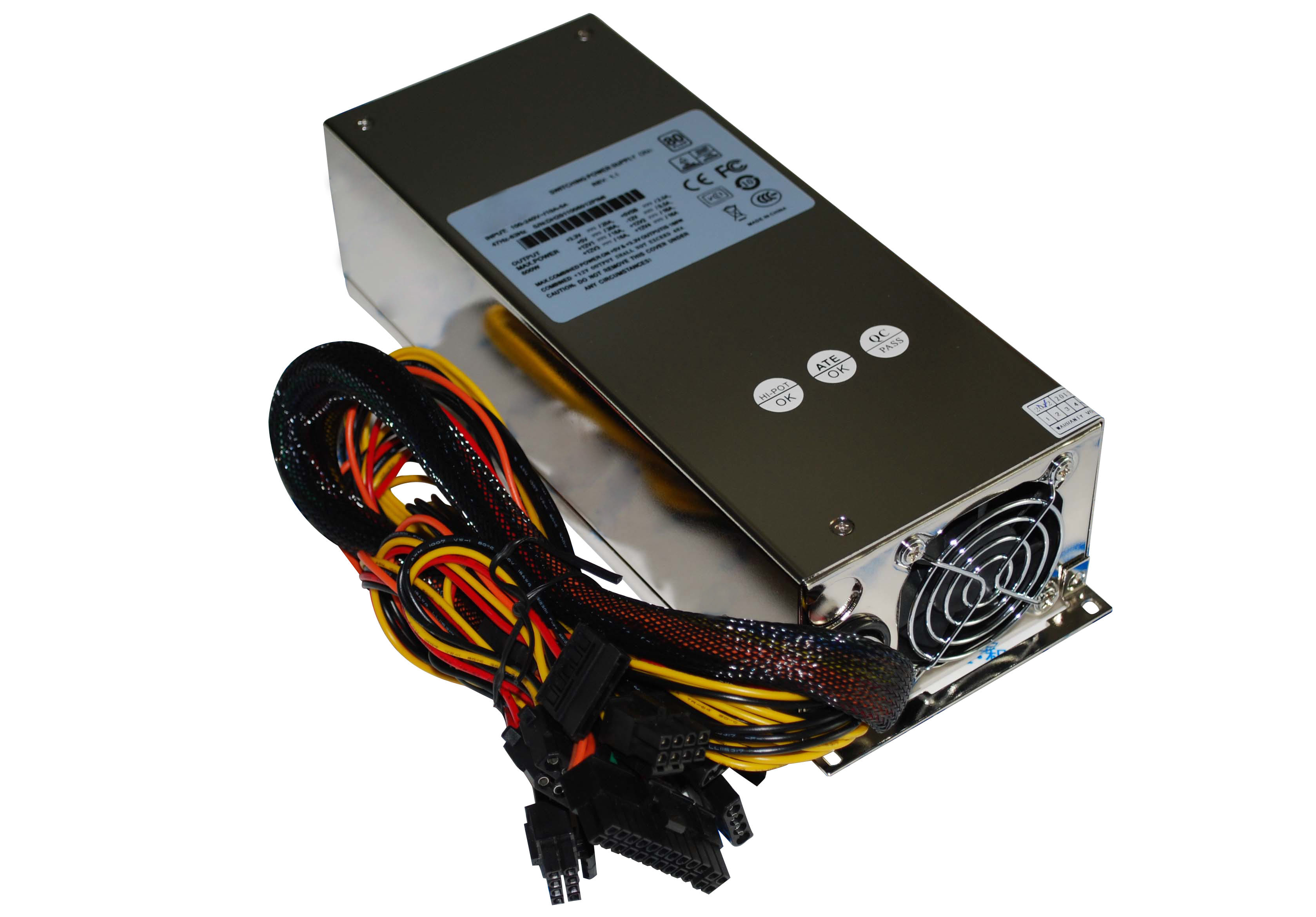

TGC -SG2U700, 600 W, 90 - 264 V, 47 - 63 Hz, Active, 20 A, 16 A
TGC -SG2U700. Total power: 600 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: Server, Power supply unit (PSU) form factor: 2U, 80 PLUS certification: 80 PLUS. Product colour: Silver. Width: 100 mm, Depth: 240 mm, Height: 70.5 mm
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 600 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 16 A |
| Max output current (+12V3) | 16 A |
| Max output current (+12V4) | 16 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Efficiency | 80% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| CPU power connector (4+4 pin) |
 |
| Floppy disk drive connector |
 |
| Performance | |
| 80 PLUS certification | 80 PLUS |
| Purpose What the product is used for. | Server |
| Power supply unit (PSU) form factor | 2U |
| Bearing technology | DBB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Certification | CE, FCC, CB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 80 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100 mm |
| Depth The distance from the front to the back of something. | 240 mm |
| Height The measurement of the product from head to foot or from base to top. | 70.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.3 kg |
| SKU | 695048 |
| MPN | TGC-SG2U700 |
| Brand | TGC |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.tgcipc.com/ |
