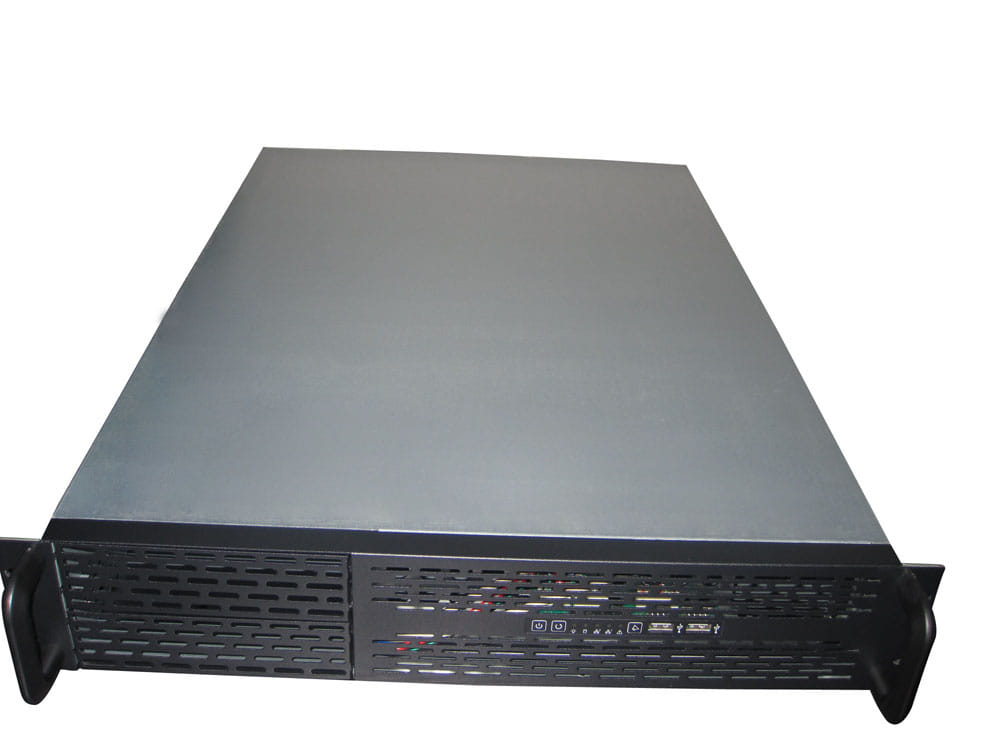

TGC Rack Mountable Server Chassis 2U 650mm Depth, 2x Ext 5.25' Bays, 6x Int 3.5' Bays, 7x Low Profile PCIE Slots, ATX PSU/MB
| Design | |
| Form factor The shape or design of the product. | Rack |
| Type Characteristics of the device. | Server |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported motherboard form factors Design of the supported motherboards. | ATX, CEB, EEB, micro ATX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 6 |
| Number of 5.25" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 5.25" drive bay, also known as full-height bays, were found in old PCs in the early to mid-1980s. They were 3¼″ high by 5¾″ wide, and up to 8″ deep (83 × 146 × 200 mm), used mainly for hard disks and floppy disk drives. | 2 |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Rack capacity The spase that device fill in rack. | 2U |
| Reset button |
|
| On/off button |
|
| LED indicators | HDD, Network |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Cooling | |
| Number of side fans supported (max) | 4 |
| Side fans diameters supported | 80 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 3.5,5.25" |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 483 mm |
| Depth The distance from the front to the back of something. | 650 mm |
| Height The measurement of the product from head to foot or from base to top. | 88 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.4 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 12 kg |
| SKU | 442346 |
| MPN | TGC-23650 |
| Brand | TGC |
| Product Condition | Brand New/Unused |
| Product Use | General |
