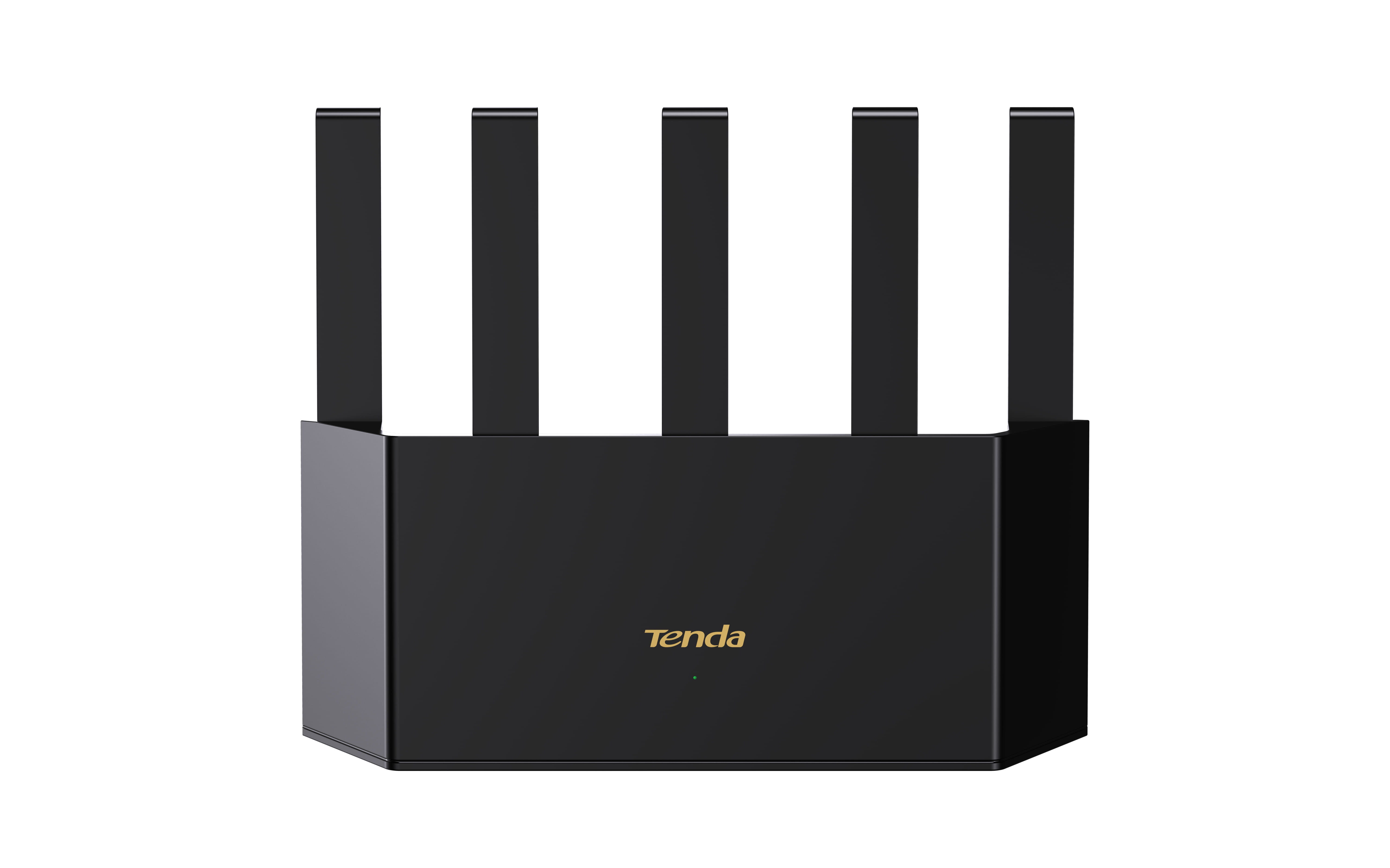

Tenda TX12L Pro, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, Black, Tabletop router
Broader Range, Faster Experience
AX3000 Dual Band Gigabit Wi-Fi 6 Router
Smooth Internet Experience with AX3000
The TX12L Pro has a dual-band concurrent rate of up to 2976Mbps, with 2402Mbps for the 5GHz band and 574Mbps for the 2.4GHz band. It also supports an ultra-large 160MHz bandwidth, which can be used with mobile phones that support the same bandwidth. This allows the signal to travel freely over a wider channel, maximizing the performance of your devices and enhancing your internet experience.
Ultra Speed with Powerful 5GHz Band
The 5GHz single-band wireless theoretical rate is equivalent to the sum of three AC1200 routers, truly running at full Gigabit bandwidth, allowing you to smoothly experience applications such as short videos, 4K audio and video, online games, live broadcasts and large file downloads.
Dual-Core Processor, Smooth Network
TX12L Pro is equipped with a 1.3GHz dual-core CPU, which uses an advanced 12nm process. Its comprehensive computing power is 30% higher than that of the old dual-core AX3000 router. This makes the router consume less power and generate less heat, and its strength ensures a stable and smooth network.
360Deg Full Signal Coverage
TX12L Pro has five external high-gain omnidirectional antennas, 3 transmitters and 3 receivers in the 5GHz frequency band, which greatly improves the signal strength in high-speed frequency bands, effectively eliminates side signal blind spots, truly achieves 360Deg full signal coverage, and provides a better networking experience.
Strong Wi-Fi Signal for Multi-Wall Penetration
TX12L Pro has 5 built-in high-performance signal enhancement modules. Compared with the 4 FEMs of the old AX3000 router, the signal strength is effectively increased by 3dB, comprehensively improving signal transmission and reception sensitivity, and achieving whole-house Wi-Fi 6 coverage for medium and large apartments. There is a good signal wherever you go.
Ultra-Wide Coverage with Wi-Fi+
Supporting Wi-Fi+ networking function, TX12L Pro can be interconnected with Tenda router products that also support Wi-Fi+ function with one click, easily extending Wi-Fi coverage and achieving high-speed Wi-Fi 6 Internet access for larger apartments throughout the house.
More Enjoyable with Multiplayer
Using OFDMA+MU-MIMO technology, more devices can access the Internet at the same time, the transmission efficiency is significantly improved, the delay is greatly reduced, and multi-player games will not stutter.
Freely Switch between 3 Modes
TX12L Pro supports 3 modes: Router, AP and Repeater. It is easy to operate and can easily adapt to your various Internet scenarios.
Full Gigabit Ports for High Traffic
Supports broadband access within 1000M to meet broadband upgrade needs in the next 2-3 years. Achieve faster and more stable data transmission through LAN port connection, making full use of every megabit of the operator's bandwidth.
Rich Functions, Easy to Master
Using Tenda WiFi APP or Web management page, you can instantly have a variety of practical functions: Child's internet access control, preventing network addiction. Quick self-test of intelligent diagnosis, performing network repair. More features are coming soon. Please stay tuned
Strong Heat Dissipation Performance
The new vertical design significantly improves heat dissipation compared to traditional routers, effectively ensuring smooth and stable operation of the network for a long time.
AX3000 Dual Band Gigabit Wi-Fi 6 Router
Smooth Internet Experience with AX3000
The TX12L Pro has a dual-band concurrent rate of up to 2976Mbps, with 2402Mbps for the 5GHz band and 574Mbps for the 2.4GHz band. It also supports an ultra-large 160MHz bandwidth, which can be used with mobile phones that support the same bandwidth. This allows the signal to travel freely over a wider channel, maximizing the performance of your devices and enhancing your internet experience.
Ultra Speed with Powerful 5GHz Band
The 5GHz single-band wireless theoretical rate is equivalent to the sum of three AC1200 routers, truly running at full Gigabit bandwidth, allowing you to smoothly experience applications such as short videos, 4K audio and video, online games, live broadcasts and large file downloads.
Dual-Core Processor, Smooth Network
TX12L Pro is equipped with a 1.3GHz dual-core CPU, which uses an advanced 12nm process. Its comprehensive computing power is 30% higher than that of the old dual-core AX3000 router. This makes the router consume less power and generate less heat, and its strength ensures a stable and smooth network.
360Deg Full Signal Coverage
TX12L Pro has five external high-gain omnidirectional antennas, 3 transmitters and 3 receivers in the 5GHz frequency band, which greatly improves the signal strength in high-speed frequency bands, effectively eliminates side signal blind spots, truly achieves 360Deg full signal coverage, and provides a better networking experience.
Strong Wi-Fi Signal for Multi-Wall Penetration
TX12L Pro has 5 built-in high-performance signal enhancement modules. Compared with the 4 FEMs of the old AX3000 router, the signal strength is effectively increased by 3dB, comprehensively improving signal transmission and reception sensitivity, and achieving whole-house Wi-Fi 6 coverage for medium and large apartments. There is a good signal wherever you go.
Ultra-Wide Coverage with Wi-Fi+
Supporting Wi-Fi+ networking function, TX12L Pro can be interconnected with Tenda router products that also support Wi-Fi+ function with one click, easily extending Wi-Fi coverage and achieving high-speed Wi-Fi 6 Internet access for larger apartments throughout the house.
More Enjoyable with Multiplayer
Using OFDMA+MU-MIMO technology, more devices can access the Internet at the same time, the transmission efficiency is significantly improved, the delay is greatly reduced, and multi-player games will not stutter.
Freely Switch between 3 Modes
TX12L Pro supports 3 modes: Router, AP and Repeater. It is easy to operate and can easily adapt to your various Internet scenarios.
Full Gigabit Ports for High Traffic
Supports broadband access within 1000M to meet broadband upgrade needs in the next 2-3 years. Achieve faster and more stable data transmission through LAN port connection, making full use of every megabit of the operator's bandwidth.
Rich Functions, Easy to Master
Using Tenda WiFi APP or Web management page, you can instantly have a variety of practical functions: Child's internet access control, preventing network addiction. Quick self-test of intelligent diagnosis, performing network repair. More features are coming soon. Please stay tuned
Strong Heat Dissipation Performance
The new vertical design significantly improves heat dissipation compared to traditional routers, effectively ensuring smooth and stable operation of the network for a long time.
| WAN connection | |
| Ethernet WAN |
 |
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 1024-QAM, OFDMA |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Port forwarding |
|
| Dynamic DNS (DDNS) |
|
| Static route |
|
| VPN server |
|
| VPN support | IPSec Transparent Transmission PPTP Transparent Transmission L2TP Transparent Transmission PPTP VPN Server PPTP VPN Client L2TP VPN Client |
| Maximum Tx power (2.4 GHz) | 20 dBmW |
| Maximum Tx power (5 GHz) | 23 dBmW |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 3 |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| Management features | |
| Bandwidth control |
|
| Reset button |
|
| WPS push button |
|
| MU-MIMO technology |
|
| MIMO |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA2-PSK, WPA3-SAE, WPS |
| Firewall |
|
| Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication. | ICMP Flood Attack Defense, TCP Flood Attack Defense, UDP Flood Attack Defense, Block Ping From WAN |
| Guest access |
|
| Filtering |
|
| URL filtering |
|
| DMZ support |
|
| Protocols | |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Universal Plug and Play (UPnP) |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Product type The sub-category of the product. | Tabletop router |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included |
|
| Quick installation guide |
|
| Antenna | |
| Antenna design | External |
| Antennas quantity | 5 |
| Features | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 1300 MHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 2 |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Power | |
| Power source type What the power source is. | DC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 12 V |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 244 mm |
| Depth The distance from the front to the back of something. | 56 mm |
| Height The measurement of the product from head to foot or from base to top. | 200 mm |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| SKU | 817095 |
| MPN | TX12L Pro |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Product Use | General |
