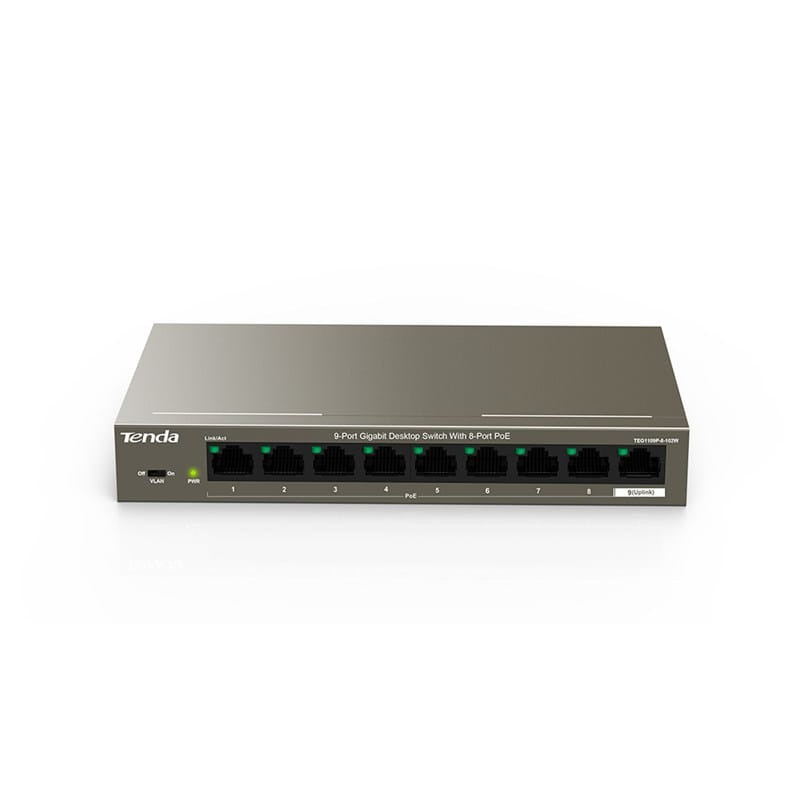

Tenda TEG1109P-8-102W, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for uplink port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easier configure, flexible extend network without being limited by the power line layout, plug and play, helping SMB,hotel, shopping mall,school to build high-security and reliability network of wireless cover and HD monitor.
Excellent Lightning Protection
The switch supports 6 kV lightning protection for uplink port, protecting the switch from thunderstorms and making it more stable.
Outstanding PoE Power Supply
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.
What's Special for TEG1109P-8-102W :
Enjoy Super HD Video Screen
2Mb built-in packet buffer outstand in comparison, ensuring smooth transmission of large files and HD videos even when HD IP cameras of 500W are working simultaneously.
Integrated with Smart Power Management
Chip Makes the Switch Get Rid of Overload
It includes chips with smart power management function and integrated professional chip control algorithm,which can accurately calculate the output power. When the power of the receiving equipment exceeds the rated power (92W) of the PoE switch, the low priority port will automatically power off to avoid the over-run of the equipment and prolong the service life of the equipment.
What's Special for TEG1109P-8-102W :
Simple Port VLAN Setup
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.
Excellent Lightning Protection
The switch supports 6 kV lightning protection for uplink port, protecting the switch from thunderstorms and making it more stable.
Outstanding PoE Power Supply
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.
What's Special for TEG1109P-8-102W :
Enjoy Super HD Video Screen
2Mb built-in packet buffer outstand in comparison, ensuring smooth transmission of large files and HD videos even when HD IP cameras of 500W are working simultaneously.
Integrated with Smart Power Management
Chip Makes the Switch Get Rid of Overload
It includes chips with smart power management function and integrated professional chip control algorithm,which can accurately calculate the output power. When the power of the receiving equipment exceeds the rated power (92W) of the PoE switch, the low priority port will automatically power off to avoid the over-run of the equipment and prolong the service life of the equipment.
What's Special for TEG1109P-8-102W :
Simple Port VLAN Setup
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 9 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Auto-negotiation |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 18 Gbit/s |
| Forwarding rate | 13.39 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Store-and-forward |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Gray |
| LED indicators | Activity,Link,Power |
| Certification | FCC、CE、ROHS、CCC |
| Performance | |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 50000 h |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 51 V |
| Input current | 2 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 102 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 92 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 177.5 mm |
| Depth The distance from the front to the back of something. | 104 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| SKU | 421764 |
| MPN | TEG1109P-8-102W |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
