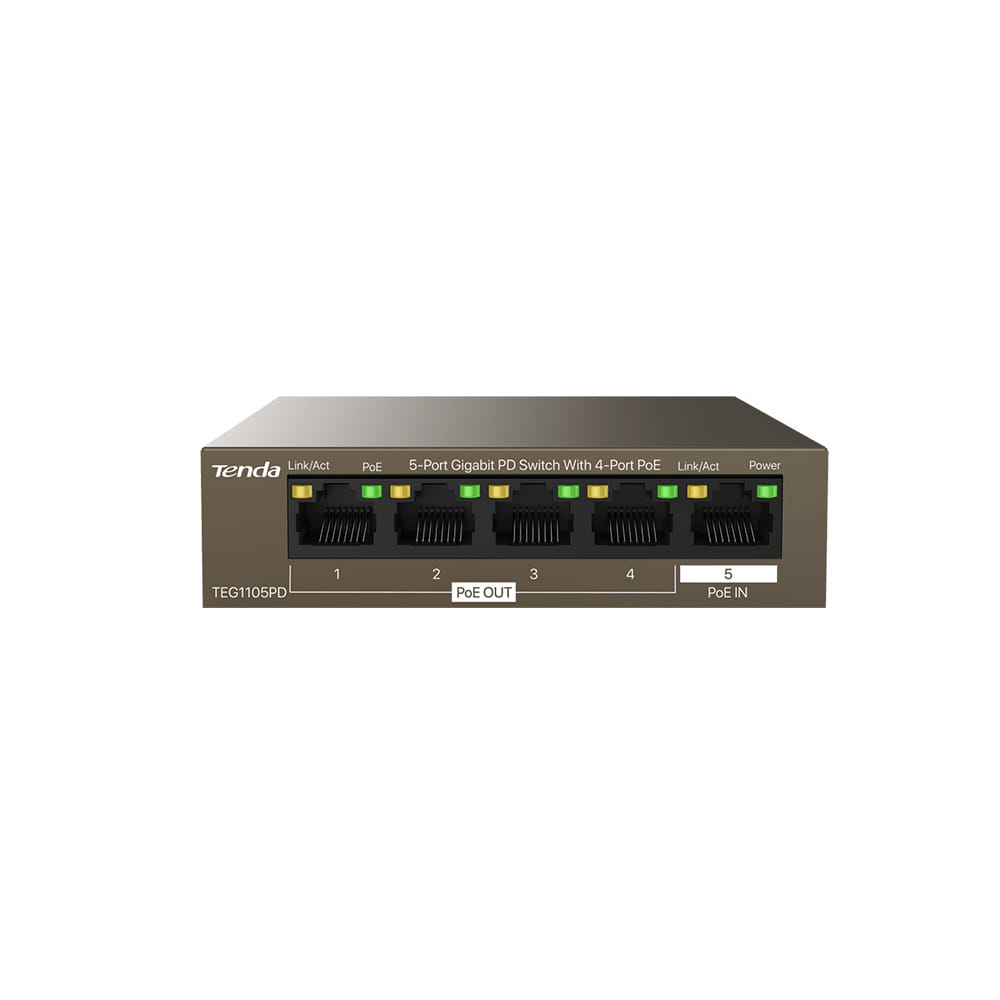

Tenda TEG1105PD, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Integrated PSE & PD,No power adapter required
5-Port Gigabit PD Switch With 4-Port PoE
5 Gigabit Ports, Integrated PSE & PD Design
The 5 ports of TEG1105PD are all gigabit ports, with 4 PoE OUT ports (ports 1 to 4) and 1 PoE IN port (port 5). The switch can be powered by the IEEE 802.3af/at compliant PSE through port 5 with an Ethernet cable, and supply power to such PDs as low-power APs and IP cameras through ports 1 to 4.
Gigabit speed without reduction within 200m, Stable transmission without dropping
As a relay, the switch can extend the data transmission distance to 325 meters at most and offer long-distance PoE power supply through multiple PoE ports. Suitable for medium and long-distance wired monitoring scenarios or low-power wireless coverage scenarios such as enterprise parks, factories, schools, etc.
Cut costs,Practical & Stable,Your Better Choice
TEG1105PD does not require independent power supply, just plug and play, no need to consider the power supply during the network deployment; in addition, there is no need to pull out multiple network cables from the PoE switch (PSE) in the data equipment room to supply power to multiple PoE powered devices (PD). Therefore, the network deployment cost can be greatly saved while ensuring the quality of the project.
325m long-distance PoE relay, No power adapter required, Easy to get power supply, Suitable & Practical for your networking.
6KV lightning protection, Stable operation in thunderstorm environment
This switch provides short circuit protection for PSE and 6 kV lightning protection for all ports, protecting the switch itself to operate steadily from surge and lightning damages in thunderstorms.
Small & Delicate,Easy to be installed in the weak electric/waterproof box
TEG1105PD has a compact shell, about the size of two splicing bank cards, and can be easily installed in a weak electric box or an outdoor waterproof box. All-steel shell, sturdy and durable.
Quiet & Heat dissipation
Steel Shell, Fanless Design, Low Power Consumption
Safer
Network Construction Without Strong Electricity
Stable Operation
Few failure points, easy maintenance
5-Port Gigabit PD Switch With 4-Port PoE
5 Gigabit Ports, Integrated PSE & PD Design
The 5 ports of TEG1105PD are all gigabit ports, with 4 PoE OUT ports (ports 1 to 4) and 1 PoE IN port (port 5). The switch can be powered by the IEEE 802.3af/at compliant PSE through port 5 with an Ethernet cable, and supply power to such PDs as low-power APs and IP cameras through ports 1 to 4.
Gigabit speed without reduction within 200m, Stable transmission without dropping
As a relay, the switch can extend the data transmission distance to 325 meters at most and offer long-distance PoE power supply through multiple PoE ports. Suitable for medium and long-distance wired monitoring scenarios or low-power wireless coverage scenarios such as enterprise parks, factories, schools, etc.
Cut costs,Practical & Stable,Your Better Choice
TEG1105PD does not require independent power supply, just plug and play, no need to consider the power supply during the network deployment; in addition, there is no need to pull out multiple network cables from the PoE switch (PSE) in the data equipment room to supply power to multiple PoE powered devices (PD). Therefore, the network deployment cost can be greatly saved while ensuring the quality of the project.
325m long-distance PoE relay, No power adapter required, Easy to get power supply, Suitable & Practical for your networking.
6KV lightning protection, Stable operation in thunderstorm environment
This switch provides short circuit protection for PSE and 6 kV lightning protection for all ports, protecting the switch itself to operate steadily from surge and lightning damages in thunderstorms.
Small & Delicate,Easy to be installed in the weak electric/waterproof box
TEG1105PD has a compact shell, about the size of two splicing bank cards, and can be easily installed in a weak electric box or an outdoor waterproof box. All-steel shell, sturdy and durable.
Quiet & Heat dissipation
Steel Shell, Fanless Design, Low Power Consumption
Safer
Network Construction Without Strong Electricity
Stable Operation
Few failure points, easy maintenance
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 5 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T,1000BASE-T |
| MAC address auto-learning supported |
 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 10 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 2000 entries |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet buffer memory | 1 MB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Brown |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators | Link, PoE, Power |
| Certification | CQC, FCC, CE, RoHS |
| Power | |
| Power supply included There is a power supply with this product. |
|
| DC input voltage | 50 - 57 V |
| Input current | 0.6 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 4 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100 mm |
| Depth The distance from the front to the back of something. | 100 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| SKU | 511826 |
| MPN | TEG1105PD |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tendacn.com/ |
