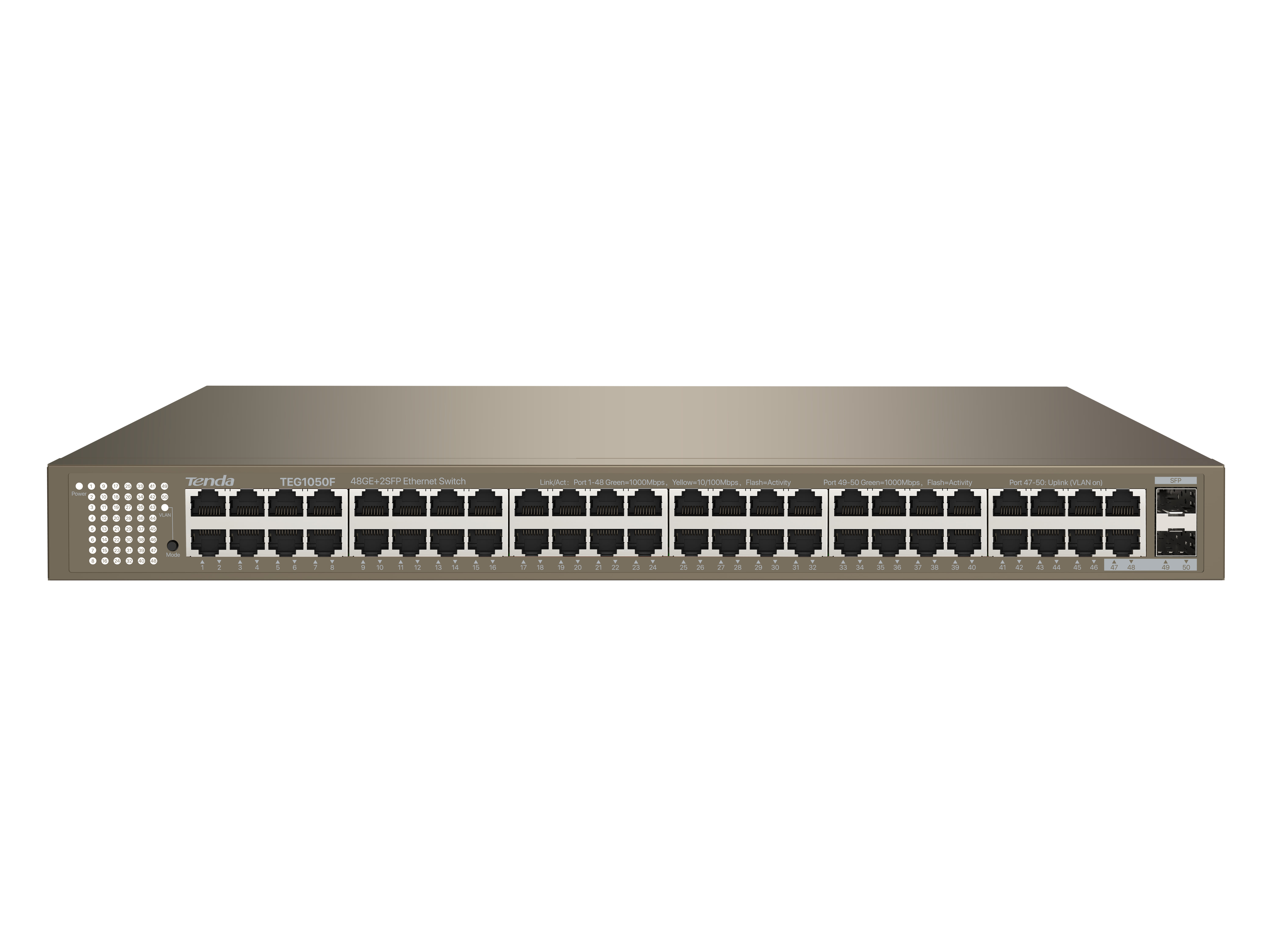

Tenda TEG1050F, Unmanaged, Gigabit Ethernet (10/100/1000), Rack mounting
No need for cascading with sufficient ports
Feature wire-speed forwarding for efficient communication
It provides 48 10/100/1000M auto-negotiation RJ45 ports and 2 1000M independent SFP slots, its full-duplex transmission rate can reach 2000 Mbps.
Compared with the traditional connection method of cascading two 24-port Gigabit switches, its high-density ports can easily solve the problems of large space occupation and high failure rate encountered in the project.
When multi ports synchronous forwarding, it can avoid network congestion caused by the uplink bandwidth bottleneck of two 24-port Gigabit cascading. All ports realize the wire-speed forwarding, and easily compatible with all office scenarios.
One-key VLAN, Enhance The Network Security
Under the VLAN mode, ports 1 to 46 cannot communicate with each other,
but can communicate with uplink ports 47 to 50, isolating broadcast storms and enhancing network security.
Dual 6kV Lightning Protection
This switch provides 6 kV lightning protection for both Ethernet ports and the power supply,
and supports over-temperature, over-voltage and surge current protection.
12 Mb Large Buffer
With 12 Mb large buffer, the switch can meet the needs of such network applications with burst traffic as search engine, IPTV, and P2P downloads, ensuring no packet loss, timely transmission of large files, and smoothness of videos.
Various Mounting Options
It supports Desktop/Wall/Rack Mounting,
and is flexible & practical enough for actual network engineering.
Feature wire-speed forwarding for efficient communication
It provides 48 10/100/1000M auto-negotiation RJ45 ports and 2 1000M independent SFP slots, its full-duplex transmission rate can reach 2000 Mbps.
Compared with the traditional connection method of cascading two 24-port Gigabit switches, its high-density ports can easily solve the problems of large space occupation and high failure rate encountered in the project.
When multi ports synchronous forwarding, it can avoid network congestion caused by the uplink bandwidth bottleneck of two 24-port Gigabit cascading. All ports realize the wire-speed forwarding, and easily compatible with all office scenarios.
One-key VLAN, Enhance The Network Security
Under the VLAN mode, ports 1 to 46 cannot communicate with each other,
but can communicate with uplink ports 47 to 50, isolating broadcast storms and enhancing network security.
Dual 6kV Lightning Protection
This switch provides 6 kV lightning protection for both Ethernet ports and the power supply,
and supports over-temperature, over-voltage and surge current protection.
12 Mb Large Buffer
With 12 Mb large buffer, the switch can meet the needs of such network applications with burst traffic as search engine, IPTV, and P2P downloads, ensuring no packet loss, timely transmission of large files, and smoothness of videos.
Various Mounting Options
It supports Desktop/Wall/Rack Mounting,
and is flexible & practical enough for actual network engineering.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 50 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| MAC address auto-learning supported |
 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 1000 Gbit/s |
| Forwarding rate | 74.4 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Store-and-forward |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| LED indicators |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 12 V |
| Input current | 4 A |
| Power consumption (max) The maximum amount of power used by the device. | 48 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 240 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| SKU | 697385 |
| MPN | TEG1050F |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tendacn.com/ |
