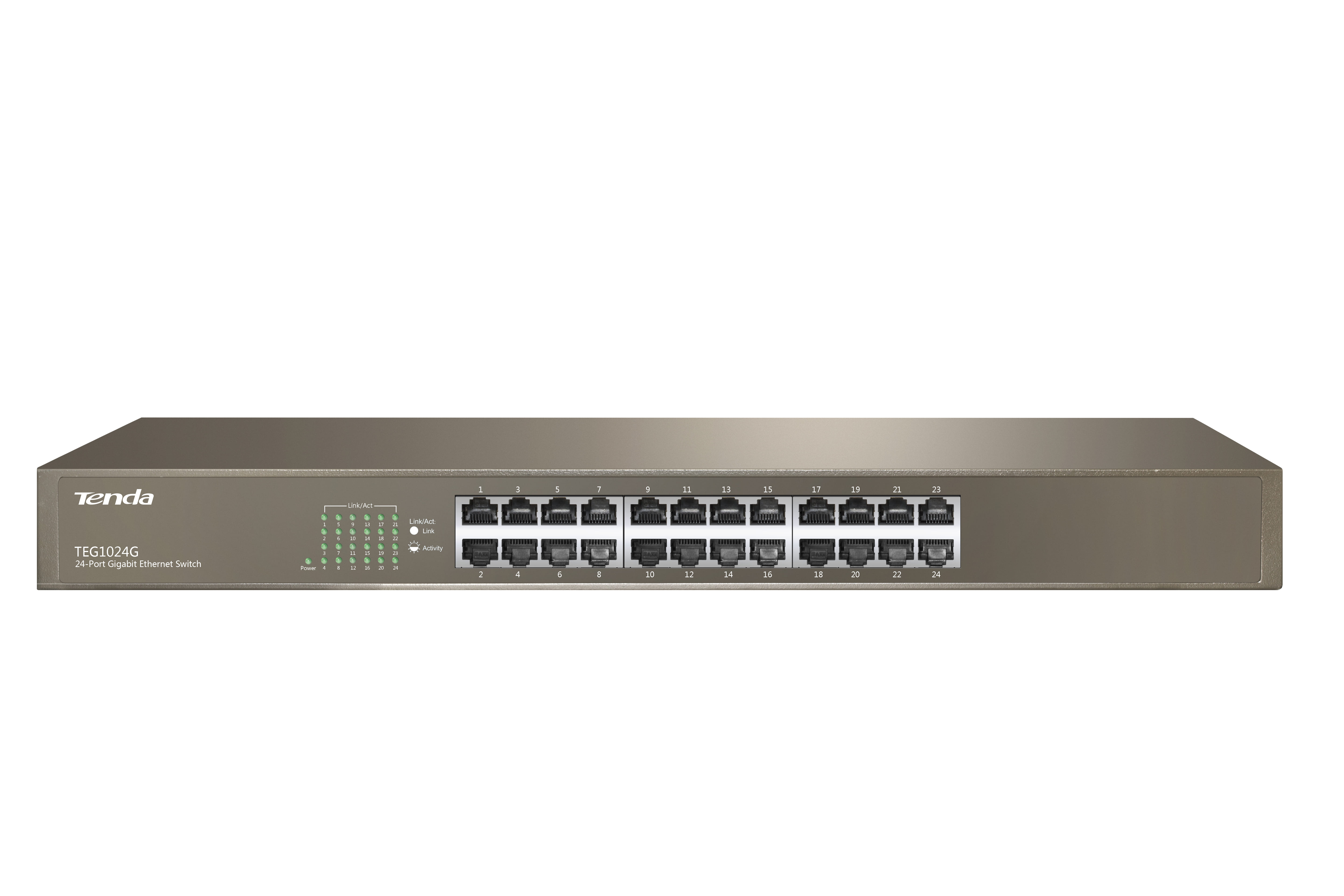

Tenda TEG1024G, Unmanaged, Full duplex, Rack mounting
The TEG1016G and TEG1024G are 16 and 24 port 1U rack-mountable Gigabit switches respectively. They support auto MDI/MDIX and store-and-forward switching. The TEG1016G has a 32Gbps backplane bandwidth while the TEG1024G has a 48Gbps backplane bandwidth. These switches are ready for deployment in server rooms or offices with a need to keep serious network traffic flowing.
- Complies with IEEE 802.3x full-duplex and flow control.
- NMA auto-negotiationSupports UPnP.
- Provides 16 (TEG1016G)/24 (TEG1024G) auto-negotiation 10/100/1000Mbps LAN ports.
- Supports auto MDI/MDIX.
- Non-blocking.
- Store-and-forward switchingIntegrated 8000 MAC address table.
- Internal power supply.
- Standard 19 rack-mountable metal case.
- Complies with IEEE 802.3x full-duplex and flow control.
- NMA auto-negotiationSupports UPnP.
- Provides 16 (TEG1016G)/24 (TEG1024G) auto-negotiation 10/100/1000Mbps LAN ports.
- Supports auto MDI/MDIX.
- Non-blocking.
- Store-and-forward switchingIntegrated 8000 MAC address table.
- Internal power supply.
- Standard 19 rack-mountable metal case.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| ExpressCard slot Port for an ExpressCard, which contain electronic circuitry and connectors to which external devices (peripherals) can be connected. The ExpressCard standard has replaced the PC Card (also known as PCMCIA) standard and has been used since 2006. |
 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Copper ethernet cabling technology | 1000BASE-T,100BASE-TX,10BASE-T |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Flow control support |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Data transmission | |
| Supported data transfer rates Rates at which data can be transferred. May vary according to network configurations. | 10/100/1000 Mbps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Security | |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Blue |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators | Link, Power |
| Certification | CE, RoHS |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Other features | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 208 x 440 x 44 mm |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Bandwidth | 48 Gbit/s |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Power LED |
|
| Size (imperial) Physical dimension. | 48.3 cm (19") |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| SKU | 511823 |
| MPN | TEG1024G |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tendacn.com/ |
