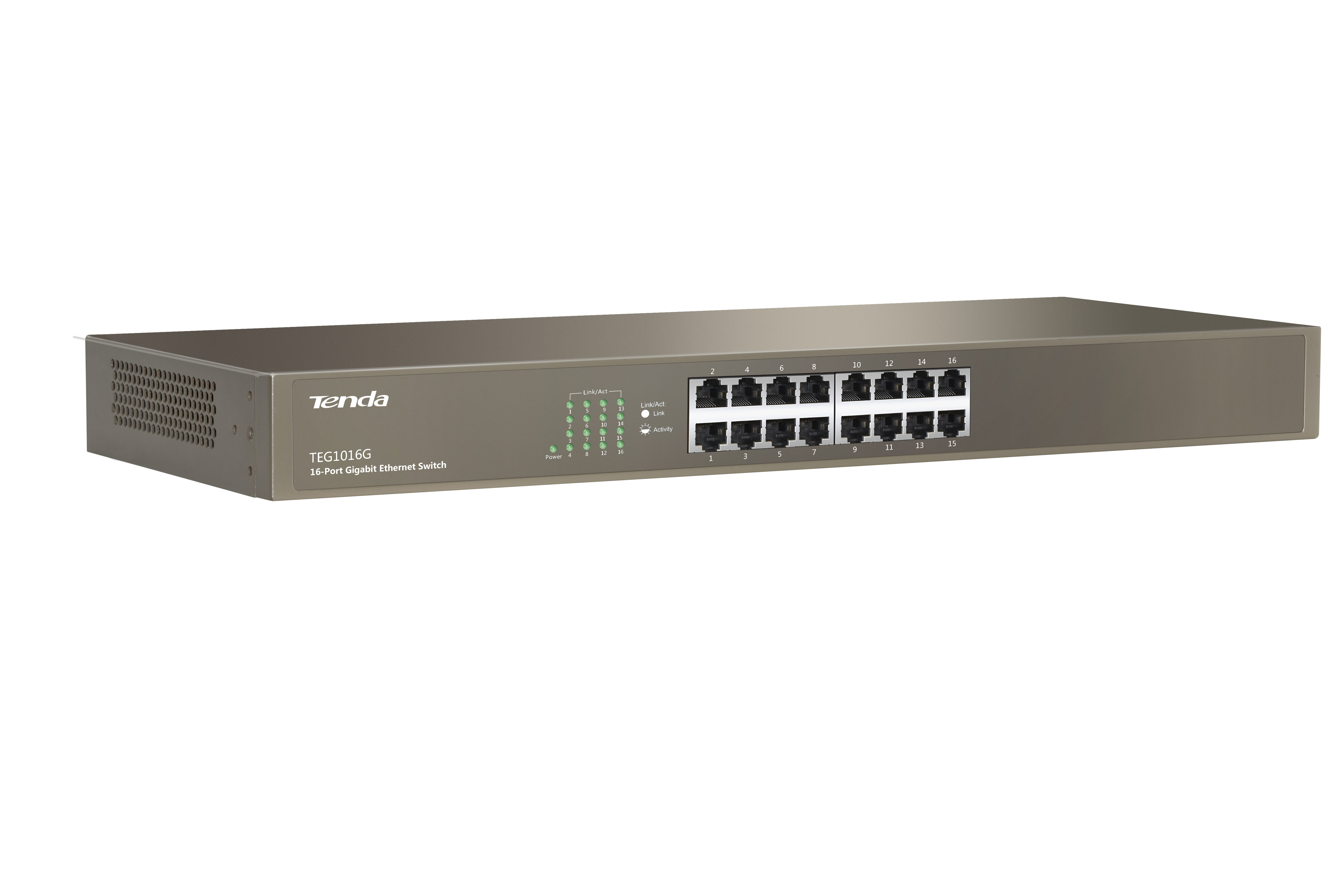

Tenda TEG1016G, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
The TEG1016G and TEG1024G are 16 and 24 port 1U rack-mountable Gigabit switches respectively. They support auto MDI/MDIX and store-and-forward switching. The TEG1016G has a 32Gbps backplane bandwidth while the TEG1024G has a 48Gbps backplane bandwidth. These switches are ready for deployment in server rooms or offices with a need to keep serious network traffic flowing.
- Complies with IEEE 802.3x full-duplex and flow control.
- NMA auto-negotiationSupports UPnP.
- Provides 16 (TEG1016G)/24 (TEG1024G) auto-negotiation 10/100/1000Mbps LAN ports.
- Supports auto MDI/MDIX.
- Non-blocking.
- Store-and-forward switchingIntegrated 8000 MAC address table.
- Internal power supply.
- Standard 19 rack-mountable metal case.
- Complies with IEEE 802.3x full-duplex and flow control.
- NMA auto-negotiationSupports UPnP.
- Provides 16 (TEG1016G)/24 (TEG1024G) auto-negotiation 10/100/1000Mbps LAN ports.
- Supports auto MDI/MDIX.
- Non-blocking.
- Store-and-forward switchingIntegrated 8000 MAC address table.
- Internal power supply.
- Standard 19 rack-mountable metal case.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 16 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 1000BASE-T,100BASE-TX,10BASE-T |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Flow control support |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Data transmission | |
| Supported data transfer rates Rates at which data can be transferred. May vary according to network configurations. | 10/100/1000 Mbps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Security | |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Blue |
| LED indicators | Link, Power |
| Certification | CE, RoHS |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output power The power that the device can produce. | 20 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 208 mm |
| Depth The distance from the front to the back of something. | 440 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Packaging data | |
| User guide |
|
| Other features | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 208 x 440 x 44 mm |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Bandwidth | 32 Gbit/s |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Power LED |
|
| Size (imperial) Physical dimension. | 48.3 cm (19") |
| SKU | 511817 |
| MPN | TEG1016G |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tendacn.com/ |
