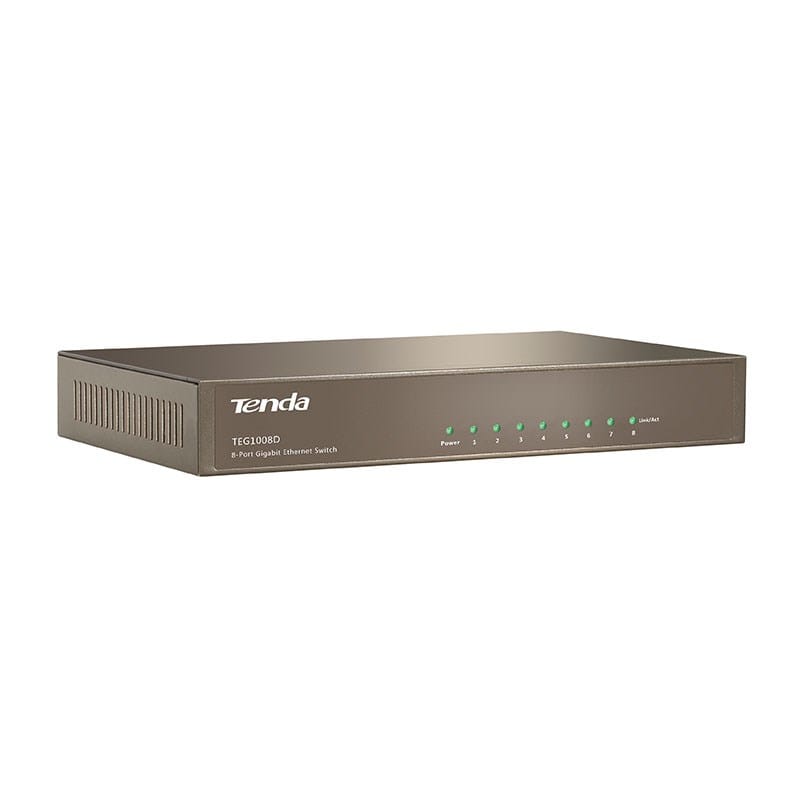

Interface: 8x 10/100/1000Mbps Auto-negotiation RJ45 Ports (Auto MDI/MDIX); Forwarding Speed: 14880pps (10Mbps), 148800pps (100Mbps), 1488000pps (1000Mbps); LED Indicators: 1x Power, 8x Link/Act; Switching Capacity: 16Gbps; MAC Address Table: 4K; Jumbo Frame: 9K; Includes a 9V1A Power Adapter; Lightning Protection: Up to 4KV for Ports
| WAN connection | |
| Ethernet WAN |
 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| DSL features | |
| Upstream data rate | 16384 Mbit/s |
| Downstream data rate | 11.9 Mbit/s |
| Management features | |
| Web-based management Using a website/web application to manage something. |
 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 8 |
| Protocols | |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Security | |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 4000 entries |
| Features | |
| Certification | FCC, CE, ROHS |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Gray |
| Housing material What the casing of the product is made of. | Metal |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 4 W |
| Power source type What the power source is. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 9 V |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 186.7 mm |
| Depth The distance from the front to the back of something. | 33.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 106.7 mm |
| SKU | 372176 |
| MPN | TEG1008D |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tendacn.com/ |
