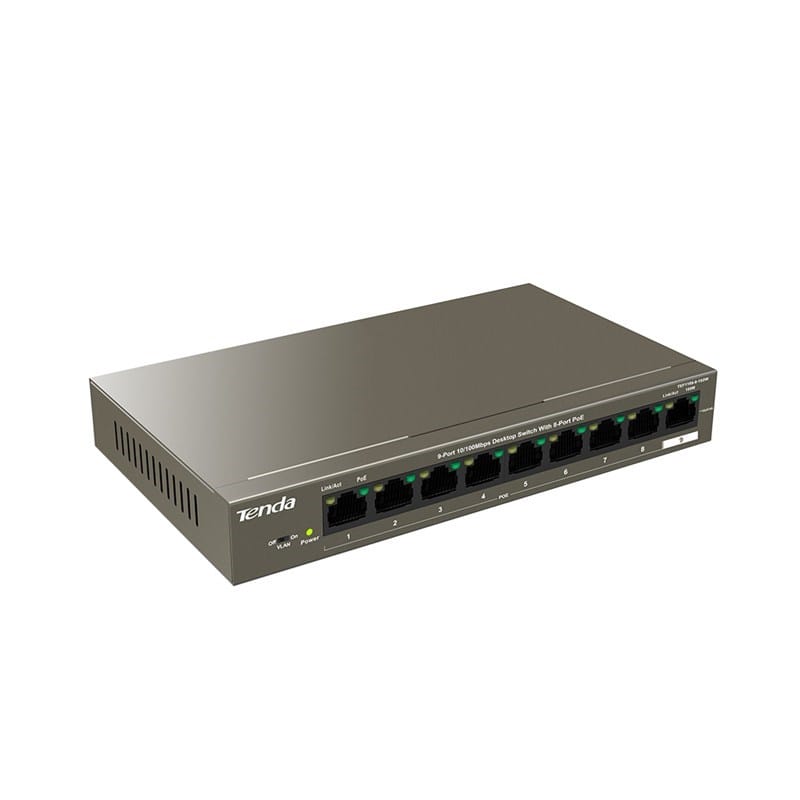

Interface: 8x 10/100 Base-T ports(Data/Power), 1x 10/100Base-T ports(Data); Exchange Capacity: 1.6 Gps; Packet Forwarding Rate: 1.34 Mbps; MAC Address Table: 2K; Lightning Protection: 6kV; LED Indicator: 9x Link/Act per device, 1x Power; Port 1-8 support IEEE802.3at/af PoE standard
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 9 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Fast Ethernet (10/100) |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
| Cable types supported | Cat5e |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Flow control support |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| MAC address auto-learning supported |
|
| MAC address auto-aging supported |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Optical fiber | |
| Transmission distance (max) | 0.25 km |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 1.6 Gbit/s |
| Forwarding rate | 1.34 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 2000 entries |
| Store-and-forward |
|
| Packet buffer memory | 1 MB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Metallic |
| LED indicators | Activity,Link,Power |
| Power | |
| Power supply included There is a power supply with this product. |
|
| Number of power supply units | 1 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Total Power over Ethernet (PoE) budget | 92 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 177.5 mm |
| Depth The distance from the front to the back of something. | 104 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| SKU | 372008 |
| MPN | TEF1109P-8-102W |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tendacn.com/ |
