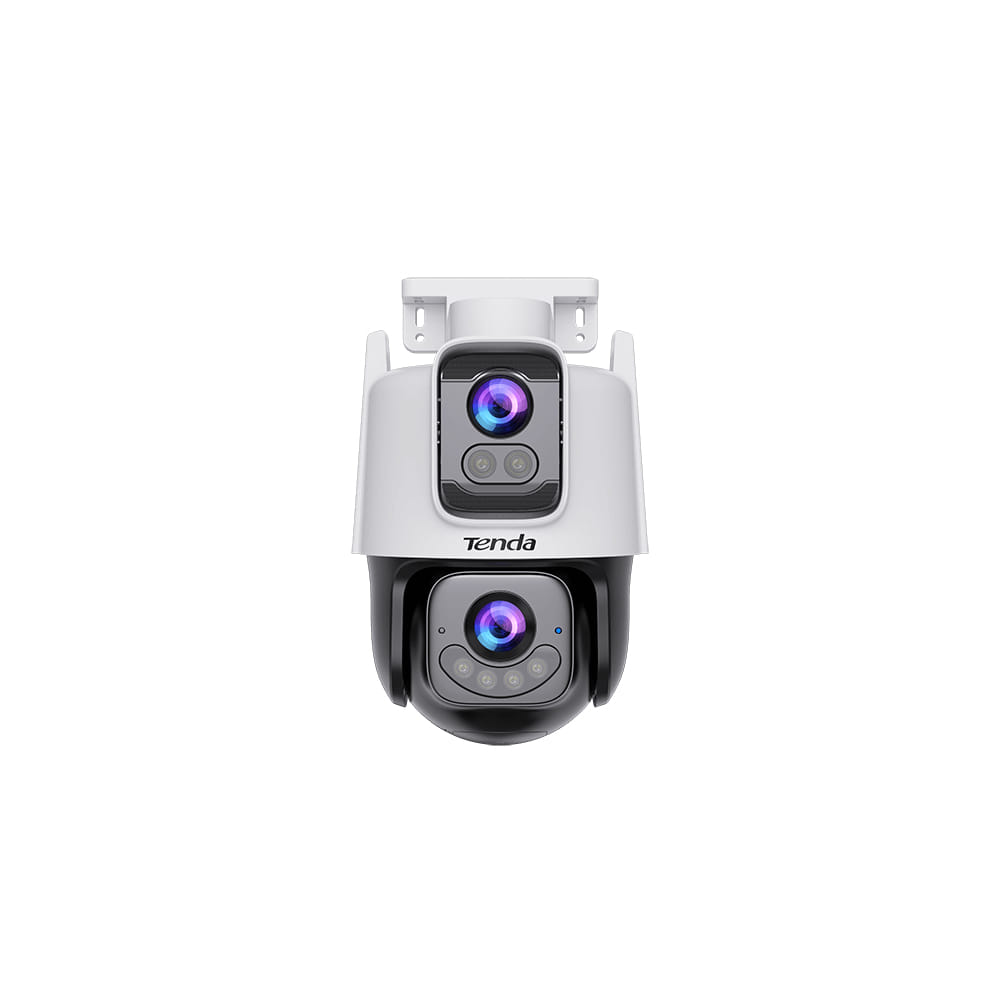

Tenda RH9-WCA 6MP Dual-lens Outdoor Wi-Fi/Tilt Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired & Wireless
PTZ control
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	Internal

Design
Form factor The shape or design of the product.	Turret
Mounting type Type of mounting e.g. wall mounting.	Ceiling/Wall/Pole
Product colour The colour e.g. red, blue, green, black, white.	White
Housing material What the casing of the product is made of.	Plastic
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP65

Camera
Camera pan control
Camera tilt control
Tilt angle range	0 - 90°
Pan range	0 - 355°
Number of Privacy masking areas	4
Viewing angle, horizontal (4mm lens)	82.3°
Viewing angle, vertical (4mm lens)	44.7°
Viewing angle, diagonal (4mm lens)	97.4°
Viewing angle, horizontal (6mm lens)	51.8°
Viewing angle, vertical (6mm lens)	28.2°
Viewing angle, diagonal (6mm lens)	60.4°

Image sensor
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 3 mm (1 / 3")
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Panoramic camera
Fixed focal length (panoramic camera)	6 mm

Lens system
Number of lenses The number of lenses installed in the device.	2
Maximum aperture number	1.6
Fixed focal length	4 mm

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	30 m
LED type	IR
Infra-red wavelength	850 nm

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	2304 x 1296 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	6 MP
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296
Video streaming
Noise reduction
Noise reduction technology	3D noise reduction
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Back Light Compensation (BLC)
Highlight Compensation (HLC)
Digital Wide Dynamic Range (DWDR)

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Built-in microphone Microphone that is found inside the product.
Voice codecs	AAC, G.711a, G.711u

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Storage
Built-in HDD The product has a hard drive built into it.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash)
Maximum memory card size The maximum size of memory card that can be used with this device.	512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3-SAE

Management features
Web browser
Reset button

Power
Power source type What the power source is.	DC
DC output voltage	12

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-30 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	3 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	122 mm
Depth The distance from the front to the back of something.	62 mm
Height The measurement of the product from head to foot or from base to top.	203 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	527 g

Packaging data
Package width The distance from one side of the packaging to the other.	240 mm
Package depth The distance from the front to the back of the packaging.	145 mm
Package height The distance from the top to the bottom of the packaging.	193 mm
Package weight Weight of the packaged product.	802 g

Sustainability
Compliance certificates	CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA

Packaging content
Number of cameras The quantity of cameras that product can support.	1
Mounting kit
Mounting brackets included
