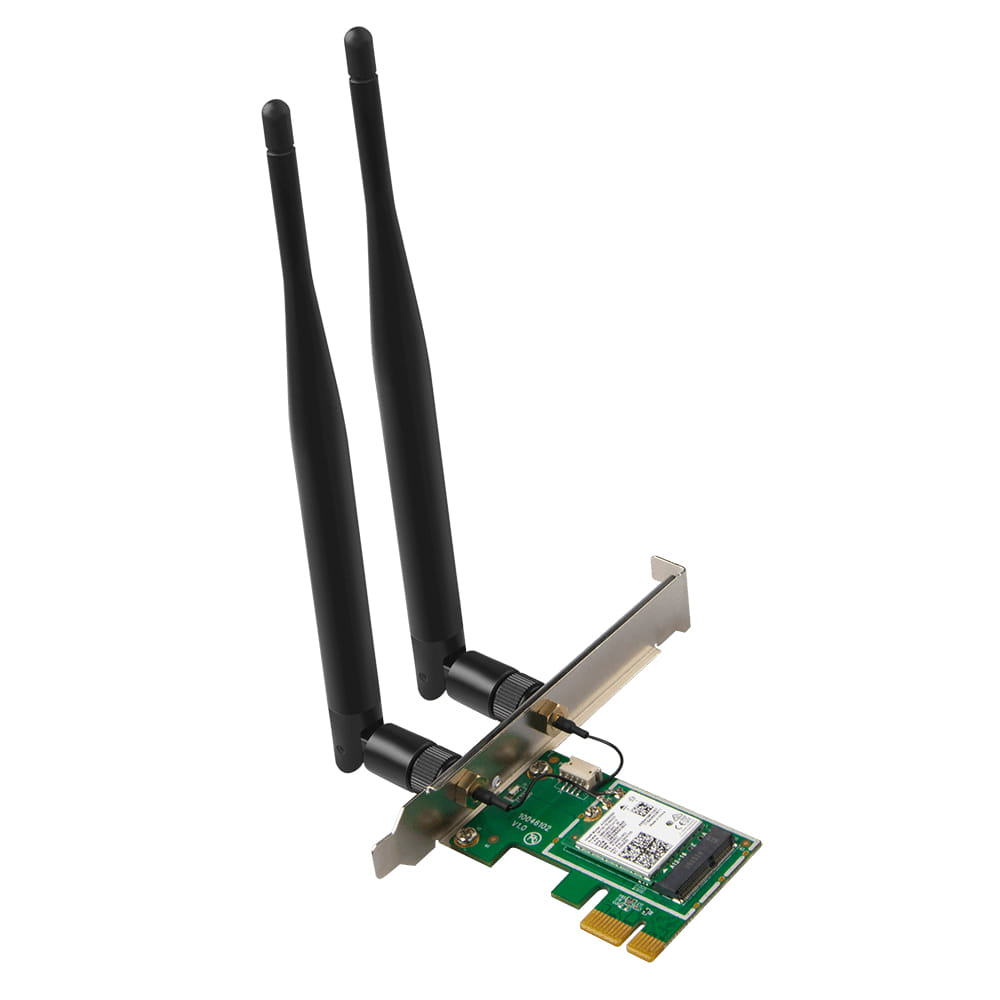

Tenda E30, Internal, Wired, PCI Express, WLAN, Wi-Fi 6 (802.11ax), 2402 Mbit/s
Wi-Fi 6 for A New Wi-Fi Experience
E30 is a Wi-Fi6 PCIe adapter , provides higher transmission rate, lower latency and better energy saving, Via 5dBi antennas over the 2.4 GHz and 5 GHz bands for PC.
AX3000 Dual Band Wi-Fi for Smooth Connection
Supporting 1024QAM and 160MHz channels, the 5GHz wireless rates up to 2402Mbps, 2.4GHz wireless rates up to 574Mbps. With Tenda E30 you can enjoy smoother 4K movies, VR games, and large file extremely transfers.
5dBi Antenna for Stronger Signal Penetration
2 external detachable 5dBi dual-band antennas can adjust the angle of signal transmission flexibly, which provides stable signals from a long distance.
Together with Fastest Bluetooth 5.0
Equipped with the latest Bluetooth 5.0 Technology, E30 is able to achieve faster speeds and broader coverage than Bluetooth 4.2. You can enjoy ultra-responsive real-time gaming or an immersive VR experience. The Wi-Fi and Bluetooth PCIe adapter also supports Bluetooth mouse, keyboard, gaming devices, etc.
Better Efficiency on Busy Networks
Get the most efficient Wi-Fi connection for your PC with revolutionary OFDMA and MU-MIMO technology, which enables your adapter communicate with your router along with other devices without lag.
WPA3-Reliable Security for Your Connections
E30 supports the latest Wi-Fi security standard WPA3, which has a more mature identity authentication algorithm, protecting the PC network from hackers and malware.
Perfect Match with Win10
Compatible with Windows 10, E30 supports IEEE 802.11ax/ac/a/n/g/b and Bluetooth 5.0 protocol standard.
E30 is a Wi-Fi6 PCIe adapter , provides higher transmission rate, lower latency and better energy saving, Via 5dBi antennas over the 2.4 GHz and 5 GHz bands for PC.
AX3000 Dual Band Wi-Fi for Smooth Connection
Supporting 1024QAM and 160MHz channels, the 5GHz wireless rates up to 2402Mbps, 2.4GHz wireless rates up to 574Mbps. With Tenda E30 you can enjoy smoother 4K movies, VR games, and large file extremely transfers.
5dBi Antenna for Stronger Signal Penetration
2 external detachable 5dBi dual-band antennas can adjust the angle of signal transmission flexibly, which provides stable signals from a long distance.
Together with Fastest Bluetooth 5.0
Equipped with the latest Bluetooth 5.0 Technology, E30 is able to achieve faster speeds and broader coverage than Bluetooth 4.2. You can enjoy ultra-responsive real-time gaming or an immersive VR experience. The Wi-Fi and Bluetooth PCIe adapter also supports Bluetooth mouse, keyboard, gaming devices, etc.
Better Efficiency on Busy Networks
Get the most efficient Wi-Fi connection for your PC with revolutionary OFDMA and MU-MIMO technology, which enables your adapter communicate with your router along with other devices without lag.
WPA3-Reliable Security for Your Connections
E30 supports the latest Wi-Fi security standard WPA3, which has a more mature identity authentication algorithm, protecting the PC network from hackers and malware.
Perfect Match with Win10
Compatible with Windows 10, E30 supports IEEE 802.11ax/ac/a/n/g/b and Bluetooth 5.0 protocol standard.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | WLAN |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2402 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 574,2402 Mbit/s |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 1024-QAM |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK,WPA3 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 4.2 + 5.0 |
| Design | |
| Component for What this product is used as a part of (component for). | PC |
| Internal The product is built in. |
|
| Antenna |
|
| Antenna design | External |
| Transmitting power (CE) | 20 dBm |
| LED indicators | System |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Resource CD |
|
| Quick installation guide |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 78.5 mm |
| Depth The distance from the front to the back of something. | 120.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 21 mm |
| SKU | 496262 |
| MPN | E30 |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tendacn.com/ |
