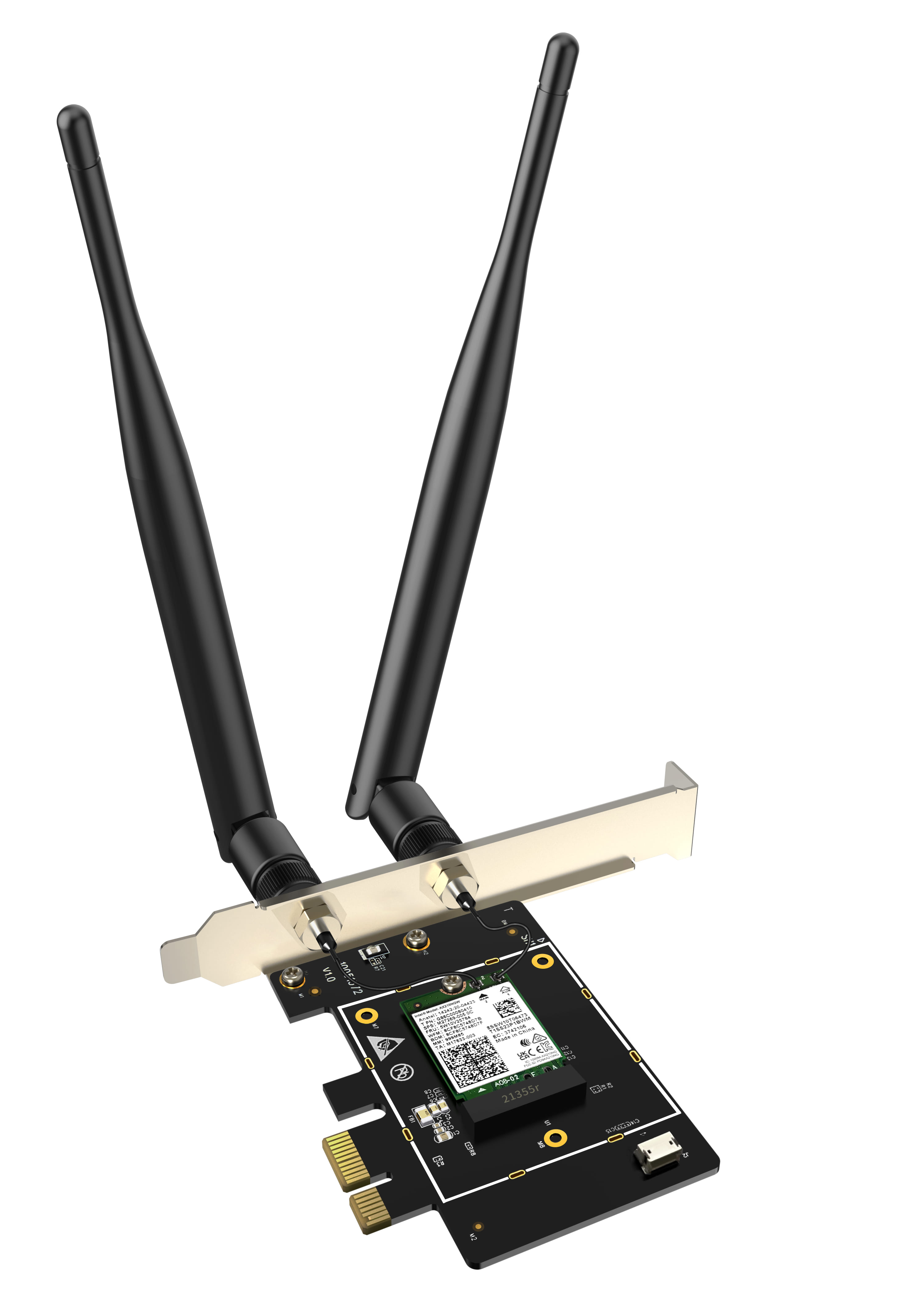

AX5400 Tri band Gigabit Wi Fi 6E PCI E Adapter
With the newest Wi Fi 6E technology, E33 is a PCIe Wi Fi Card that supports 1024 QAM and 160 MHz bandwidth. It has a speed of up to 5400 Mbps(2.4 GHz 574 Mbps; 5 GHz 2402 Mbps; 6 GHz 2402 Mbps), providing faster transmission, lower latency for games, and 4K streaming. 2 external detachable tri band antennas also improve the reception capability for the signal from a long distance.
Get a Faster Connected Way for Your PC
AX5400 Tri Band Gigabit Wi Fi 6E Adapter
Speedy Wi Fi Performance
With next gen Wi Fi 6E technology, E33 has a speed of up to 5400 Mbps (2.4 GHz 574 Mbps; 5 GHz 2402 Mbps; 6 GHz 2402 Mbps).
Peak transmission speed is 80% faster than the AX3000 PCI Express Adapter, providing lower latency and faster network transmission.
Tri band for Ultra Fast Connection
E33 Supports 6GHz band and 1024 QAM modulation technology. Connected devices will have lower latency and higher transmission efficiency in the 6G frequency band.
Latest Bluetooth 5.2
With the Bluetooth 5.2 standard and enhanced ATT protocol, it supports longer connection distance and has more stable connectivity. Enjoy stable and lower latency with your wireless gamepad, speaker, keyboard, etc.
Detachable Antennas for Stronger Signal Penetration
Compared with standard antennas, E33 has detachable omnidirectional F4B antennas, effectively improving signal receiving, sending sensitivity and transmission efficiency, providing a stable connection and lower latency network.
High class Security with WPA3
Equipped with the new generation of Wi Fi security standard WPA3, which protects the network privacy.
Supports Windows 10/11(64 bit)
Compatible with the newest Windows operating system Win 11.
Get a Faster Connected Way for Your PC
AX5400 Tri Band Gigabit Wi Fi 6E Adapter
Speedy Wi Fi Performance
With next gen Wi Fi 6E technology, E33 has a speed of up to 5400 Mbps (2.4 GHz 574 Mbps; 5 GHz 2402 Mbps; 6 GHz 2402 Mbps).
Peak transmission speed is 80% faster than the AX3000 PCI Express Adapter, providing lower latency and faster network transmission.
Tri band for Ultra Fast Connection
E33 Supports 6GHz band and 1024 QAM modulation technology. Connected devices will have lower latency and higher transmission efficiency in the 6G frequency band.
Latest Bluetooth 5.2
With the Bluetooth 5.2 standard and enhanced ATT protocol, it supports longer connection distance and has more stable connectivity. Enjoy stable and lower latency with your wireless gamepad, speaker, keyboard, etc.
Detachable Antennas for Stronger Signal Penetration
Compared with standard antennas, E33 has detachable omnidirectional F4B antennas, effectively improving signal receiving, sending sensitivity and transmission efficiency, providing a stable connection and lower latency network.
High class Security with WPA3
Equipped with the new generation of Wi Fi security standard WPA3, which protects the network privacy.
Supports Windows 10/11(64 bit)
Compatible with the newest Windows operating system Win 11.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | WLAN |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2402 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Wi-Fi band The frequency bands the product features. | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Frequency range | 2.4 - 6 GHz |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN data transfer rates supported | 574,2402 Mbit/s |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.2 |
| Design | |
| Component for What this product is used as a part of (component for). | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Steel |
| Internal The product is built in. |
|
| Antenna |
|
| Antenna design | External |
| Transmitting power (CE) | 20 dBm |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 11 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | Federal Communications Commission (FCC), RoHS, UKCA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 92.3 mm |
| Depth The distance from the front to the back of something. | 120.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 21.5 mm |
| SKU | 697370 |
| MPN | E33 |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tendacn.com/ |
