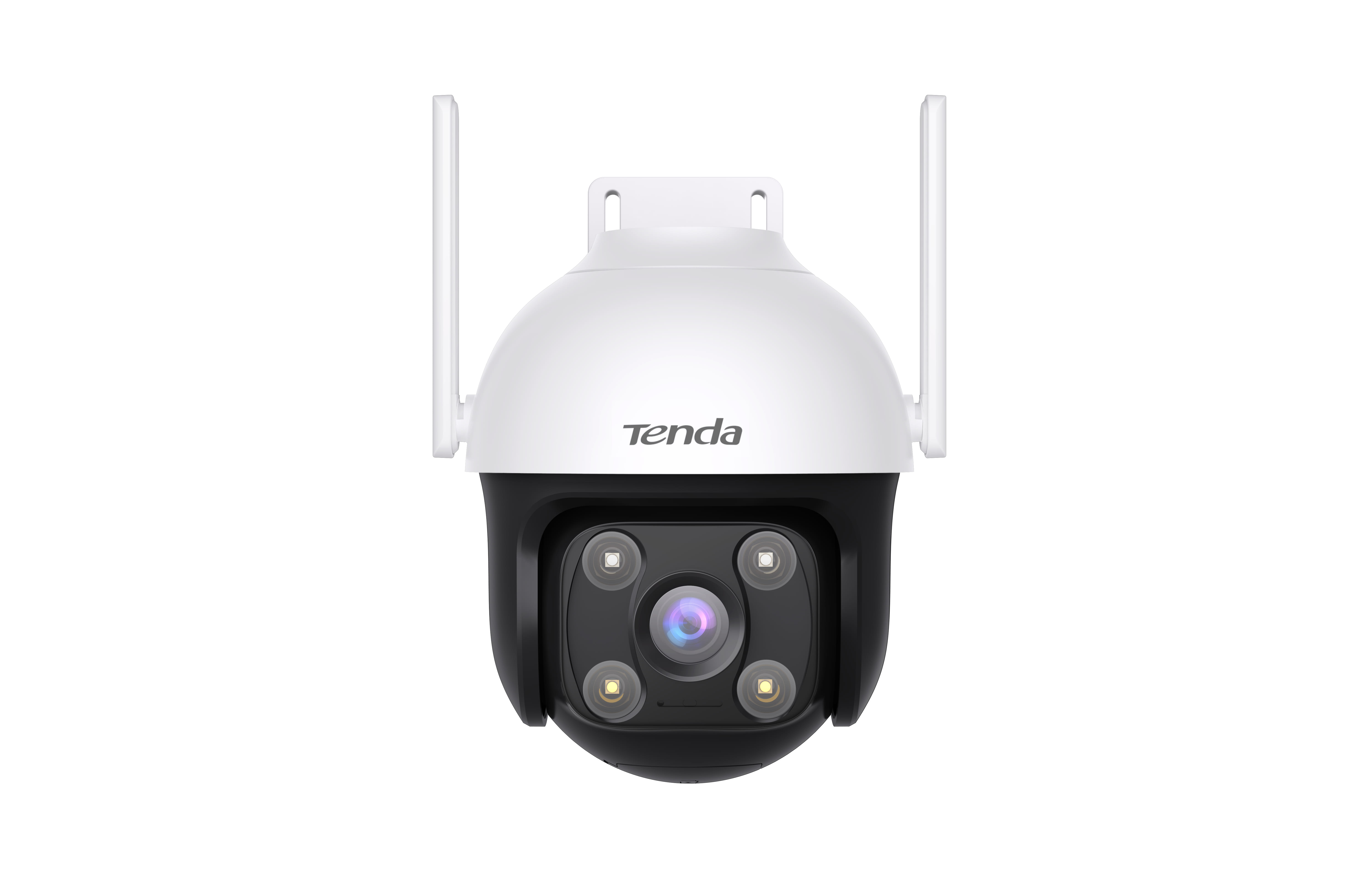

Tenda CH7-WCA, IP security camera, Indoor & outdoor, Wired & Wireless, External, 2.4 MHz, Wall
4MP Real Dual Antennas AI Smart Full-color Safeguard
4MP Clear Images with More Details
Equipped with a high-performance CMOS image sensor and an F1.6 large aperture lens, the camera can achieve a resolution of 4 MP, providing clear images with more details.
Accurate Human and Vehicle Detection
Based on deep learning AI algorithm, precise identification of humans and vehicles can be achieved while irrelevant information is effectively filtered to enhance alarm accuracy.
View 360Deg Panorama Remotely Auto-patrol for Specified Position
With dual pan/tilt design and 360Deg visual coverage, the camera can be remotely controlled. Maximum 6 patrols can be set for automatic patrol to ensure your safety.
Real Dual Antenna No Dropping, No Jamming, Images are Displayed Immediately
With accumulation of wireless technology for 20 years and MIMO technology, we can ensure a stable wireless connection of 250 meters. The camera also supports wired connection.
Full-Color Night Vision, Three Modes Available
Connectable to Alexa Assistant
Connect the device to Alexa to free your hands. You can wake up the screen through voice, view the monitoring image, and control the device more conveniently.
Smart Human Detection, Audio & Light Alert
When people enter the monitoring area, the camera will give an audible warning with spotlight flashing (three audio alarms can be customized), the alarm notifications will also be pushed to the smartphone in real time.
Two-Way Audio
Easy Communication Anytime & Anywhere
Real-time full-duplex two-way audio communication function enables you to chat with your family anytime and anywhere, bringing the most affectionate greetings to your beloved.
H.265 Encoding Technology
The next-generation H.265 encoding technology reduces video occupancy by 50% compared to H.264, resulting in bandwidth savings, smoother viewing experiences, and more efficient data storage compression.
Multiple Access Modes
You can manage the camera through TDSEE app, browser without plug-in access and NVR, and easily manage your camera anytime and anywhere.
Three Storage Modes Are Available
Cloud Storage
Free 3-month trial of cloud storage
SD Card
Maximum support 256 GB
NVR Storage
Tenda NVR maximum support 10T HDD storage
Waterproof and Dustproof
With waterproof and dustproof design, the camera can withstand rainy, sunny, stormy, and even snowy weathers.
Data Protection / All-round Shield
Encrypted data transmission. It uses AES256-bit super encryption to ensure data transmission security.
Cloud data encryption. Our Encryption reaches the security certification level ISO/IEC 27018.
Three Simple Steps, Easy Internet Access
You can choose to add the camera in a wireless or wired method according to the actual conditions.
With Adjustable Bracket, Support Multiple Mounting Methods
Equipped with an adjustable bracket, the camera can be mounted on the ceiling and wall with screw, or mounted on the pole with strap.
4MP Clear Images with More Details
Equipped with a high-performance CMOS image sensor and an F1.6 large aperture lens, the camera can achieve a resolution of 4 MP, providing clear images with more details.
Accurate Human and Vehicle Detection
Based on deep learning AI algorithm, precise identification of humans and vehicles can be achieved while irrelevant information is effectively filtered to enhance alarm accuracy.
View 360Deg Panorama Remotely Auto-patrol for Specified Position
With dual pan/tilt design and 360Deg visual coverage, the camera can be remotely controlled. Maximum 6 patrols can be set for automatic patrol to ensure your safety.
Real Dual Antenna No Dropping, No Jamming, Images are Displayed Immediately
With accumulation of wireless technology for 20 years and MIMO technology, we can ensure a stable wireless connection of 250 meters. The camera also supports wired connection.
Full-Color Night Vision, Three Modes Available
Connectable to Alexa Assistant
Connect the device to Alexa to free your hands. You can wake up the screen through voice, view the monitoring image, and control the device more conveniently.
Smart Human Detection, Audio & Light Alert
When people enter the monitoring area, the camera will give an audible warning with spotlight flashing (three audio alarms can be customized), the alarm notifications will also be pushed to the smartphone in real time.
Two-Way Audio
Easy Communication Anytime & Anywhere
Real-time full-duplex two-way audio communication function enables you to chat with your family anytime and anywhere, bringing the most affectionate greetings to your beloved.
H.265 Encoding Technology
The next-generation H.265 encoding technology reduces video occupancy by 50% compared to H.264, resulting in bandwidth savings, smoother viewing experiences, and more efficient data storage compression.
Multiple Access Modes
You can manage the camera through TDSEE app, browser without plug-in access and NVR, and easily manage your camera anytime and anywhere.
Three Storage Modes Are Available
Cloud Storage
Free 3-month trial of cloud storage
SD Card
Maximum support 256 GB
NVR Storage
Tenda NVR maximum support 10T HDD storage
Waterproof and Dustproof
With waterproof and dustproof design, the camera can withstand rainy, sunny, stormy, and even snowy weathers.
Data Protection / All-round Shield
Encrypted data transmission. It uses AES256-bit super encryption to ensure data transmission security.
Cloud data encryption. Our Encryption reaches the security certification level ISO/IEC 27018.
Three Simple Steps, Easy Internet Access
You can choose to add the camera in a wireless or wired method according to the actual conditions.
With Adjustable Bracket, Support Multiple Mounting Methods
Equipped with an adjustable bracket, the camera can be mounted on the ceiling and wall with screw, or mounted on the pole with strap.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Auto patrol mode |
 |
| Day/night mode |
|
| Remote viewing |
|
| Built-in light There is a light which is inside/on the outside of the product. |
|
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antennas quantity | 2 |
| Operating frequency The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz. | 2.4 MHz |
| Design | |
| Form factor The shape or design of the product. | Spherical |
| Mounting type Type of mounting e.g. wall mounting. | Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators |
|
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Dust resistant, Waterproof |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65 |
| Weatherproof |
|
| Camera | |
| Camera pan control |
|
| Camera tilt control |
|
| Field of view (FOV) angle | 360° |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 90° |
| Lens viewing angle, vertical | 47° |
| Lens viewing angle, diagonal | 108° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 355° |
| Panoramic camera | |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) |
|
| Lens system | |
| Number of lenses The number of lenses installed in the device. | 1 |
| Lens diameter The size of the lens, measured by drawing a straight line from one side to the other, going through the centre of the lens. | 4 mm |
| Maximum aperture number | 1.6 |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2560 x 1440 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 4 MP |
| Video compression formats | H.264, H.265 |
| Frame rate | 30 fps |
| Noise reduction |
|
| Noise reduction technology | 3D noise reduction |
| Digital Wide Dynamic Range (DWDR) |
|
| Region of Interest (ROI) encoding |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Audio system full duplex |
|
| Built-in microphone Microphone that is found inside the product. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
 |
| Channel bandwidth | 40 MHz |
| Live view |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Security | |
| Video motion detection |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection |
| Management features | |
| Reset button |
|
| Remotely operated The device can be controlled by remote control, which is a device that controls an apparatus by means of radio or infrared signals. |
|
| Smartphone/tablet remote support The product can be used to remotely manage a smartphone. |
|
| Power | |
| Power source type What the power source is. | DC |
| DC output voltage | 12 |
| DC output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 3 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 138 mm |
| Height The measurement of the product from head to foot or from base to top. | 187 mm |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Mounting kit |
|
| Mounting brackets included |
|
| Packaging content | Outdoor Wi-Fi Camera Power Adapter Mounting Bracket Mounting Accessories Kit Waterproof Kit Quick Installation Guide |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | Federal Communications Commission (FCC), RoHS, UKCA |
| SKU | 758540 |
| MPN | CH7 |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tendacn.com/ |
