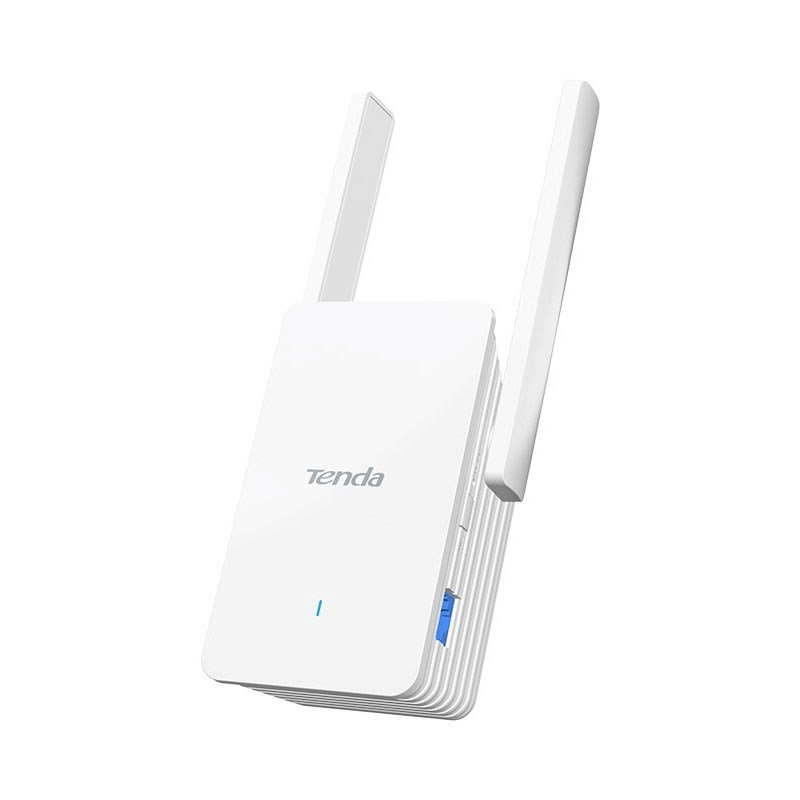

Tenda AX1800 Wi-Fi 6 Dual Band Wi-Fi Range Extender

Data transmission
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another.	1800 Mbit/s

Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	External
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.	5 dBi
Antennas quantity	2

Wireless LAN features
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
WLAN data transfer rate (max)	1800 Mbit/s
Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.	2.412-2.484, 5.15-5.25, 5.725-5.85 GHz
Receiver sensitivity	2.4 GHz 11b-1M:-97dBm 11g-54M:-76dBm 11n-20M-MCS7:-74dBm 11n-40M-MCS7:-72dBm 5 GHz: 11a-6M:-95dBm 11n-20M-MCS7:-74dBm 11n-40M-MCS7:-72dBm 11ac-80M-MCS9:-63dBm
Output power (dBm)	2.4GHz (2412 MHz~2472 MHz):19.97dBm 5GHz (5150 MHz~5250 MHz; 5250 MHz~5350 MHz; 5470 MHz~5725 MHz):22.99dBm

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11ax
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)

Ports & interfaces
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired & Wireless
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	WPA-PSK,WPA-TKIP,WPA2-PSK,WPA3
WPS push button

Features
Product type The sub-category of the product.	Network repeater
Product colour The colour e.g. red, blue, green, black, white.	White
LED indicators
Reset button

Power
Power source type What the power source is.	DC
DC input voltage	12 V
Power consumption (max) The maximum amount of power used by the device.	11 W
DC output current	1 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Certificates
Certification	CE, FCC、RoHS

Weight & dimensions
Width The measurement or extent of something from side to side.	123 mm
Depth The distance from the front to the back of something.	72 mm
Height The measurement of the product from head to foot or from base to top.	47.5 mm

Packaging content
Quick installation guide

Packaging data
Quantity per pack	1 pc(s)
