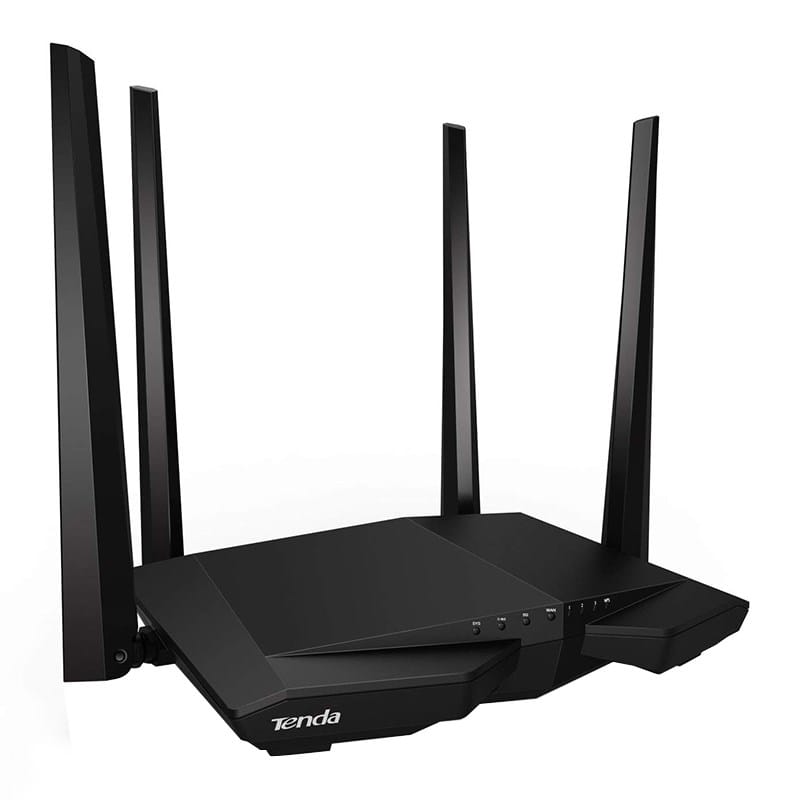

Tenda AC6 AC1200 Smart Dual Band Wireless Router

WAN connection
Ethernet WAN
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Fast Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Cabling technology Type of cable technology performance.	10/100Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3,IEEE 802.3u
Port forwarding
VPN support	IPsec pass through, PPTP pass through, L2TP pass through, PPTP server, PPTP client, L2TP client

Mobile network
3G Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV.
4G Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing.

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	3
Memory card slot(s) Places where memory cards are placed inside and connected to the computer motherboard.
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Web-based management Using a website/web application to manage something.
Reset button
WPS push button

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	WPA,WPA-PSK,WPA2,WPA2-PSK
Firewall
Guest access
Filtering
System event log
DMZ support

Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Universal Plug and Play (UPnP)

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators	LAN,System,WAN,WPS
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Tabletop router

Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	External
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.	5 dBi
Antennas quantity	4
Transmit power	20 dBmW

Features
Firmware upgradeable

Power
Power source type What the power source is.	DC
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	1 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	220 mm
Depth The distance from the front to the back of something.	141.5 mm
Height The measurement of the product from head to foot or from base to top.	49 mm

Packaging data
Cables included	LAN (RJ-45)
AC adapter included
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
