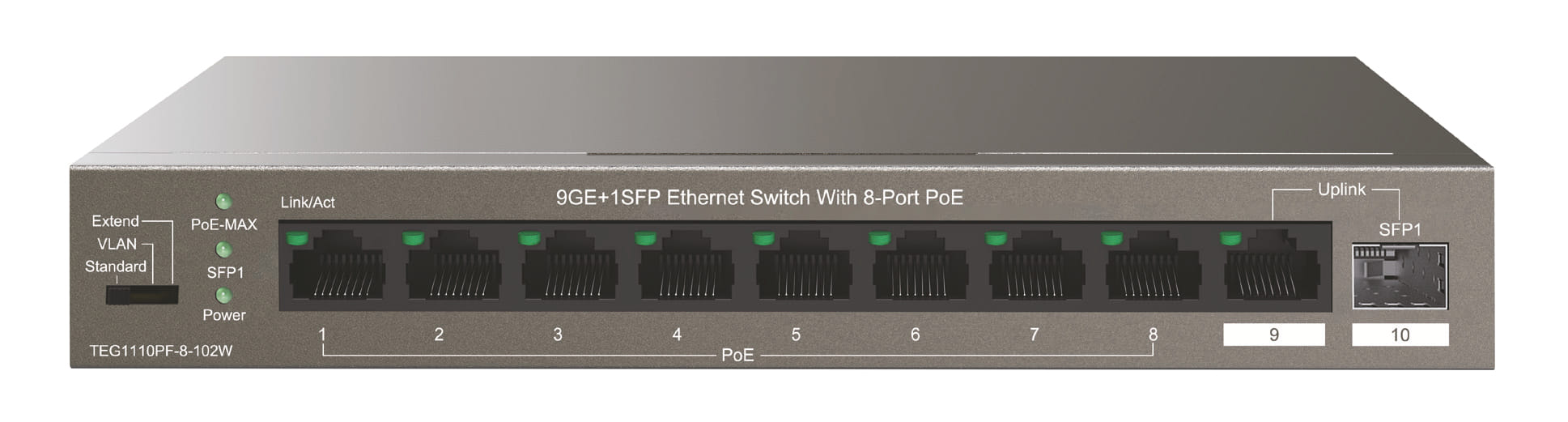

Tenda TEG1110PF 8 102W, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
TEG1110PF 8 102W is a 10 port gigabit Ethernet unmanaged PoE switch independently designed by Tenda. It supports IEEE 802.3af/at standards for PoE power supply, capable of transmitting data and supplying power for 8 HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30 W and the total power consumption of the switch is 102W.Supporting three mode toggle, TEG1110PF 8 102W is suitable for complex networking deployment and is your ideal choice for video surveillance and gigabit wireless networking in such scenarios as SMEs, residential areas,industrial parks, hotels and schools.
The Faster, The Better Experience
Full gigabit ports, 20 Gbps non blocking line speed forwarding, greatly improve the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
Smart PoE Power Supply, Stable Transmission
The chip provides intelligent power management function. When the power supply exceeds the rated power of the PoE switch (92W), the low priority port is automatically powered off to avoid overload and prolong the service life of the PoE switch.
GE and SFP Uplink Ports, Easier HD Monitoring
With a gigabit uplink port and a gigabit uplink optical fiber port, easily complete low cost remote networking.
3 Modes For More Scenarios, One key To Change Smart And Easy
The switch supports 3 working modes of Standard, VLAN and Extend, realizing flexible network deployment in complex cases with lowered cost.
Mode 1 : Standard
Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.
Mode 2 : VLAN
In this mode, ports 1 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storms.
Mode 3 : Extend
In this mode, all ports can communicate with each other, and the transmission distance of 1 8 ports can be extended to 250m.
6KV Professional Lightning Protection Design, Fearless Of Thunderstorm Weather
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
The Faster, The Better Experience
Full gigabit ports, 20 Gbps non blocking line speed forwarding, greatly improve the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
Smart PoE Power Supply, Stable Transmission
The chip provides intelligent power management function. When the power supply exceeds the rated power of the PoE switch (92W), the low priority port is automatically powered off to avoid overload and prolong the service life of the PoE switch.
GE and SFP Uplink Ports, Easier HD Monitoring
With a gigabit uplink port and a gigabit uplink optical fiber port, easily complete low cost remote networking.
3 Modes For More Scenarios, One key To Change Smart And Easy
The switch supports 3 working modes of Standard, VLAN and Extend, realizing flexible network deployment in complex cases with lowered cost.
Mode 1 : Standard
Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.
Mode 2 : VLAN
In this mode, ports 1 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storms.
Mode 3 : Extend
In this mode, all ports can communicate with each other, and the transmission distance of 1 8 ports can be extended to 250m.
6KV Professional Lightning Protection Design, Fearless Of Thunderstorm Weather
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 9 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device. | 1 |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 20 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Store-and-forward |
 |
| Packet forwarding rate (1 Gbps) | 14.9 pps |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| LED indicators | Link, Power |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 51 V |
| Input current | 2 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 92 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 92 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 177.5 mm |
| Depth The distance from the front to the back of something. | 104 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | Federal Communications Commission (FCC), RoHS |
| SKU | 710855 |
| MPN | TEG1110PF-8-102W |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tendacn.com/ |
