Tenda TEF1109P-8-63W, Unmanaged, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting
Lead security transmission power supply to a higher level

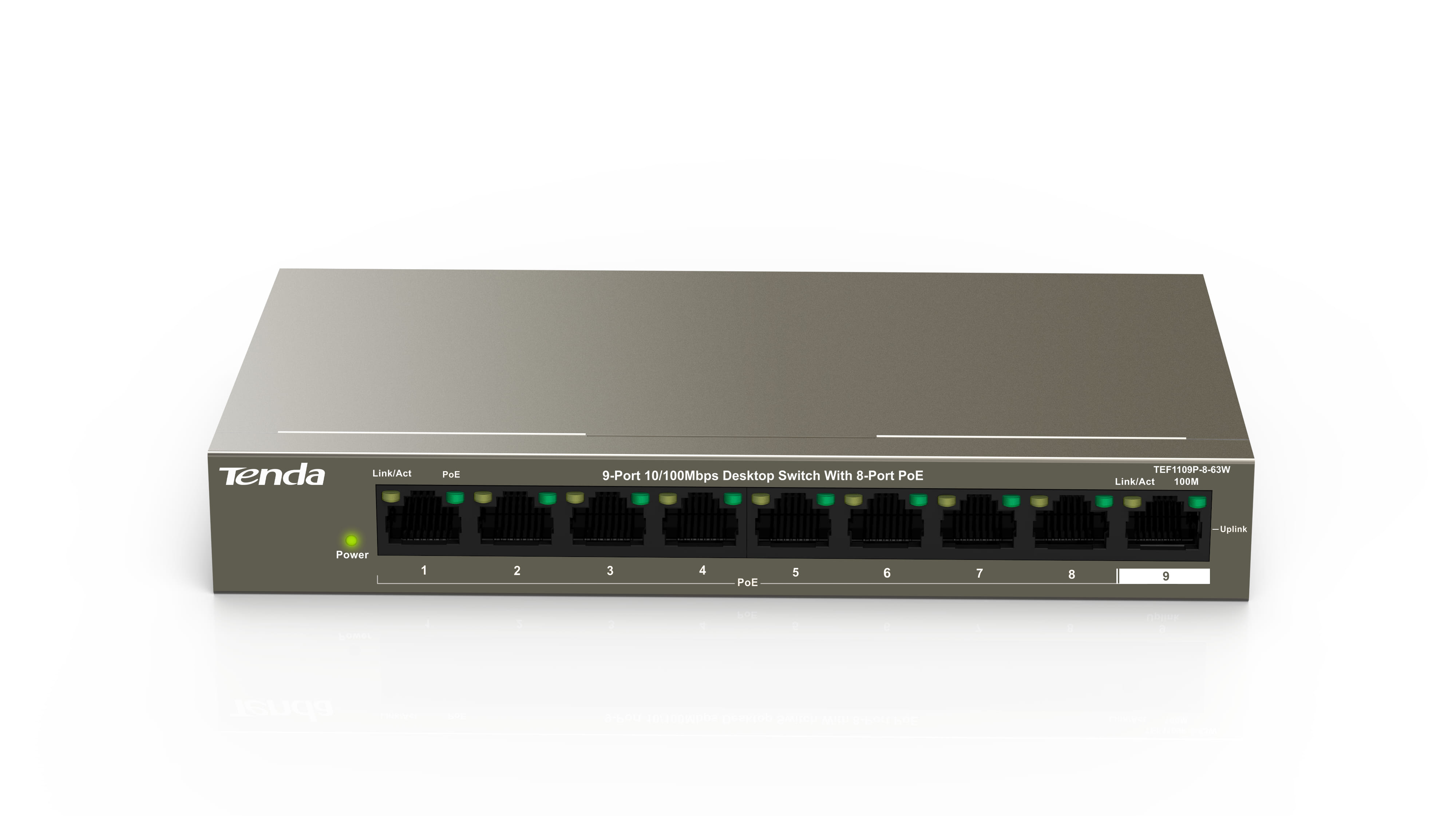

TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE
6KV Lightning Protection long distance transmission
Maximum PoE Output Power 58W PoE power up to 30W for each PoE port
Up to 250 meters long distance transmission, beyond hundred meters transfer limit
Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distanceof each camera terminal to the monitoring center is different, some are only a few meters, some are hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters; Providing gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers.
6KV lighting protection PoE switch is the real monitoring private switch
In real monitoring project, cameras are often installed outdoor or in a higher position, which also increases the probability of lightning shock toward the cameras and PoE switches. Therefore, some of the equipments may be damaged and even the whole local area network (LAN) may be paralyzed.
Tenda TEF11 series switches have professional lightning protection design
TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE
6KV Lightning Protection long distance transmission
Maximum PoE Output Power 58W PoE power up to 30W for each PoE port
Up to 250 meters long distance transmission, beyond hundred meters transfer limit
Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distanceof each camera terminal to the monitoring center is different, some are only a few meters, some are hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters; Providing gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers.
6KV lighting protection PoE switch is the real monitoring private switch
In real monitoring project, cameras are often installed outdoor or in a higher position, which also increases the probability of lightning shock toward the cameras and PoE switches. Therefore, some of the equipments may be damaged and even the whole local area network (LAN) may be paralyzed.
Tenda TEF11 series switches have professional lightning protection design
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 9 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Fast Ethernet (10/100) |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 1.8 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 4000 entries |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators | Activity, Link, PoE, Power |
| Certification | 3C, FCC, CE, ROHS |
| Performance | |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 50000 h |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 51 V |
| Input current | 1.25 A |
| Power consumption (max) The maximum amount of power used by the device. | 63 W |
| Surge protection |
|
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 58 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 177.5 mm |
| Depth The distance from the front to the back of something. | 104 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 758558 |
| MPN | TEF1109P-8-63W |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | In Stock at Bankstown |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tendacn.com/ |
