Tenda OS3, 867 Mbit/s, 867 Mbit/s, 10,100 Mbit/s, 80 MHz, 11a 6Mbps -92dBm 1.5dBm 11n MCS7 HT20 -72dBm 1.5dBm 11ac MCS9 HT80 -64dBm 1.5dBm, 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

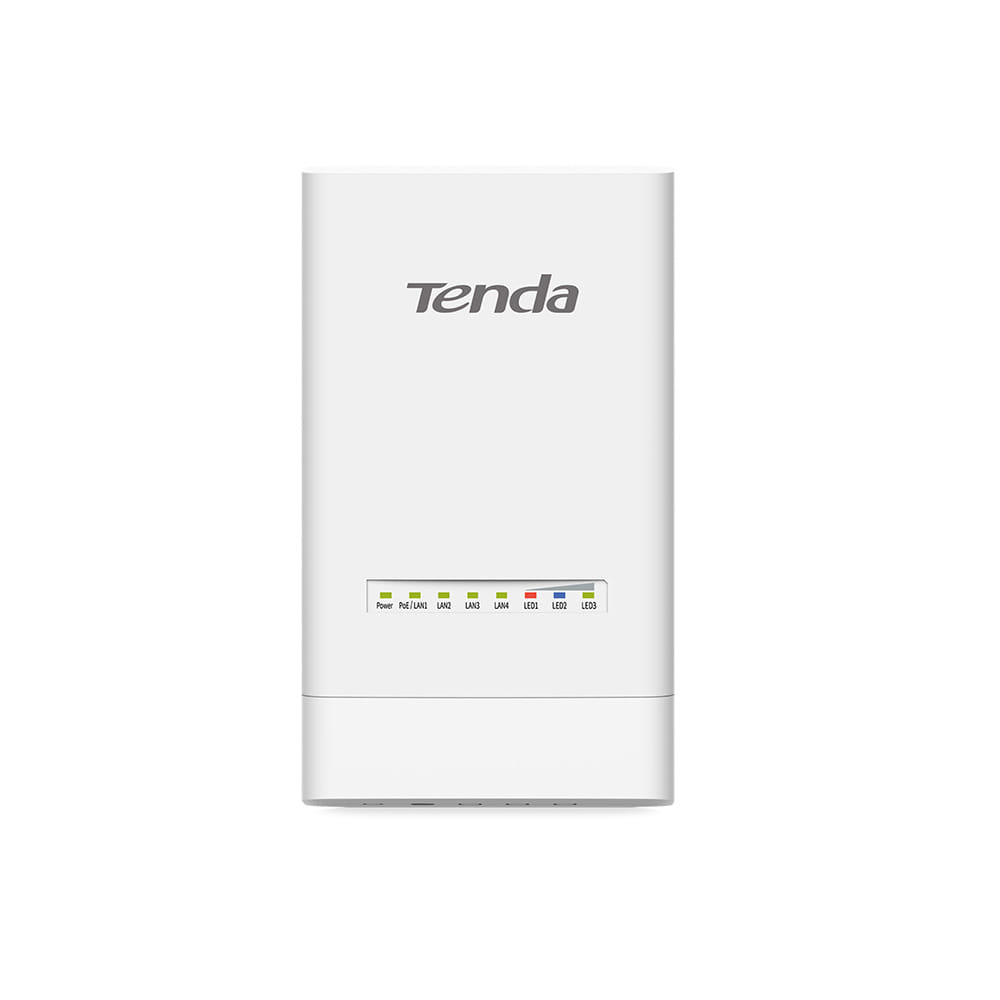

OS3 5GHz Outdoor CPE is designed to PtP&P2MP solution for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology, the maximum wireless rate can be up to 867Mbps. It features with 12dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection.
Flexible power supply method enable it easy to deployment
OS3 supports 12V 1A Passive PoE and 12V 1A DC power supply option. It helps the engineer to deploy the device flexiblely.
Auto-bridge technology enable it to easy setup
OS3 supports auto-bridge technology, It enables the CPE or basestation in factory default settings to connect to each other automaticaly after the device is powered on. It is very useful for the person who is not familiar with network knowledge, especially for CCTV surveillance transmission application.
Easy to Setup and Manage
OS3 comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assistant.
Professional Outdoor Design
Equipped with IP65 waterproof enclouse and high quality hardware design, OS3 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
Flexible power supply method enable it easy to deployment
OS3 supports 12V 1A Passive PoE and 12V 1A DC power supply option. It helps the engineer to deploy the device flexiblely.
Auto-bridge technology enable it to easy setup
OS3 supports auto-bridge technology, It enables the CPE or basestation in factory default settings to connect to each other automaticaly after the device is powered on. It is very useful for the person who is not familiar with network knowledge, especially for CCTV surveillance transmission application.
Easy to Setup and Manage
OS3 comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assistant.
Professional Outdoor Design
Equipped with IP65 waterproof enclouse and high quality hardware design, OS3 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
 |
| 6 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Channel bandwidth | 80 MHz |
| Wi-Fi Multimedia (WMM)/(WME) |
|
| Receiver sensitivity | 11a 6Mbps -92dBm±1.5dBm 11n MCS7 HT20 -72dBm±1.5dBm 11ac MCS9 HT80 -64dBm±1.5dBm |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Service Set Identifier (SSID) features | Hidden SSID |
| VPN support | PPTP L2TP |
| Protocols | |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Output voltage | 12 V |
| Output current | 1 A |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65 |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 12 dBi |
| Mobile network | |
| SIM card slot Whether the device features a SIM card slot. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 193 mm |
| Depth The distance from the front to the back of something. | 109 mm |
| Height The measurement of the product from head to foot or from base to top. | 61 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| SKU | 692055 |
| MPN | OS3 |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tendacn.com/ |
