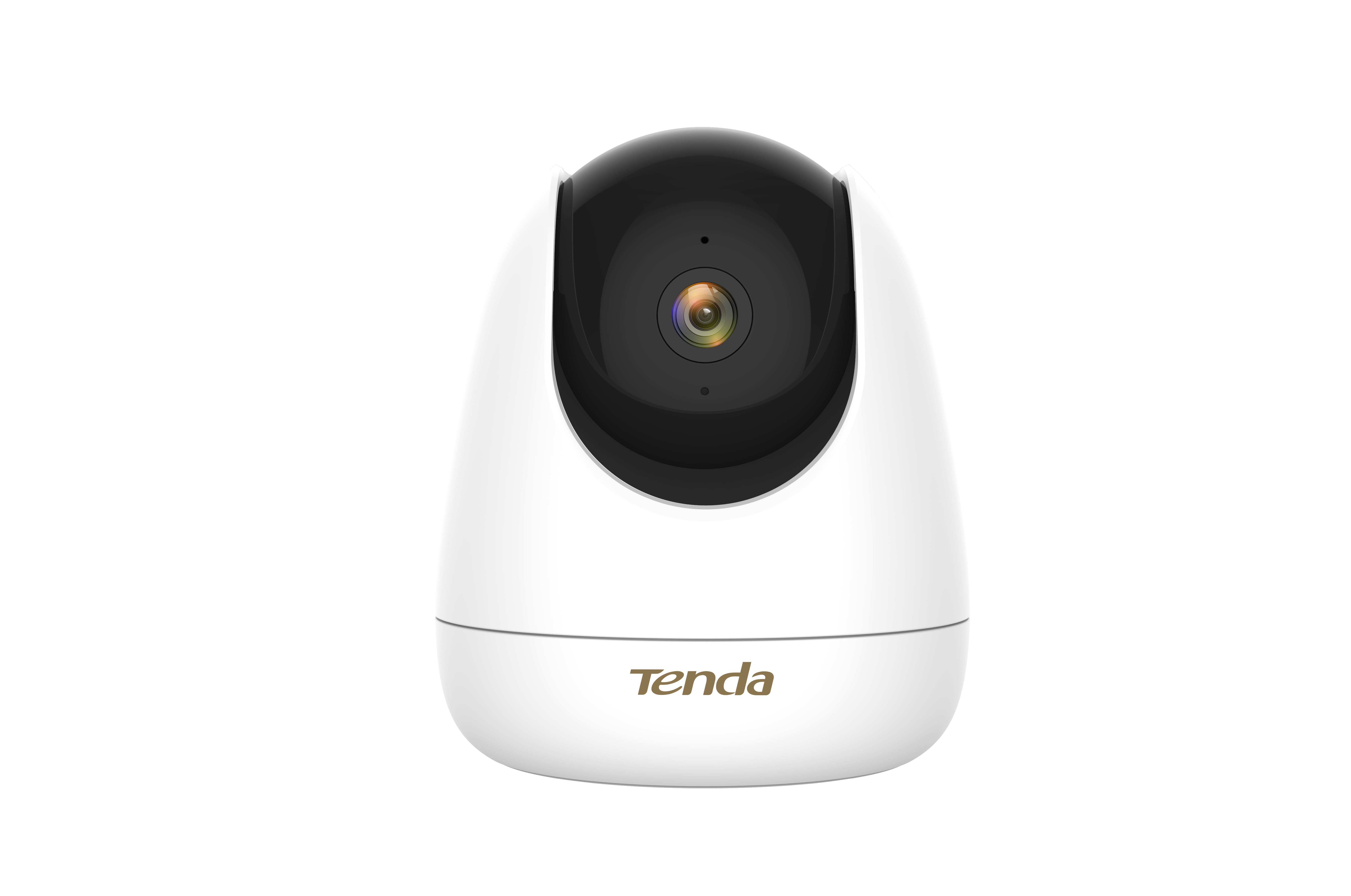

Tenda CP7, IP security camera, Indoor, Wired & Wireless, Internal, CE, RoHs, FCC, RCM, Dome
4MP version
Security Pan/Tilt Camera
4MP Super HD, Videos with more details
CP7 adopts 4MP image sensors, outputs 4MP 1/4 2560*1440 1/4 HD videos, reduces noise and captures more details.
Cover Every Corner of Your Home in Super HD
High speed pan/tilt design enables flexible rotation in all directions. CP7 covers 360 horizontally and 155 vertically (90 up, 65 down) which leaves zero blind zones at all.
Human Shape Detection for Safety Protection
Based on AI deep learning algorithms, CP7 can detect human shape and other motion. It recognizes the movement accurately and captures suspicious status automatically, and the resulting alarms will be sent to your mobile in real time.
Patrol with one click
You can set the pan/tilt partol locations via the TDSEE App,and the camera rotates cyclically according to the preset location to patrol the area.
Auto Targeting and Tracking
Based on the AI machine vision algorithms, the "Smart Tracking" can automatically tracks the movements and store the video.
Active Light and Sound Alarms for Enhanced Defense
When intrusion is detected during the alert period, a sound and white flashing light alarm will be triggered to warn illegal intruders. At the same time, the alarm message will be sent to your mobile.
Two-Way Audio Easy Communication Anytime & Anywhere
Real-time full-duplex two-way audio communication function enables you to chat with your family anytime and anywhere, bringing the most affectionate greetings to your beloved.
Customize your voice alerts
You can customize 3 personalized audio message for shop greeting or theft warning
Dual Enhanced Connection
The built-in dedicated antennas increase Wi-Fi performance by 30% and video is still smooth after passing through 2 walls.
Two Storage Options
The video can be stored in local Micro SD card and cloud storage. Even a vandal accident happens to your devices, you can still retrieve videos based on cloud recording.
Protect Your Privacy
Encrypted data transmission. It uses AES128-bit super encryption to ensure data transmission security
Support Desktop, Ceiling and Wall Mounting
The product is delivered with a seperated "Base". The camera can be directly placed on the desktop, or the top of the wardrobe, etc. You can also install the "Base" on the ceiling or wall first, then buckle the "Camera" on the "Base" and by rotating it about 40 . The screen rotation function in APP is necessary when you install CP7 on the ceiling.
Security Pan/Tilt Camera
4MP Super HD, Videos with more details
CP7 adopts 4MP image sensors, outputs 4MP 1/4 2560*1440 1/4 HD videos, reduces noise and captures more details.
Cover Every Corner of Your Home in Super HD
High speed pan/tilt design enables flexible rotation in all directions. CP7 covers 360 horizontally and 155 vertically (90 up, 65 down) which leaves zero blind zones at all.
Human Shape Detection for Safety Protection
Based on AI deep learning algorithms, CP7 can detect human shape and other motion. It recognizes the movement accurately and captures suspicious status automatically, and the resulting alarms will be sent to your mobile in real time.
Patrol with one click
You can set the pan/tilt partol locations via the TDSEE App,and the camera rotates cyclically according to the preset location to patrol the area.
Auto Targeting and Tracking
Based on the AI machine vision algorithms, the "Smart Tracking" can automatically tracks the movements and store the video.
Active Light and Sound Alarms for Enhanced Defense
When intrusion is detected during the alert period, a sound and white flashing light alarm will be triggered to warn illegal intruders. At the same time, the alarm message will be sent to your mobile.
Two-Way Audio Easy Communication Anytime & Anywhere
Real-time full-duplex two-way audio communication function enables you to chat with your family anytime and anywhere, bringing the most affectionate greetings to your beloved.
Customize your voice alerts
You can customize 3 personalized audio message for shop greeting or theft warning
Dual Enhanced Connection
The built-in dedicated antennas increase Wi-Fi performance by 30% and video is still smooth after passing through 2 walls.
Two Storage Options
The video can be stored in local Micro SD card and cloud storage. Even a vandal accident happens to your devices, you can still retrieve videos based on cloud recording.
Protect Your Privacy
Encrypted data transmission. It uses AES128-bit super encryption to ensure data transmission security
Support Desktop, Ceiling and Wall Mounting
The product is delivered with a seperated "Base". The camera can be directly placed on the desktop, or the top of the wardrobe, etc. You can also install the "Base" on the ceiling or wall first, then buckle the "Camera" on the "Base" and by rotating it about 40 . The screen rotation function in APP is necessary when you install CP7 on the ceiling.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| PTZ control |
 |
| Auto-tracking |
|
| Auto pan mode |
|
| Auto patrol mode |
|
| Wide Dynamic Range (WDR) |
|
| Day/night mode |
|
| Alarm input/output |
|
| Remote viewing |
|
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Infrared (IR) cut-off filter |
|
| Certification | CE, RoHs, FCC, RCM |
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/Wall/Desk |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators |
|
| Camera | |
| Camera pan control |
|
| Camera tilt control |
|
| Field of view (FOV) angle | 360° |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 155° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 155° |
| Lens system | |
| Number of lenses The number of lenses installed in the device. | 1 |
| Auto focus Device focusing a camera or other piece of equipment automatically. |
|
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 4 mm |
| Focus adjustment | 2.2 |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 12 m |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2560 x 1440 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 4 MP |
| Video formats supported The type of video formats that can be used by this device. | H.265 |
| Video compression formats | H.265 |
| Video recording Recording moving visual images. |
|
| Noise reduction |
|
| Noise reduction technology | 3D noise reduction |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Audio system System used to play music or speech. | 2-way |
| Audio system full duplex |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 150 Mbit/s |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
 |
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 128 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Management features | |
| Reset button |
|
| Power | |
| Power source type What the power source is. | DC |
| DC output voltage | 9 |
| DC output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 3 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 88 mm |
| Depth The distance from the front to the back of something. | 88 mm |
| Height The measurement of the product from head to foot or from base to top. | 103 mm |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| SKU | 591206 |
| MPN | CP7 |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tendacn.com/ |
