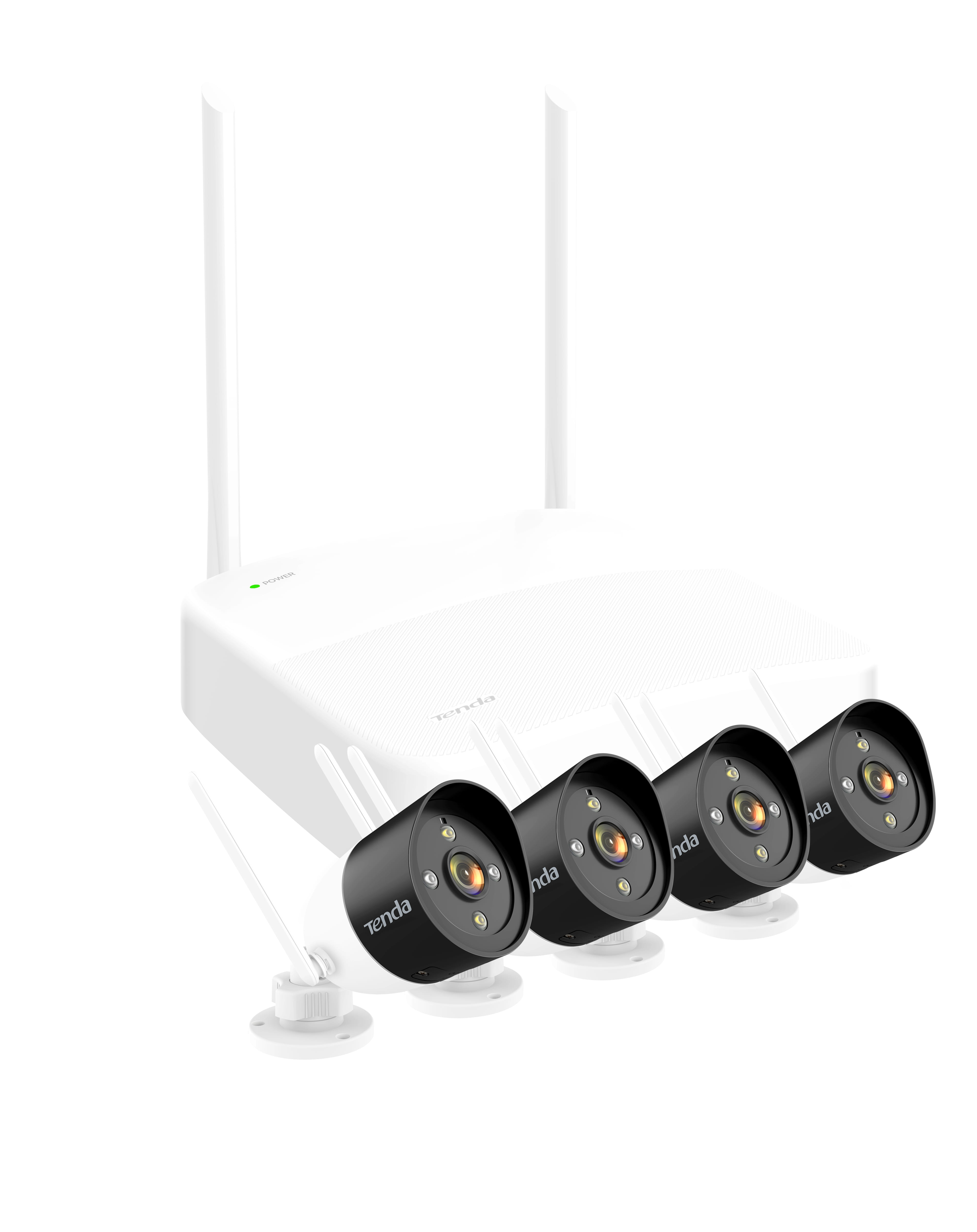

Tenda K4W-3TC, Wired & Wireless, Bullet, Wi-Fi/RJ-45, Outdoor, 4 mm, 86.1 Deg
Connection with Wire-free
Easy Monitoring and Networking
The Network Video Recorder and cameras adopt Wi-Fi connections, which free you from laying Ethernet cables, make it easy to install and extend, save your time, energy and money.
Wider Coverage and Stronger
Through-wall Capability
The router-level independent Wi-Fi chip, dual high gain antennas and Tenda's professional wireless transmission technology boosts stable and strong signal. It is able to produce clear and smooth image when the Wi-Fi signal covers a radius of 200m in an open environment or passes through 3 walls indoors.
No More Complicate Settings
After being powered on, the NVR automatically search, find and add cameras, the convenient and fast networking requires no manual operation.
High Pixel HD Video Recordings
Clear and Full Details of the Video
The upgraded 3MP (2304 -1296) HD camera captures clear and delicate monitoring image, bringing more details and a brand-new visual experience.
S-motion Detection and Target Recognition
Accurate Alarm and Less Harassment
Based on deep learning image identification technology, the cameras accurately recognize figure movement.
Non-human targets are filtered, thus greatly improving alarm accuracy.
Dual spotlights and Dual Infrared Lights
Clear and Colorful Even at Night
Equipped with two high-power spotlights and two IR lights, and high sensitive image sensors, your night vision is now lit up and in full-color. There are three available night vision modes: Smart Mode, Full-color Mode, and Black & White Mode.
Sound and Light Alarm Deter Intruders
When intrusion is detected during the alarming period, a sound and white flashing light alarm will be triggered to warn illegal intruders. At the same time, the alarm message will be sent to the TDSEE App to promote security.
View Videos on Your Mobile Phone at Any Time
Fully Control of Abnormal Status
You can view the video on your mobile phone anytime and anywhere, and feel at ease when you away from home. Alarm messages are pushed in time, you can control abnormal status in real time.
Easy Monitoring and Networking
The Network Video Recorder and cameras adopt Wi-Fi connections, which free you from laying Ethernet cables, make it easy to install and extend, save your time, energy and money.
Wider Coverage and Stronger
Through-wall Capability
The router-level independent Wi-Fi chip, dual high gain antennas and Tenda's professional wireless transmission technology boosts stable and strong signal. It is able to produce clear and smooth image when the Wi-Fi signal covers a radius of 200m in an open environment or passes through 3 walls indoors.
No More Complicate Settings
After being powered on, the NVR automatically search, find and add cameras, the convenient and fast networking requires no manual operation.
High Pixel HD Video Recordings
Clear and Full Details of the Video
The upgraded 3MP (2304 -1296) HD camera captures clear and delicate monitoring image, bringing more details and a brand-new visual experience.
S-motion Detection and Target Recognition
Accurate Alarm and Less Harassment
Based on deep learning image identification technology, the cameras accurately recognize figure movement.
Non-human targets are filtered, thus greatly improving alarm accuracy.
Dual spotlights and Dual Infrared Lights
Clear and Colorful Even at Night
Equipped with two high-power spotlights and two IR lights, and high sensitive image sensors, your night vision is now lit up and in full-color. There are three available night vision modes: Smart Mode, Full-color Mode, and Black & White Mode.
Sound and Light Alarm Deter Intruders
When intrusion is detected during the alarming period, a sound and white flashing light alarm will be triggered to warn illegal intruders. At the same time, the alarm message will be sent to the TDSEE App to promote security.
View Videos on Your Mobile Phone at Any Time
Fully Control of Abnormal Status
You can view the video on your mobile phone anytime and anywhere, and feel at ease when you away from home. Alarm messages are pushed in time, you can control abnormal status in real time.
| Camera | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Camera included This product includes a camera. |
 |
| Colour The main colour of the product. |
|
| Surveillance camera form factor Design of the surveillance (security) camera. | Bullet |
| Built-in microphone Microphone that is found inside the product. |
|
| Camera interface The place where the camera connects to other devices e.g. USB port. | Wi-Fi/RJ-45 |
| Heat function This product has a mode to produce heat. |
 |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Fixed focal length | 4 mm |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 86.1° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 46° |
| Viewing angle, diagonal | 104° |
| Night mode |
|
| Rotating Capability to rotate device. |
|
| Night vision distance | 30 m |
| Number of illumination LEDs | 2 |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.7 mm (1 / 2.7") |
| LED type | IR |
| Camera resolution Amount of data measured in pixels that the product captures to form the image | 2304 x 1296 pixels |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Supported resolutions | 2304 ×1296, 1920 × 1080, 1280 × 720, 640 × 360, 352 × 288 |
| Recorder | |
| Recorder included The product includes a recorder. |
|
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 4 channels |
| Storage media type Type of storage medium, like flash, hard disk drive, etc. | Not available |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA III |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 1 |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, IPv4, RTSP, UDP, NTP, DHCP |
| LED indicators |
|
| Maximum HDD capacity | 10000 GB |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Playback resolutions supported | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 GHz |
| Wi-Fi data rate (max) | 144 Mbit/s |
| Technical details | |
| Video compression formats | H.264,H.265 |
| Reset button |
|
| Certification | CCC, SRRC, CE, FCC, RoHs |
| Power | |
| Power source type What the power source is. | DC |
| DC output voltage | 12 |
| DC output current | 2 A |
| Weight & dimensions | |
| Camera width | 17.5 cm |
| Camera depth | 7.2 cm |
| Camera height | 7.2 cm |
| Camera weight | 226 g |
| Recorder width | 20 cm |
| Recorder depth | 20 cm |
| Recorder height | 4.8 cm |
| Recorder weight | 510 g |
| Packaging content | |
| Mounting kit |
|
| Power supply included There is a power supply with this product. |
|
| Mouse included A mouse is included with this product. |
|
| Quick installation guide |
|
| SKU | 553714 |
| MPN | K4W-3TC |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tendacn.com/ |
