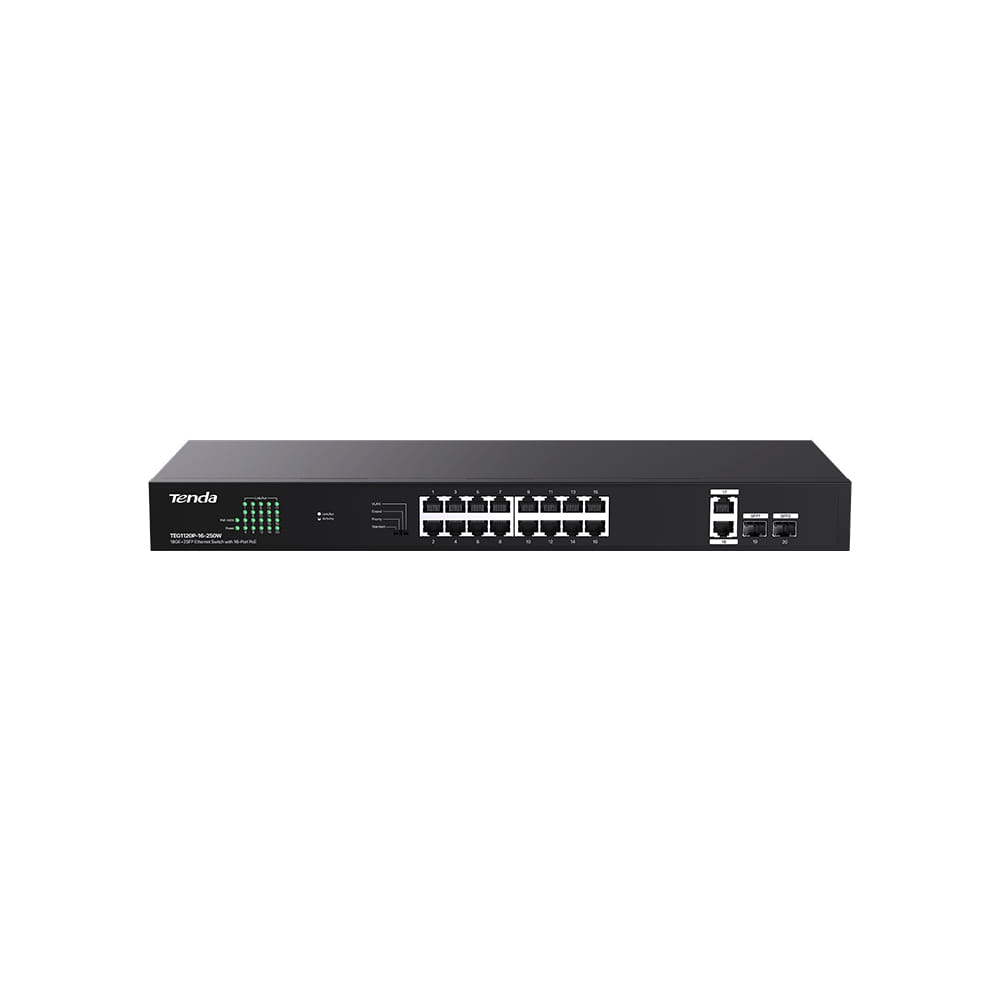

Tenda TEG1120P-16-250W, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, Wall mountable
High speed network transmission, Experience extreme smoothness
Full gigabit ports , 40 Gbps non-blocking line speed forwarding, mprove the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
GE and SFP Uplink Ports, Easier HD Monitoring
With two gigabit uplink port and two gigabit uplink optical fiber port, easily complete low-cost remote networking.
Smart PoE Power Supply, Stable Transmission
Providing 16 100/1000M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 230W, and of a single port is 30W. It can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.
4 Modes for More Scenarios, One-key To Change Smart and Easy
The switch supports 4 working modes of Standard, VLAN, Priority and Extend, realizing flexible network deployment in complex cases with lowered cost.
Standard Mode
All ports can communicate with each other. It can be used as a common non-management PoE switch.
Priority Mode
Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
Extend Mode
The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.
VLAN Mode
Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
Standard 19-inch metal body design
Quick and easy Internet settings, simple enough for you to set up office networking? 19-inch body design, and support desktop, wall and rack mounting.
6KV Excellent Lightning Protection
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
Full gigabit ports , 40 Gbps non-blocking line speed forwarding, mprove the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
GE and SFP Uplink Ports, Easier HD Monitoring
With two gigabit uplink port and two gigabit uplink optical fiber port, easily complete low-cost remote networking.
Smart PoE Power Supply, Stable Transmission
Providing 16 100/1000M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 230W, and of a single port is 30W. It can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.
4 Modes for More Scenarios, One-key To Change Smart and Easy
The switch supports 4 working modes of Standard, VLAN, Priority and Extend, realizing flexible network deployment in complex cases with lowered cost.
Standard Mode
All ports can communicate with each other. It can be used as a common non-management PoE switch.
Priority Mode
Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
Extend Mode
The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.
VLAN Mode
Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
Standard 19-inch metal body design
Quick and easy Internet settings, simple enough for you to set up office networking? 19-inch body design, and support desktop, wall and rack mounting.
6KV Excellent Lightning Protection
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 18 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 40 Gbit/s |
| Forwarding rate | 29.8 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Store-and-forward |
 |
| Packet buffer memory | 4 MB |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 250 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 230 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 178 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Sustainability | |
| Sustainability compliance |
|
| SKU | 817092 |
| MPN | TEG1120P-16-250W |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Product Use | General |
