Tenda O8, 433 Mbit/s, 433 Mbit/s, 10,100 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, 80 MHz, 11a 6Mbps -95dBm 1.5dBm 11n MCS7 HT20 -72dBm 1.5dBm 11ac MCS9 HT80 -64dBm 1.5dBm

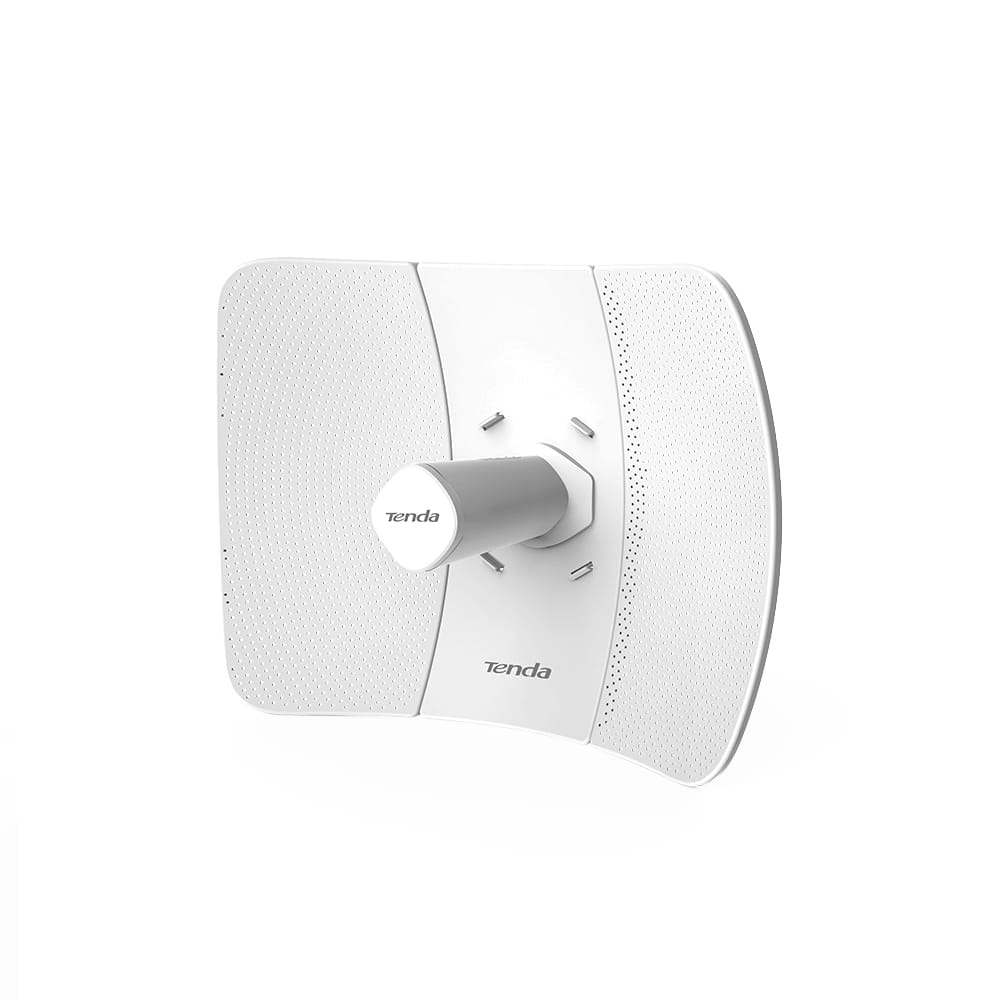

O8 5GHz 23dBi 11ac Outdoor CPE is designed to PtP and PtMP solutions for private ISP wireless connectivity, CCTV surveillance and data transmission. It features with 23dBi directional vertical polarization antenna to provide an efficient way to pick up and maintain a stable long-distance connectivity up to 20km. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup.
20+km transmission Range
O8 adopts of the independent power amplifier and 23dBi vertical polarization directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 20km.
6000V Surge Protection Design
O8 adopts of 6000V ethernet port surge protection design, It can be more robust in the thunder season
Easy to Assemble and Install
O8 adopts of three-axis alignment, it is easy to assemble in seconds no tools needed. Only a single screw driver is required for pole-mounting.
Channel shift to avoid interferrence
O8 provides the Channel Shift feature to offset the central frequency 5MHz upper. It can avoid interference from nearby AP and deliver higher throughput.
CPE Assistant-Centralized Management Platform
O8 equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - CPE Assistant. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using CPE Assistant.
20+km transmission Range
O8 adopts of the independent power amplifier and 23dBi vertical polarization directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 20km.
6000V Surge Protection Design
O8 adopts of 6000V ethernet port surge protection design, It can be more robust in the thunder season
Easy to Assemble and Install
O8 adopts of three-axis alignment, it is easy to assemble in seconds no tools needed. Only a single screw driver is required for pole-mounting.
Channel shift to avoid interferrence
O8 provides the Channel Shift feature to offset the central frequency 5MHz upper. It can avoid interference from nearby AP and deliver higher throughput.
CPE Assistant-Centralized Management Platform
O8 equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - CPE Assistant. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using CPE Assistant.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
 |
| 6 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 433 Mbit/s |
| Maximum data transfer rate (5 GHz) | 433 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Channel bandwidth | 80 MHz |
| Wi-Fi Multimedia (WMM)/(WME) |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Receiver sensitivity | 11a 6Mbps -95dBm±1.5dBm 11n MCS7 HT20 -72dBm±1.5dBm 11ac MCS9 HT80 -64dBm±1.5dBm |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2-PSK |
| Service Set Identifier (SSID) features | Hidden SSID |
| VPN support | L2TP PPTP |
| Protocols | |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Management features | |
| Firmware upgradeable |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Output voltage | 9 - 35 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5.5 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65 |
| Reset button |
|
| LED indicators | LAN, PoE |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antennas quantity | 1 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 23 dBi |
| Polarization | Vertical polarization |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 391.5 mm |
| Depth The distance from the front to the back of something. | 280 mm |
| Height The measurement of the product from head to foot or from base to top. | 223 mm |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| AC adapter included |
|
| PoE adapter included |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| SKU | 692041 |
| MPN | O8 |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tendacn.com/ |
