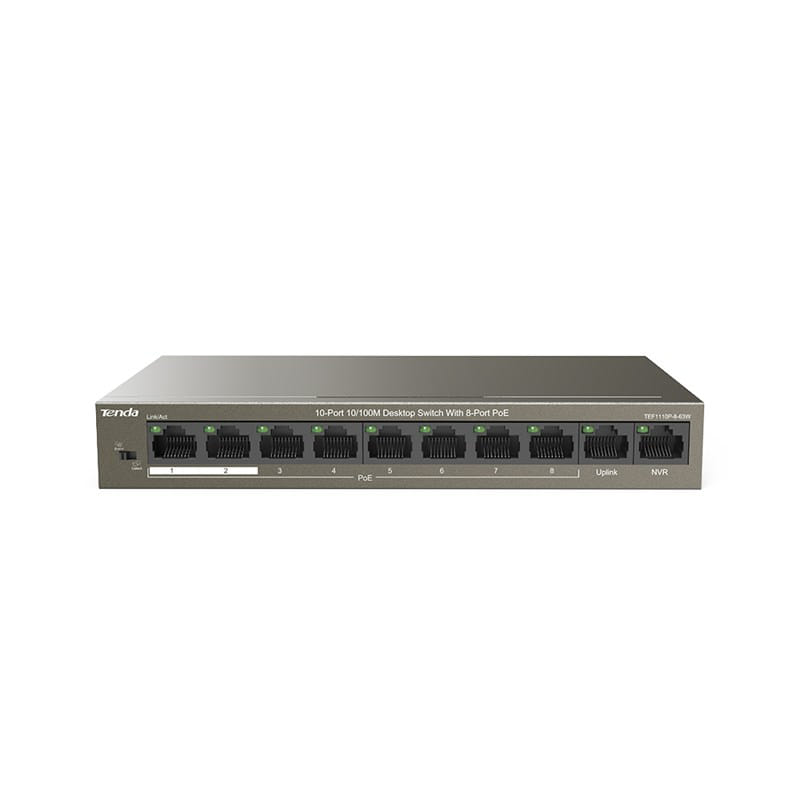

Tenda TEF1110P-8-63W, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)
TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by Tenda. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. Featured with extend mode, One-key VLAN and QoS functions, TEF1110P-8-63W is a ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.
Dual uplink port, more convenient for connecting Router and NVR
TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports that can connect with Router & NVR. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 58W, and 30 W for a single port. TEF1110P-8-63W is an ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.
Up to 250 meters long distance transmission under the Extend Mode?beyond hundred meters transfer limitation
Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1110P-8-63W can support 250 meters data transmission under the Extend mode, which can save the cost of your project with less devices used.
Excellent lightning Protection
TEF1106P-4-63W supports professional lightning protection of 6KV for uplink ports & 4KV for power, which can protect the switch from the inductive lightning strike coming from the thunderstorm weather.
QoS Priority design makes the key video data to be prioritized
1-2 ports support QoS Priority function, and it will prioritize them when meeting network congestion, which can ensure the network stable and fluent transmission of the surveillance video without breaking up.
What's Special for TEF1110P-8-63W : One-key Port VLAN Setup
With Extend mode on, port 1-8 are isolated from each other, but can still communicate with the 2 uplink ports. These function can enable the switch to isolate broadcast storm, and improve LAN security and data transmission.
Dual uplink port, more convenient for connecting Router and NVR
TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports that can connect with Router & NVR. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 58W, and 30 W for a single port. TEF1110P-8-63W is an ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.
Up to 250 meters long distance transmission under the Extend Mode?beyond hundred meters transfer limitation
Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1110P-8-63W can support 250 meters data transmission under the Extend mode, which can save the cost of your project with less devices used.
Excellent lightning Protection
TEF1106P-4-63W supports professional lightning protection of 6KV for uplink ports & 4KV for power, which can protect the switch from the inductive lightning strike coming from the thunderstorm weather.
QoS Priority design makes the key video data to be prioritized
1-2 ports support QoS Priority function, and it will prioritize them when meeting network congestion, which can ensure the network stable and fluent transmission of the surveillance video without breaking up.
What's Special for TEF1110P-8-63W : One-key Port VLAN Setup
With Extend mode on, port 1-8 are isolated from each other, but can still communicate with the 2 uplink ports. These function can enable the switch to isolate broadcast storm, and improve LAN security and data transmission.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Quality of Service (QoS) support |
 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Fast Ethernet (10/100) |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| MAC address auto-learning supported |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 1.6 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 1000 entries |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators | Activity, Link, Power |
| Power | |
| DC input voltage | 51 V |
| Input current | 1.25 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 63 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 177.5 mm |
| Depth The distance from the front to the back of something. | 104 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 758561 |
| MPN | TEF1110P-8-63W |
| Brand | Tenda |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tendacn.com/ |
