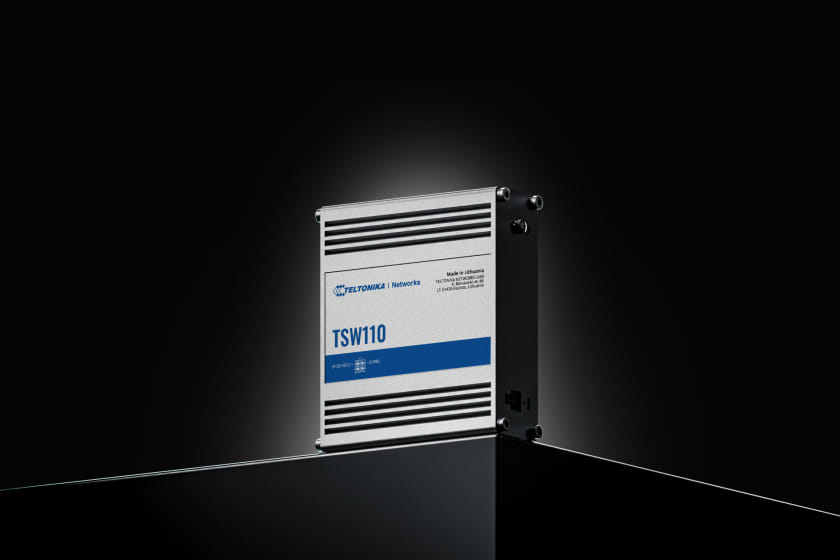

Teltonika TSW110, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
L2 UNMANAGED SWITCH
TSW110 is an unmanaged layer 2 switch. This tiny but rugged professional device enables industrial high bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9 30 V).
GIGABIT ETHERNET
5 x Gigabit Ethernet with speeds up to 1000 Mbps
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
TEMPERATURE
Operating temperature from 40 Deg C to 75 Deg C
TSW110 is an unmanaged layer 2 switch. This tiny but rugged professional device enables industrial high bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9 30 V).
GIGABIT ETHERNET
5 x Gigabit Ethernet with speeds up to 1000 Mbps
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
TEMPERATURE
Operating temperature from 40 Deg C to 75 Deg C
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 5 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 10 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 2000 entries |
| Packet buffer memory | 0.128 MB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Metallic |
| Housing material What the casing of the product is made of. | Aluminium |
| LED indicators |
|
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP30 |
| DIN rail mounting |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| DC input voltage | 30 V |
| Input voltage The voltage (V) which is required to power the product. | 9 - 30 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.8 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100 mm |
| Depth The distance from the front to the back of something. | 85 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 227 g |
| Packaging data | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Package type The type of product package e.g. box. | Box |
| SKU | 722774 |
| MPN | TSW110000020 |
| Brand | Teltonika |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://teltonika-networks.com/ |
