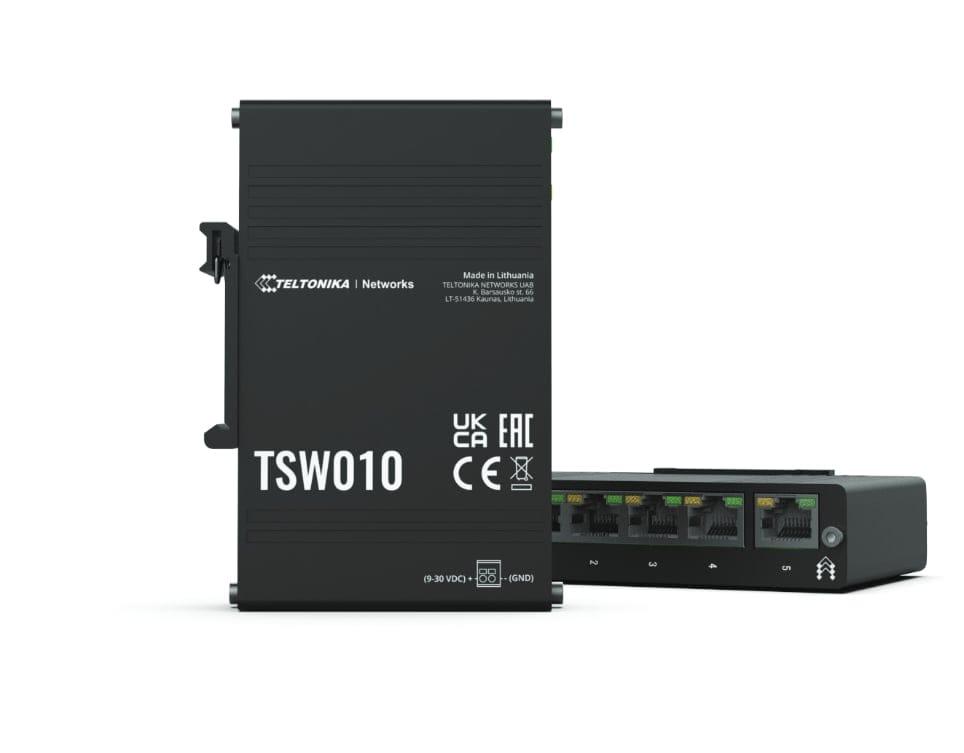

Teltonika TSW010 DIN Rain Switch 5 x, Fast Ethernet (10/100), Power over Ethernet (PoE)
THE CHALLENGE
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 5 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 1 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 2000 entries |
| Jumbo frames support |
|
| Jumbo frames | 2048 |
| Packet buffer memory | 0.128 MB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Aluminium |
| LED indicators |
|
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP30 |
| DIN rail mounting |
|
| Certification | CE, REACH, RoHS, WEEE UKCA, FCC, IC, CB, RCM |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC/PoE |
| Input voltage The voltage (V) which is required to power the product. | 9 - 30 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 0.3 W |
| Power consumption (max) The maximum amount of power used by the device. | 0.9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) ports quantity | 1 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 113.1 mm |
| Depth The distance from the front to the back of something. | 80.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 27.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 146.5 g |
| SKU | 771587 |
| MPN | TSW010 |
| Brand | Teltonika |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://teltonika-networks.com/ |
