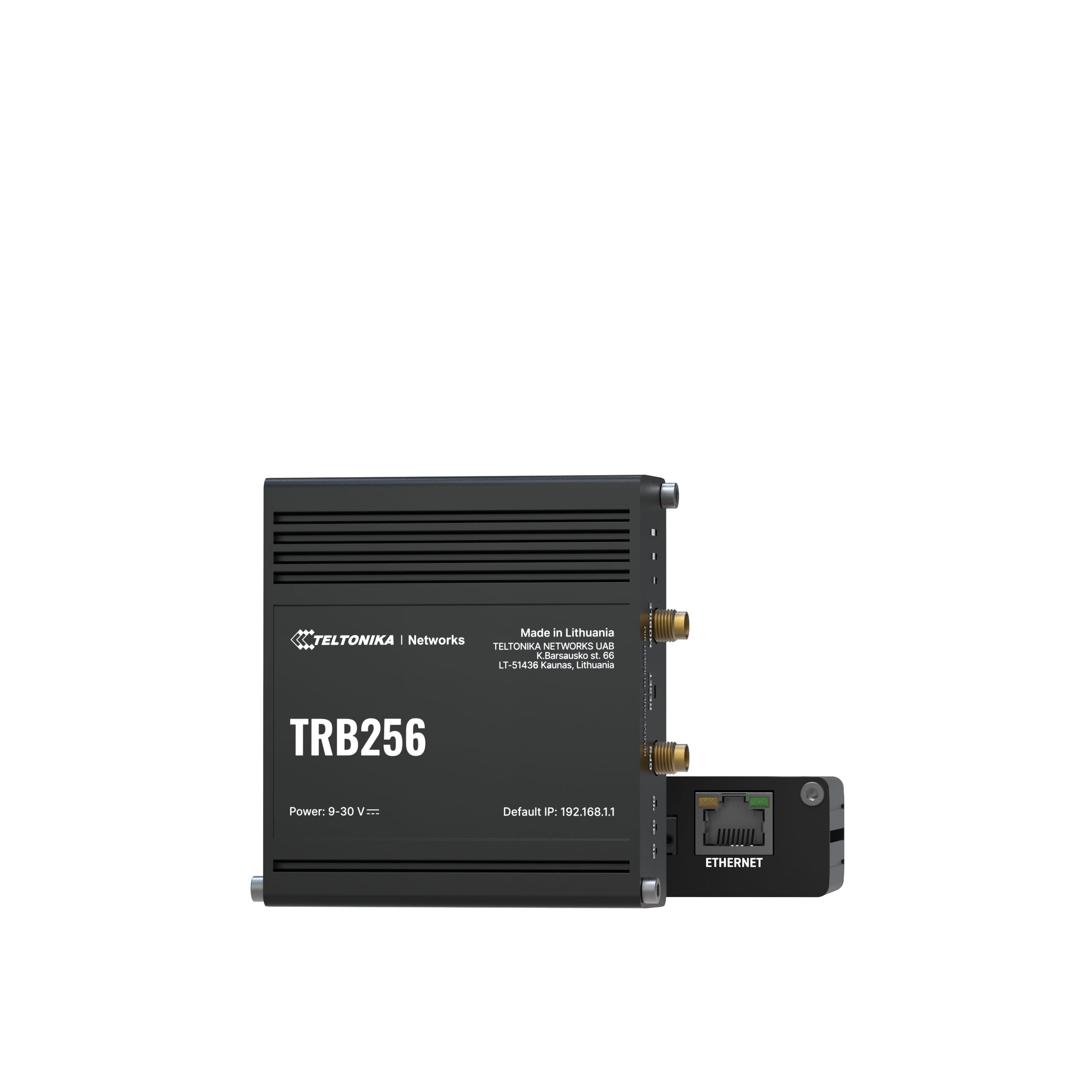

The TRB256 is an industrial 4G LTE NB-IoT gateway designed to be applied to a broad range of IoT solutions. The device is equipped with multiple WAN interfaces, such as I/Os, RS232, RS485, and an Ethernet port, additionally boasting dual SIM functionality for continuous connectivity. This industrial-grade gateway also supports the 450 MHz frequency band, offering superior LTE signal penetration compared to standard frequencies, making it an optimal choice for a diverse range of M2M applications.
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Enclosure material | Aluminium |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP30 |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | R-SMA |
| Performance | |
| Control display unit |
 |
| Protocols | |
| Management protocols | WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| DMZ support |
 |
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Dynamic DNS (DDNS) |
|
| Security | |
| Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication. |
|
| Authentication method | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| DoS attack prevention |
|
| Network address translation (NAT) |
|
| Ports & interfaces | |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| SIM card slot Whether the device features a SIM card slot. |
|
| SIM card type | MiniSIM |
| Number of simultaneous SIM cards | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| WAN connection A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. | Ethernet (RJ-45) |
| Serial interface type | RS-232, RS-485 |
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Quality of Service (QoS) support |
|
| Universal Plug and Play (UPnP) |
|
| Reset button |
|
| Power | |
| DC input voltage | 9 - 30 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 83 mm |
| Depth The distance from the front to the back of something. | 74.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 165 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018 |
| SKU | 813402 |
| MPN | TRB256 |
| Brand | Teltonika |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://teltonika-networks.com/ |
