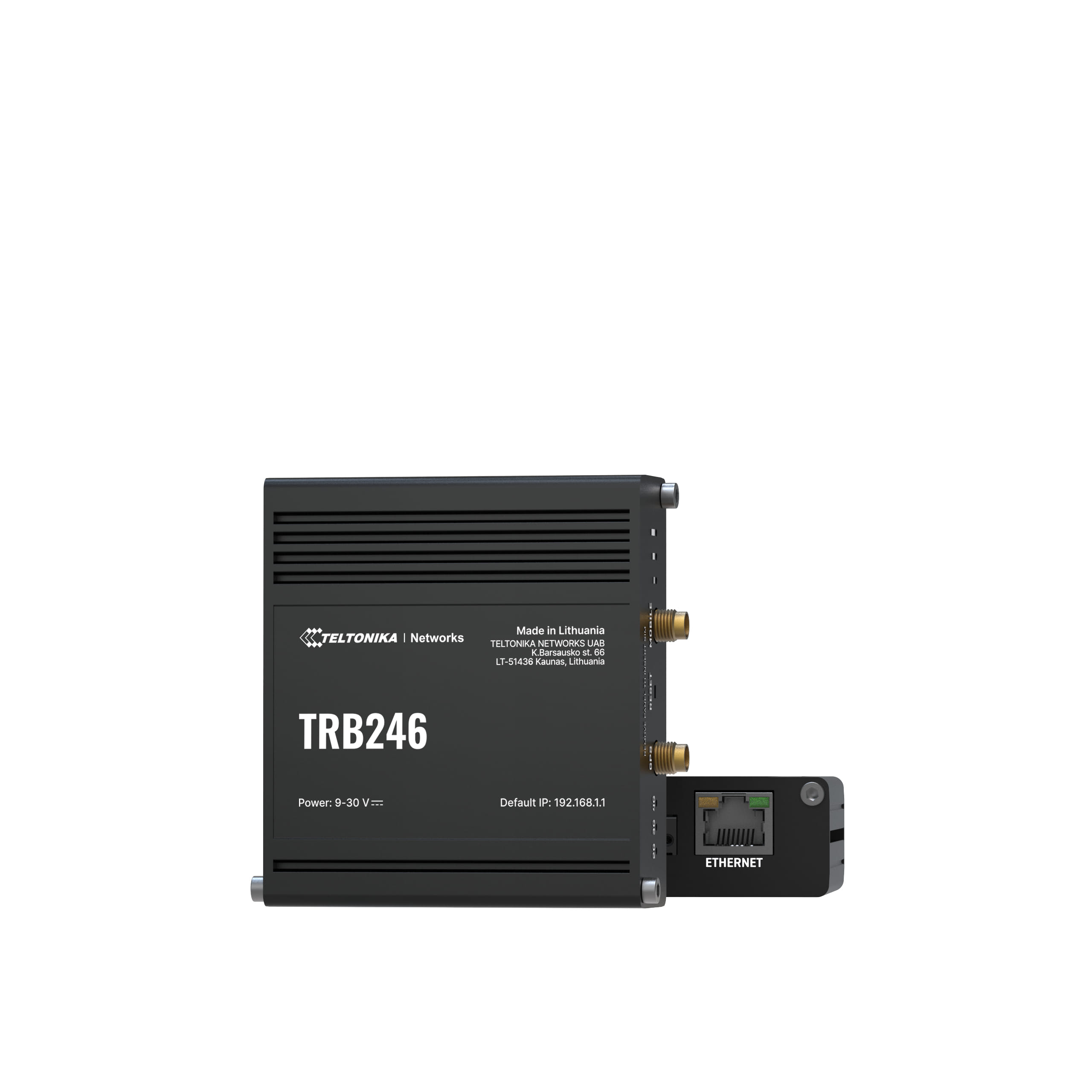

Teltonika TRB246 Industrial IoT Gateway 4G/LTE

Design
Device type Type or category of the device.	Cellular network gateway
Product colour The colour e.g. red, blue, green, black, white.	Black
Housing material What the casing of the product is made of.	Aluminium
Mounting What size the mounting head of the product is, to couple it with a camera.	DIN-rail/Wall mounting
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Industrial
Suitable for indoor use
LED indicators	LAN, Power, Signal strength, Status

Ethernet LAN features
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Fast Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11e, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.

Wireless LAN features
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Mobile network
Data network Telecommunications network that allows computers to exchange data.	2G, 3G, 4G, LTE
Number of SIM cards	2
SIM interface	3 V
SIM card type	MiniSIM
Short Message Service (SMS)
Data transfer rate (LTE) (download)	150 Mbit/s
Data transfer rate (LTE) (upload)	50 Mbit/s

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Serial interface type	RS-232, RS-232/485
Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.	1

Serial interface
RS-232 signals	CTS, RTS, Rx, Tx
RS-485 signals	Data+, Data-, RDA-, RDB+

Security
DMZ support
Port forwarding

Certificates
Certification	CE, UKCA, RCM, CB, EAC, UCRF, WEEE

GPS Performance
Embedded GNSS
GLONASS
BeiDou
Galileo
Quasi-Zenith Satellite System (QZSS)

Performance
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	Mediatek
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	0.58 GHz
RAM capacity	0.128 GB
RAM type The type of RAM (random access memory) inside the device e.g. DDR3.	DDR2
Internal storage capacity The amount e.g of data which can be stored inside the device.	0.016 GB
Web-based management Using a website/web application to manage something.
GPS (satellite) Global Positioning System (GPS) is a space-based satellite navigation system that provides location and time information in all weather conditions, anywhere on or near the Earth where there is an unobstructed line of sight to four or more GPS satellites. The system provides critical capabilities to military, civil and commercial users around the world. It is maintained by the United States government and is freely accessible to anyone with a GPS receiver.
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	External
Antenna connector type The way in which the antenna is connected to the device e.g. coaxial.	SMA
Antennas quantity	2

Management features
Management platform	RMS

Power
Power source type What the power source is.	DC
Input voltage The voltage (V) which is required to power the product.	9 - 30 V
External power adapter

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 75 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	83 mm
Depth The distance from the front to the back of something.	74.2 mm
Height The measurement of the product from head to foot or from base to top.	25 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	165 g
