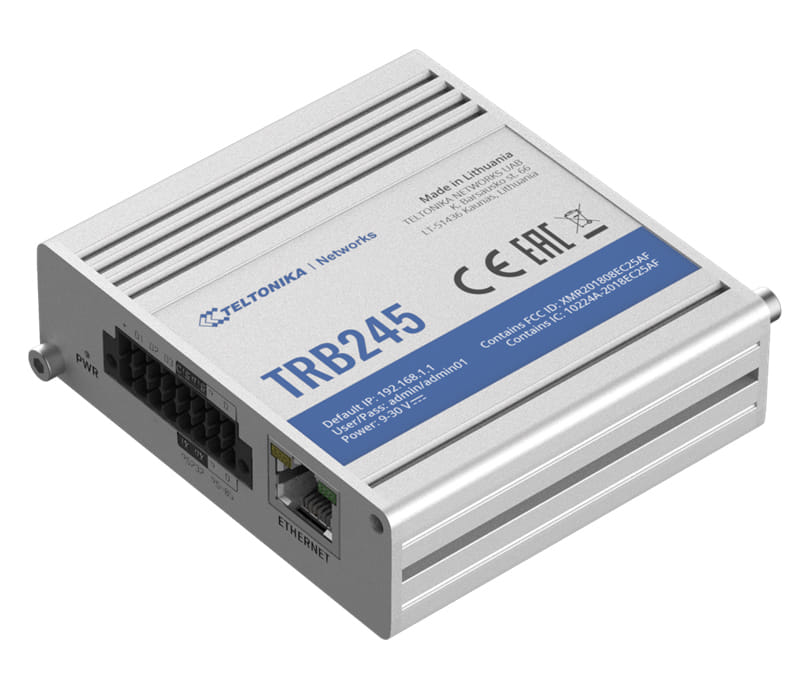

Teltonika TRB245 - Small and durable industrial LTE Cat 4 Gateway
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| LED indicators | Power |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | IEC 62368-1:2014, EN 50385:2017, EN 62232:2017 |
| Certification | CE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61000-4-3:2006 + A1:2008 + A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014 EN 61000-4-6:2014 EN 61000-4-11:2004 |
| Protocols | |
| Management protocols | SNMP |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned), SSH, DHCP, Telnet, MQTT (planned), Wake On Lan (WOL) (planned) |
| DMZ support |
 |
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Forwarding rate | 150 Mpps |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3u |
| Security | |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Network address translation (NAT) |
|
| Ports & interfaces | |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| SIM card slot Whether the device features a SIM card slot. |
|
| Console port | RS-232 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Serial interface type | RS-232/485 |
| Management features | |
| Quality of Service (QoS) support |
|
| Reset button |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 83 mm |
| Depth The distance from the front to the back of something. | 25 mm |
| Height The measurement of the product from head to foot or from base to top. | 74 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 165 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 682626 |
| MPN | TRB245 |
| Brand | Teltonika |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://teltonika-networks.com/ |
